Fireye MicroM Series - Mounting 45 UV5 Scanner; UV8 A Scanner; Mounting for High Temp. Applications; Alternate Standard Mounting

53


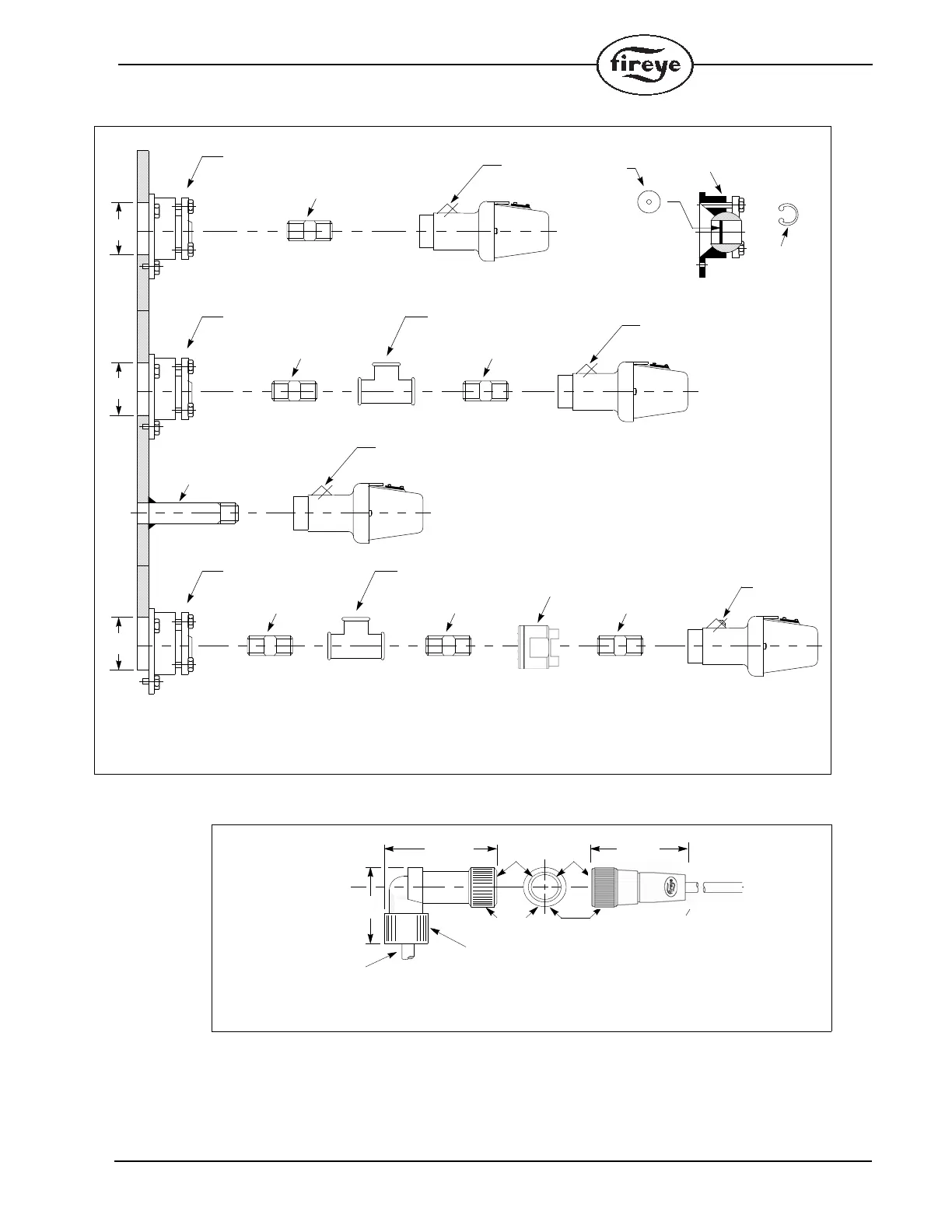

FIGURE 16. Mounting 45UV5 Scanner
FIGURE 17. UV8A Scanner
2.75”
(70)
#60-1664
1” SWIVEL MOUNT
#35-127
HEAT INSULATING NIPPLE
STANDARD MOUNTING
FOR TYPES OF SCANNERS
AIR ENTRY
(PURGE AND
COOLING)
#60-1664
1” SWIVEL MOUNT
#35-127
HEAT INSULATING NIPPLE
MOUNTING FOR HIGH TEMP. APPLICATIONS
PURGE AIR ENTRY
AIR/ENTRY
(PURGE ABD COOLING)
#35-127
HEAT INSULATING NIPPLE
1” SIGHT PIPE
(BY OTHERS)
AIR ENTRY
(PURGE AND
COOLING)
ALTERNATE STANDARD MOUNTING
(NOT ADJUSTABLE)
#60-1664
1” SWIVEL MOUNT
#35-127
HEAT INSULATING NIPPLE
MOUNTING FOR SPECIAL
APPLICATIONS — HIGH TEMP.
3/8” PLUG
(BY OTHERS)
AIR/ENTRY
(PURGE AND COOLING)
#35-127
HEAT INSULATING NIPPLE
#35-127
HEAT INSULATING NIPPLE
#60-1199-1, 2
SEALING COUPLING WITH QUARTZ
WINDOW. REQUIRED WHEN SCANNER
LENS IS EXPOSED TO EXCESSIVE
FURNACE OR WINDBOX PRESSURE
APERTURE
#53-121
#60-1664
1” SWIVEL MOUNT
RETAINER
#34-181
2.75”
(70)
2.75”
(70)
2 1/4”
(57.2mm)
UV1A3 3 FT. TC-ER CABLE
UV1A6 6 FT. TC-ER CABLE
1 1/2”
(38.1MM)
UV8A
1/2 X 14 ST.
PIPE
1 IN. DIA.
(25.4mm)
2.53”
(64.3mm)
SHIELDING OF 6 FT. (1830mm)
LEADS IS REQUIRED
.700 DIA. FITTING (17.8mm)
FOR WATER-TIGHT CONDUIT
WA RN I NG : The leads from the UV8A Scanner to the control must be shielded to prevent electrical
noise from generating a false flame signal to the control.
1.06 IN DIA
(27.0mm)
