Fireye MicroM Series - Mounting UV1 A;UV1 B Scanners; Standard Mounting; Mounting with Heat Insulating Nipple; Standard Mounting with Purging;Cooling Air

54


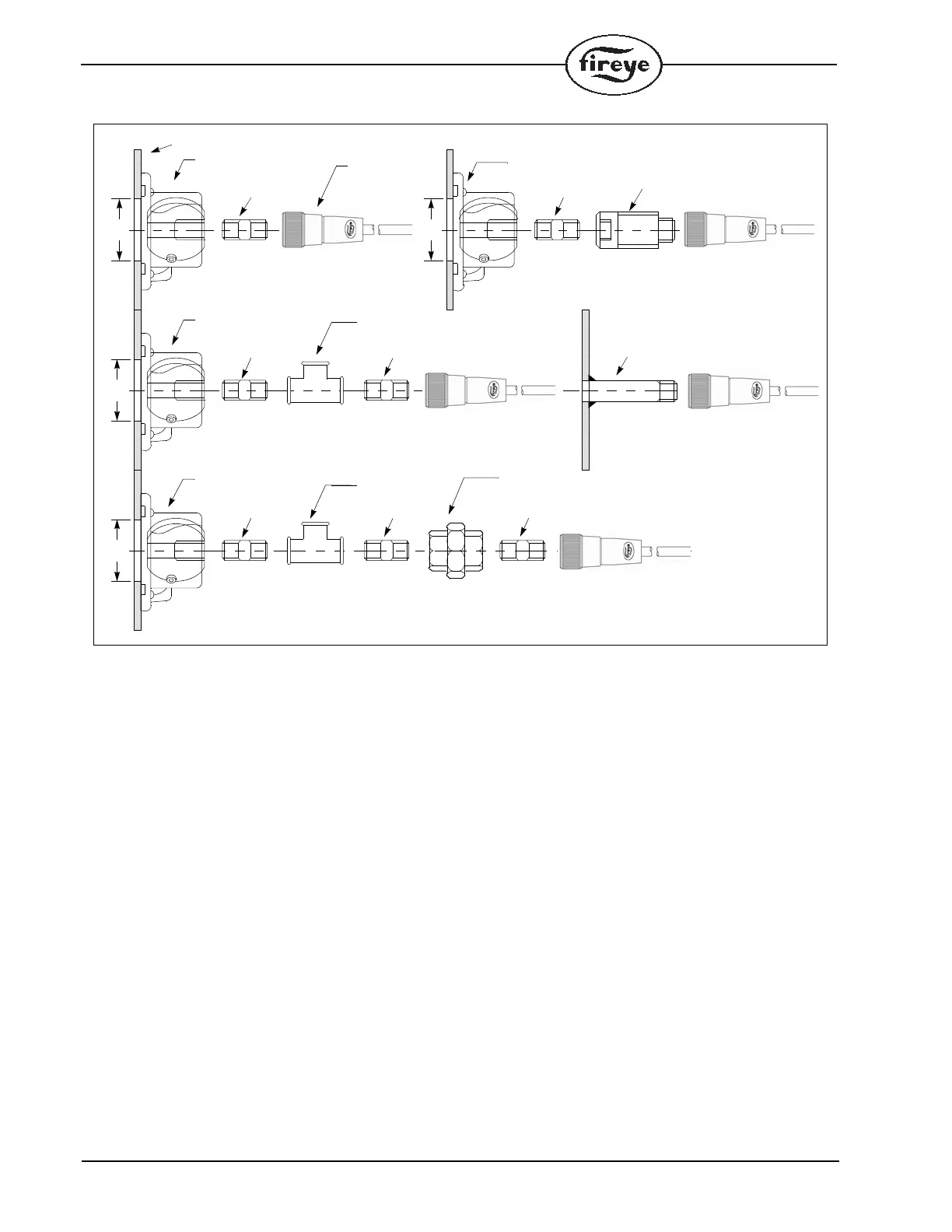

FIGURE 18. Mounting UV1A/UV1B Scanners
UNION COUPLING
#60-1257 WITH QUARTZ WINDOW
#60-1290 WITH QUARTZ LENS
2”
(51)
1/2” NIPPLE
HEAT INSULATOR
#35-69
1/2” SWIVEL MOUNT
#60-302
MOUNTING WITH HEAT INSULATING NIPPLE
1/2” NIPPLE
1/2” SWIVEL MOUNT
#60-302
STANDARD MOUNTING
BURNER FRONT PLATE
1/2” UV SCANNER
TYPE UV-1A
1/2” NIPPLE
1/2” SWIVEL MOUNT
#60-302
STANDARD MOUNTING WITH PURGING/COOLING AIR
1/2” NIPPLE 1/2” NIPPLE
TEE-PIECE
1/2” NIPPLE
1/2” SWIVEL MOUNT
#60-302
MOUNTING FOR EXCESSIVE FURNACE OR WINDBOX
PRESSURE WITH PURGING/COOLING AIR
1/2” NIPPLE
TEE-PIECE
1/2” NIPPLE
AIR/ENTRY
(PURGE ABD COOLING)
1/2” SIGHT PIPE
AIR/ENTRY
(PURGE AND COOLING)
2”
(51)
2”
(51)
2”
(51)
