Installation Instructions

Seite/Page 72 - Kaptitel/Chapter 5: Installation Instructions 16.1.15

5.7.1 Connection of the external radiator

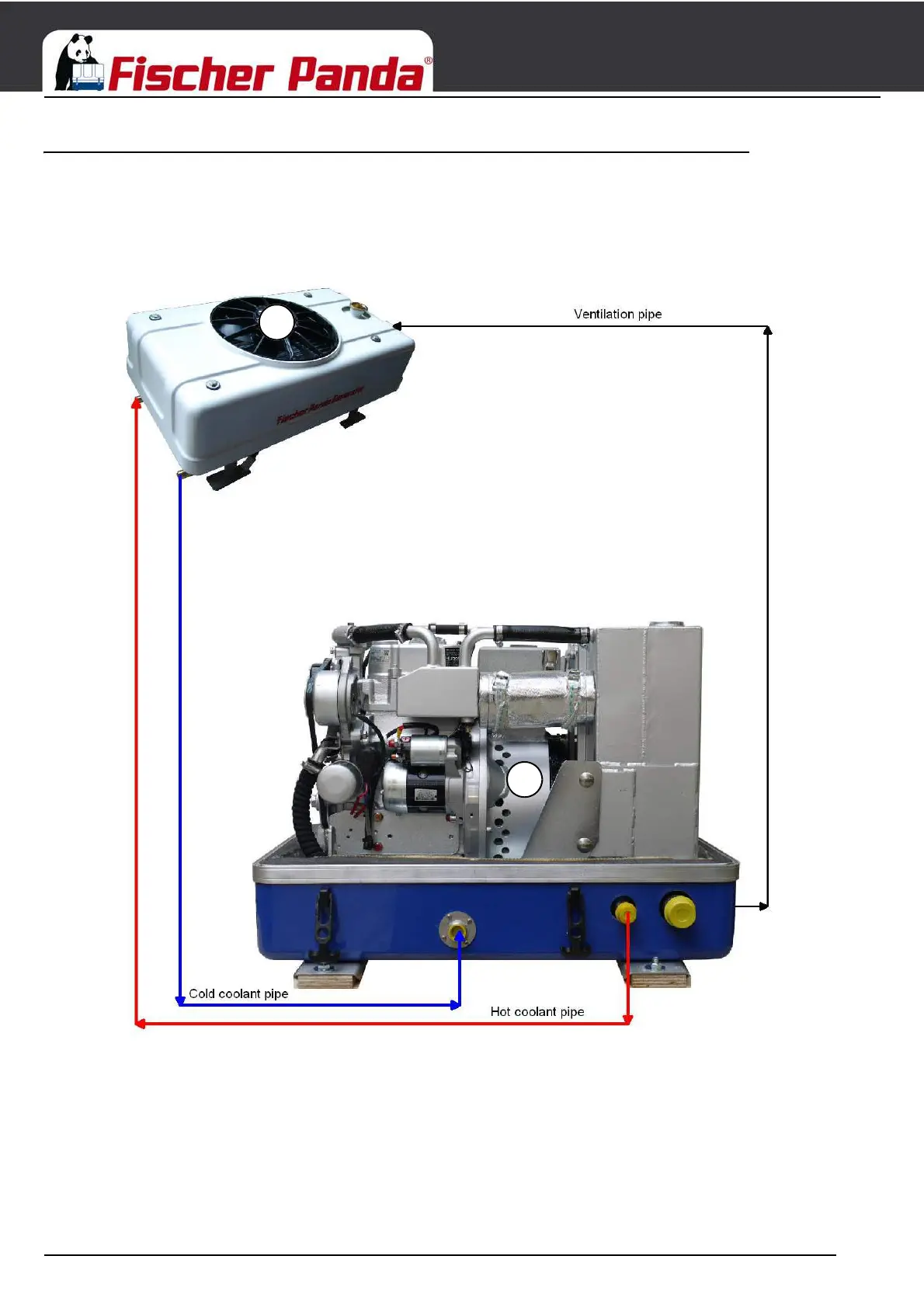

Fig. 5.7.1-1: Connection of the external radiator

1. Generator 2. External radiator
