Installation Instructions
Seite/Page 78 - Kaptitel/Chapter 5: Installation Instructions 16.1.15
5.9.3.2 Roof installation
Please note:
• Minimum distance to vehicle roof: 100 mm.
• Minimum distance to next vertical wall: 1/2 radiator width.
• Min. distance to gas exhaust (heat and dirt source): 500 mm.
• The max. permissible vehicle height must not be exceeded.
• Install warnings stating new vehicle height inside driver's cab.
• During operation, the exhaust flow must be uninhibited for at least 3 meters.

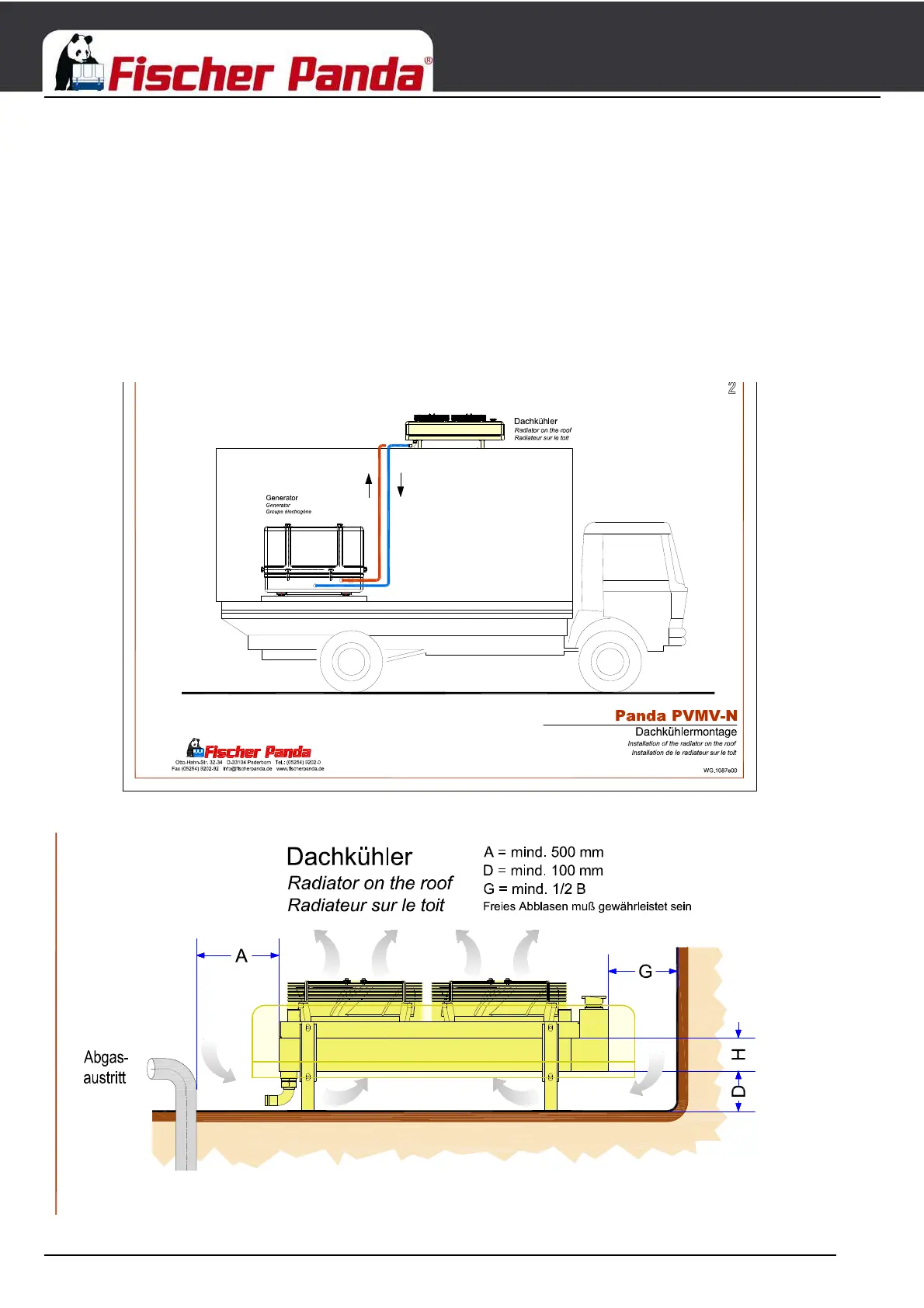

Fig. 5.9.3.2-1: Schematic: radiator, roof installation
Fig. 5.9.3.2-2: Schematic: radiator, roof installation
