C.5.2 Exhaust / water separator
In order to reduce the noise level of the generator unit to a minimum, an optional exhaust outlet
muffler can be mounted next to the thru-hull fitting. Additionally there is a component at Fischer
Panda, which acts as both an "exhaust goose neck", and water separator. With this "exhaust/
water separator" the cooling water is derived over a separate pipe. The exhaust noises emana-
ting from the exterior of the yacht are strongly decreased. Particularly the "water splash".
The water flow on the exhaust/water
separator unit has an inner diameter (ID)
of 30 mm. If the path from the water sepa-
rator to the raw water outlet is very short,
the hose can be further reduced to 1"
(25mm) ID.

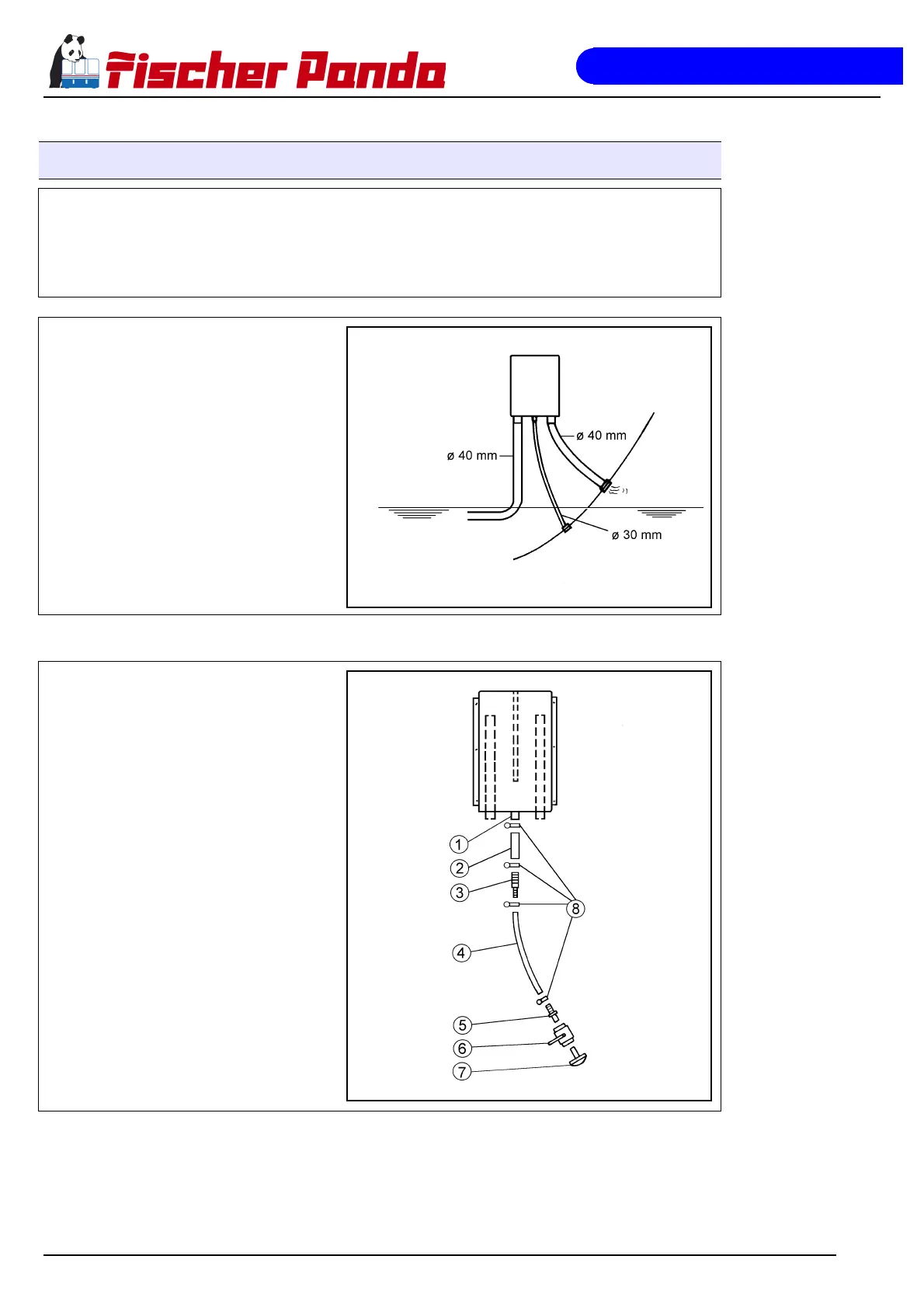

Fig. C.5.2-1: Water flow exhaust water separator
1. Raw water outlet ø 30mm
2. Hose connector ø 30mm
3. Reducer 30/20mm (if required)
4. Hose
5. Hose connector
6. Sea cock
7. Hull outlet
8. Hose Clips
Fig. C.5.2-2: Exhaust water separator
