Example for an error display after the generator was
stopped.
(Oil Pressure failed)

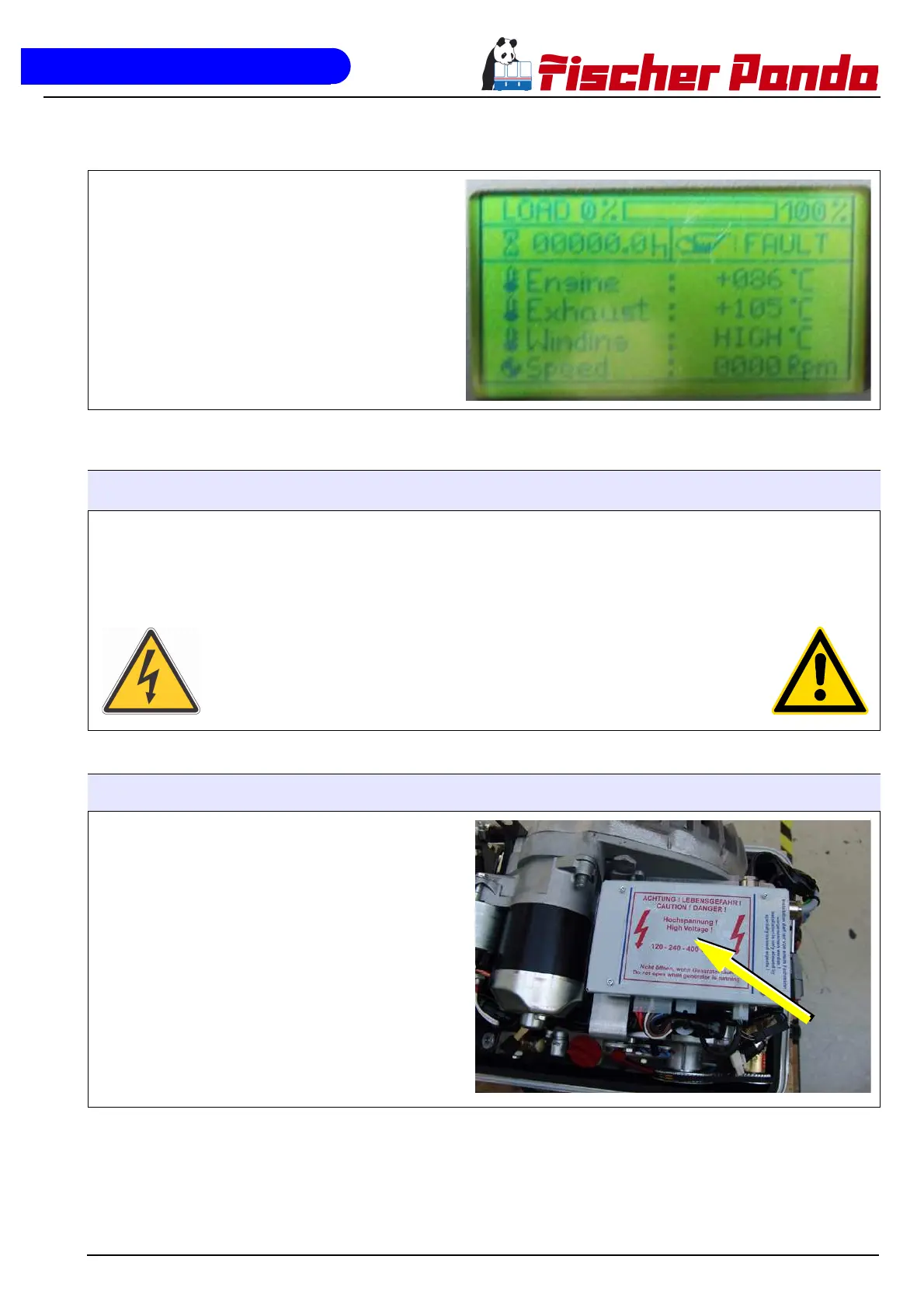

Fig. A.7-1: Display warning (oil pressure failed) - example
A.8 Electronic board
The iControl panel has an electronic board which is mounted at the Generator. This board controls all generator
functions.
The bord is in a box and contains self healing fuses and relais.
For safety reasons it is not allowed to open the box of the electronic board.
Inside there are up to450VAC. !!!DANGER TO LIFE.
Only special trained persons are allowed to change the board in case of an
error.
A.8.1 Location at the Panda i-series generator
Electronic board at the Panda 4000i PMS.
The location of the electronic board is depended on
the generator type and can vary.
Fig. A.8.1-1: Location of the electronic board
