Installation Instructions
16.1.09 Panda_6000i_System_eng_s01835.book.R01 - Chapter C: Installation Instructions Page 45
C.6.4 Position of the pre-filter with water separator
Additionally to the standard fine filter a
pre-filter with water separator must be
installed outside of the sound insulation
capsule in the fuel system line (not inclu-
ded in the delivery).

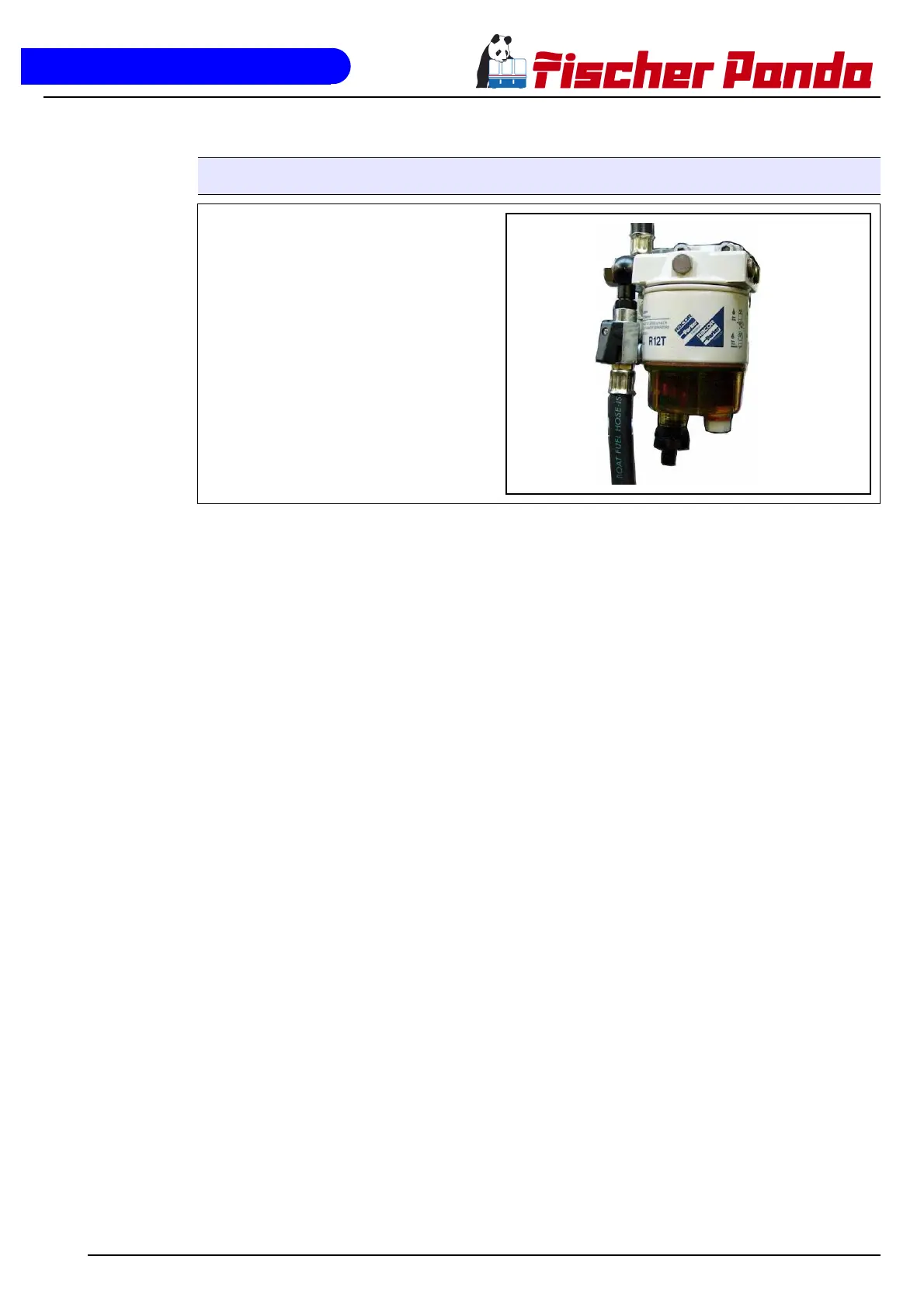

Fig. C.6.4-1: Pre-Filter with water separator
