Panda iControl
Panel_iControl_eng.fm Chapter A: Panda iControl - Page 83
Fischer Panda Datasheet
Note
Regarding to the open electric board the iControl panel has a protectrive class IP00.
Builded in a control board with a siutable seal (f.e. Sikaflex) IP66 can be reached.
A.3 Buttons and display of the iControl

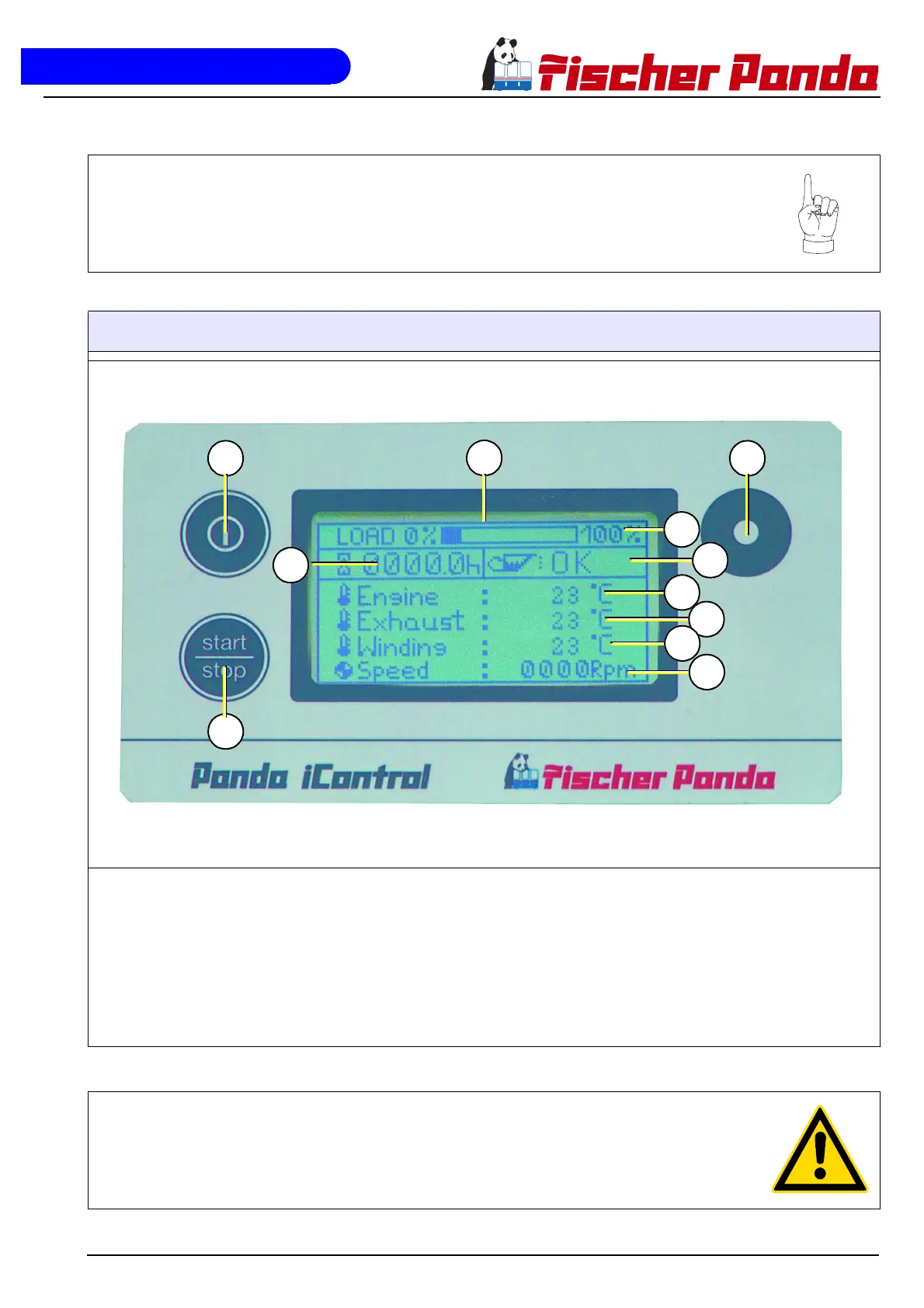

Fig. A.3-1: Buttons and diplay of the iControl
Warning! At the Electronic board is an voltage of 450V. Only special trained persons are
allowed to open the cover of the Electronic board. !!!DANGER TO LIVE!!!
1. Button „on/off“
2. Display
2a. Load indication in %
2b. Oil pressure indication „OK“ oder „Fault“
2c. Engine temp. indication
2d. Exhaust elbow temp. indication
2e. Stator Winding temp. indication
2f. Engine rpm indication
2g. Operation hours
3. Button „enter“
4. Button „start/stop“
