Fisher FIELDVUE DLC3010 User Manual

Instruction Manual
D102748X012
Configuration
October 2014
35

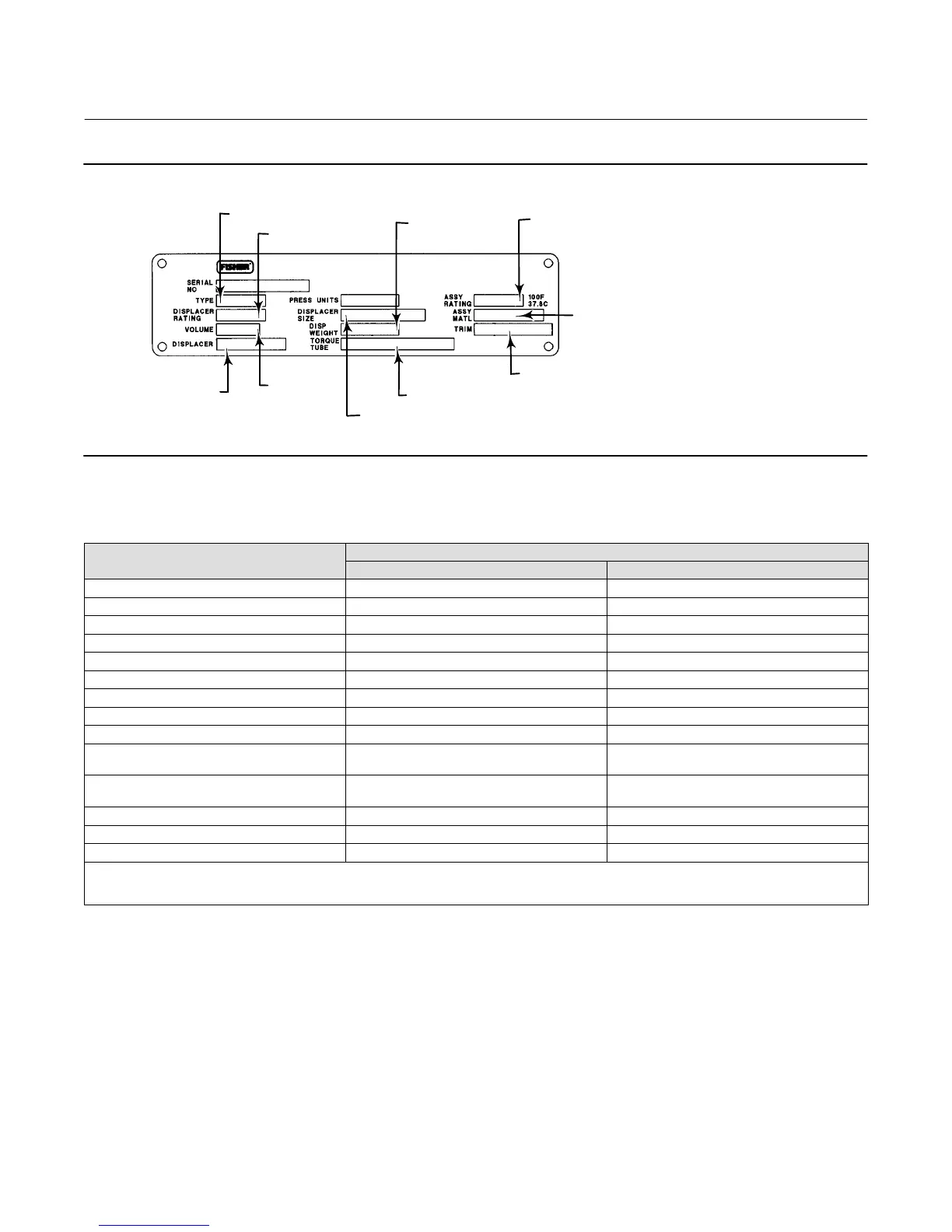

Figure 4‐1. Example Sensor Nameplate
DISPLACER
PRESSURE RATING
1500 PSI
103 CU‐IN
316 SST
249B
76543210
PSI
2 x 32 INCHES
4 3/4 LBS
K MONEL/STD
285/100 F
WCB STL
MONEL
DISPLACER
MATERIAL
DISPLACER
VOLUME
DISPLACER SIZE
(DIAMETER X LENGTH)
TORQUE TUBE MATERIAL
SENSOR TYPE
DISPLACER
WEIGHT
ASSEMBLY
PRESSURE RATING
ASSEMBLY MATERIAL
TRIM MATERIAL
23A1725‐E sht 1
E0366
Table 4‐1. Moment Arm (Driver Rod) Length
(1)
SENSOR TYPE
(2)
MOMENT ARM
mm Inch
249 203 8.01
249B 203 8.01
249BF 203 8.01
249BP 203 8.01
249C 169 6.64
249CP 169 6.64
249K 267 10.5
249L 229 9.01
249N 267 10.5
249P
(CL125-CL600)
203 8.01
249P
(CL900-CL2500)
229 9.01
249VS (Special)
(1)
See serial card See serial card
249VS (Std) 343 13.5
249W 203 8.01
1. Moment arm (driver rod) length is the perpendicular distance between the vertical centerline of the displacer and the horizontal centerline of the torque tube. See figure 4‐2. If you cannot
determine the driver rod length, contact your Emerson Process Management sales office and provide the serial number of the sensor.
2. This table applies to sensors with vertical displacers only. For sensor types not listed, or sensors with horizontal displacers, contact your Emerson Process Management sales office for the
driver rod length. For other manufacturers' sensors, see the installation instructions for that mounting.
1. Enter displacer length, weight, volume units and values, and moment arm length (in the same units chosen for
displacer length) when prompted.
2. Choose Instrument Mounting (left or right of displacer, refer to figure 2‐5).
3. Choose Torque Tube Material.
