Instruction Manual
D102748X012
Parts
October 2014
88

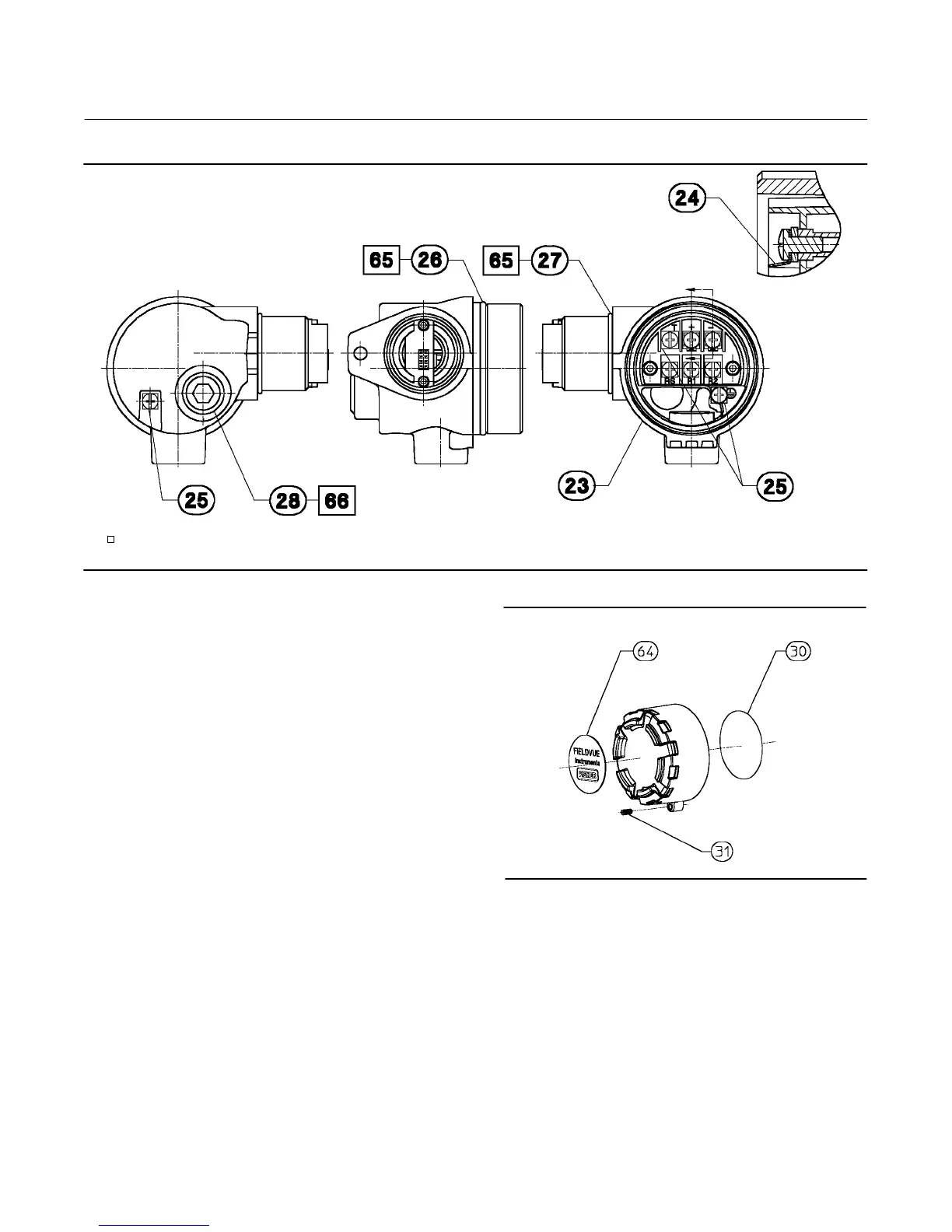

Figure 7‐3. Terminal Box Assembly
28B5740-B
APPLY LUBRICANT
SECTION A‐A
A
A
Key Description Part Number
Terminal Box Assembly
(figure 7‐3)
24 Test Terminal, 18‐8 SST (2 req'd)
(2)
25 Wire Retainer, 18‐8 SST (8 req'd)
(2)
26* O‐Ring, nitrile
(3)
1H8762X0012
27* O‐Ring, nitrile
(3)
10A8218X032
28 Pipe Plug, 18‐8 SST
65 Lubricant, Silicone (not furnished with instrument)
66 Anti‐Seize Sealant (not furnished with instrument)
Terminal Box Cover Assembly
(figure 7‐4)
30 Label, internal, plastic
31* Set Screw, hex socket, 18‐8 SST
(2)
64 Label, external
Figure 7‐4. Terminal Box Cover Assembly
28B5531‐B
*Recommended spare parts
2. Included in small hardware spare parts kit.
3. Included in spare O‐rings kit.
