Instruction Manual
D102748X012
Maintenance & Troubleshooting
October 2014
77
The digital level controller is designed with a dual‐compartment housing; one compartment contains the LCD meter
and Electronics Module; the other contains all wiring terminals and the communication receptacles. The LCD meter is
located in the compartment opposite the wiring terminals, as shown in figure 6‐2.

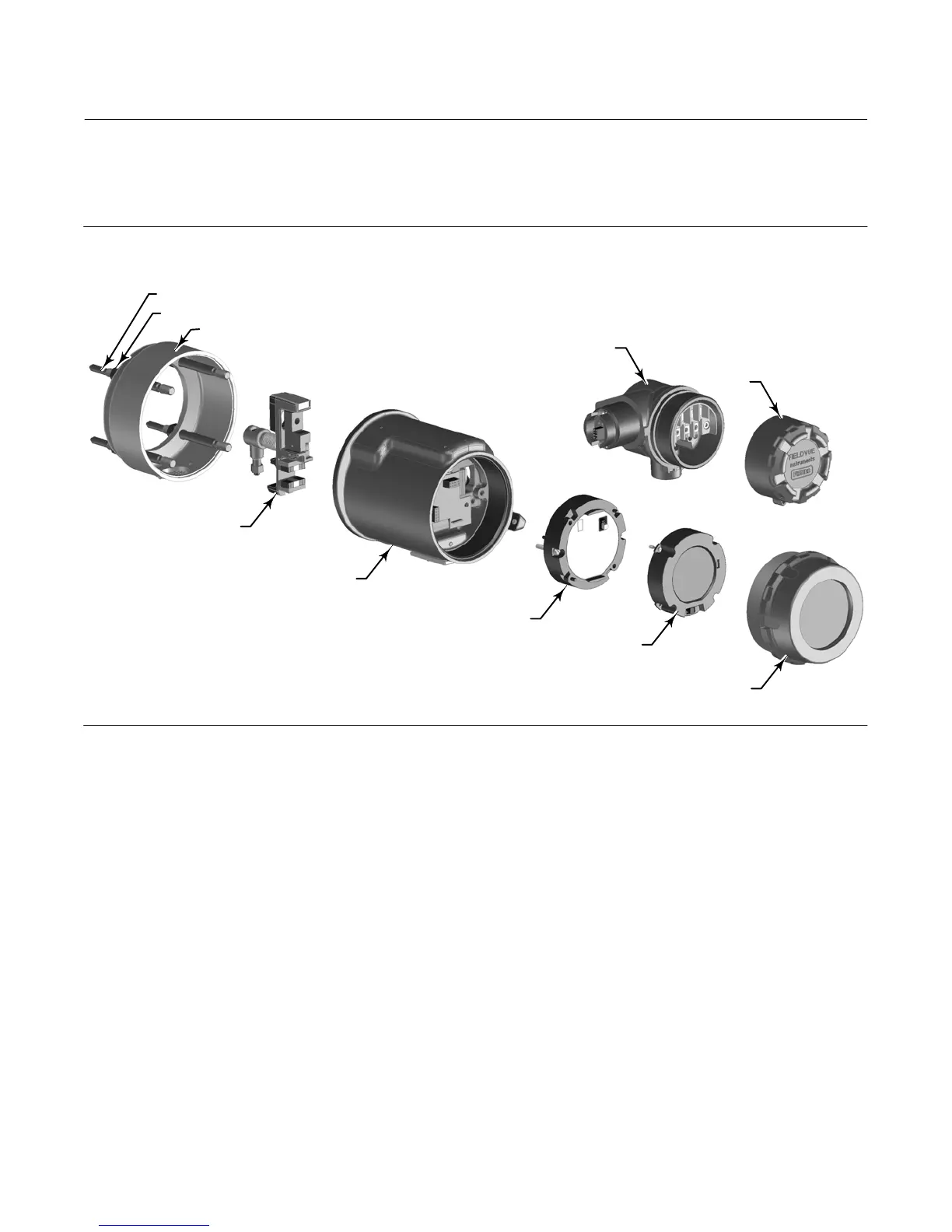

Figure 6‐2. DLC3010 Digital Level Controller Assembly
COVER
(KEY 3)
LCD METER
ASSEMBLY
(KEY 4)
ELECTRONICS
MODULE (KEY 2)
TRANSDUCER ASSEMBLY
TERMINAL BOX
(KEY 5)
TERMINAL BOX COVER
(KEY 6)
LEVER ASSEMBLY
ADAPTER RING (KEY 32)
HEX NUT (KEY 34)
STUD (KEY 33)
Removing the LCD Meter
Perform the following procedure to remove the LCD meter.
1. Disconnect power to the digital level controller.
2. Remove the cover from the transducer housing. In explosive atmospheres, do not remove the instrument cover
when the circuit is alive, unless in an intrinsically safe installation.
3. Loosen the two screws that anchor the LCD meter to the Electronics Module. These screws are captive and should
not be removed.
4. Firmly grasp the LCD meter and pull it straight away from the Electronics Module. Retain the six‐pin dual header for
later reinstallation.
Replacing the LCD Meter
Perform the following procedure to replace the LCD meter.
1. Verify that the interconnection header is in the six‐pin socket on the face of the Electronics Module. The longer set
of pins should be inserted in the Electronics Module socket.
2. Decide which direction to orient the meter. The meter can be rotated in 90‐degree increments for easy viewing.
Position one of the four six‐pin sockets on the back of the meter to accept the interconnection header, and insert
