Instruction Manual
D102748X012
Configuration
October 2014
48
If PV/Proc Temp or PV/% Range is selected, the display alternates every two seconds between the selected readings.
The meter also simultaneously displays the analog output signal using a percent of scale bar graph around the
perimeter of the display face as shown in figure 4‐6, no matter what display type is selected.

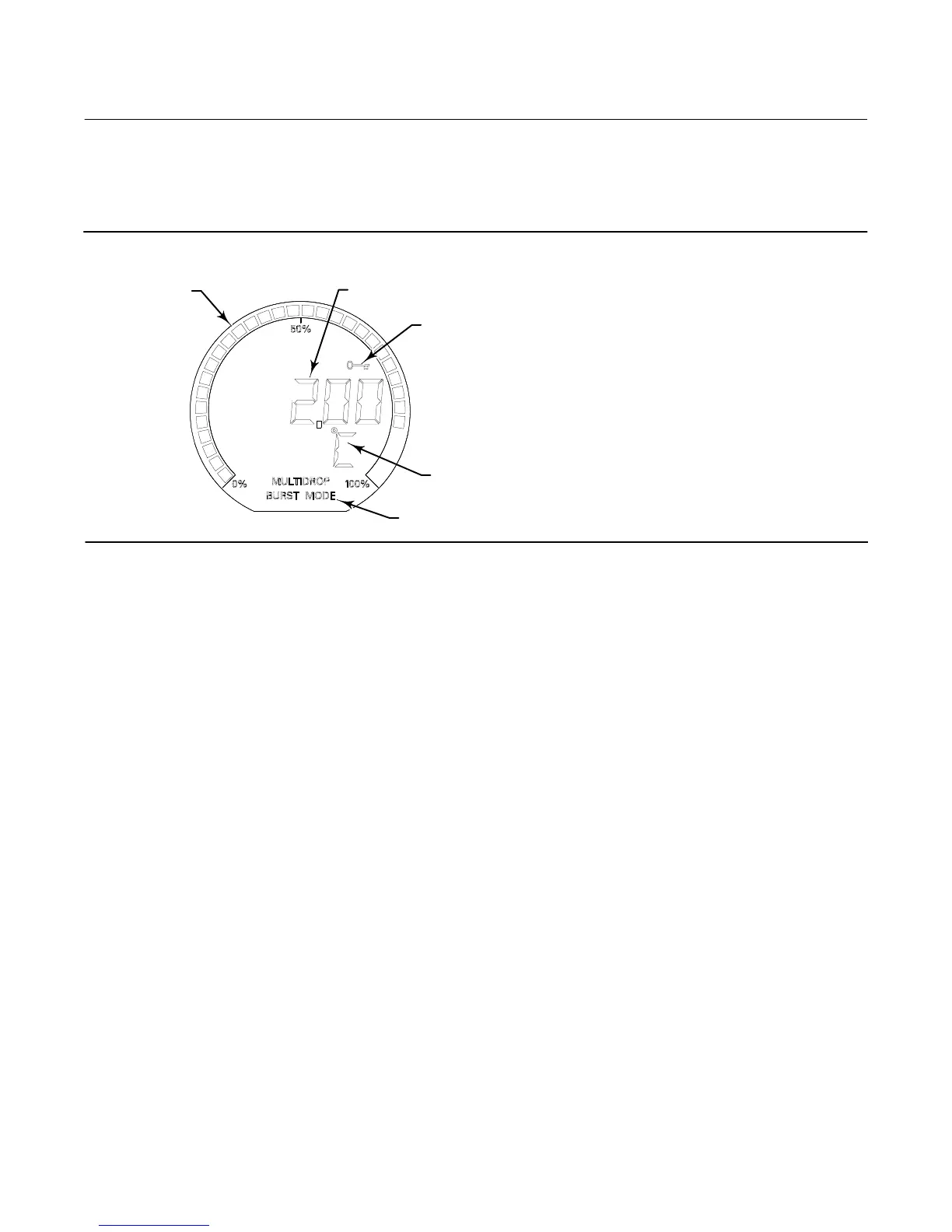

Figure 4‐6. LCD Meter Display
WHEN PRESENT,
INDICATES WRITES
DISABLED
PROCESS VARIABLE VALUE
MODE
PROCESS
VARIABLE UNITS
ANALOG OUTPUT
DISPLAY
E0371
After you have selected the desired meter settings, press SEND on the Field Communicator to download the meter
settings to the instrument.
