Fisher FIELDVUE DLC3010 User Manual

Instruction Manual
D102748X012
Parts
October 2014
90

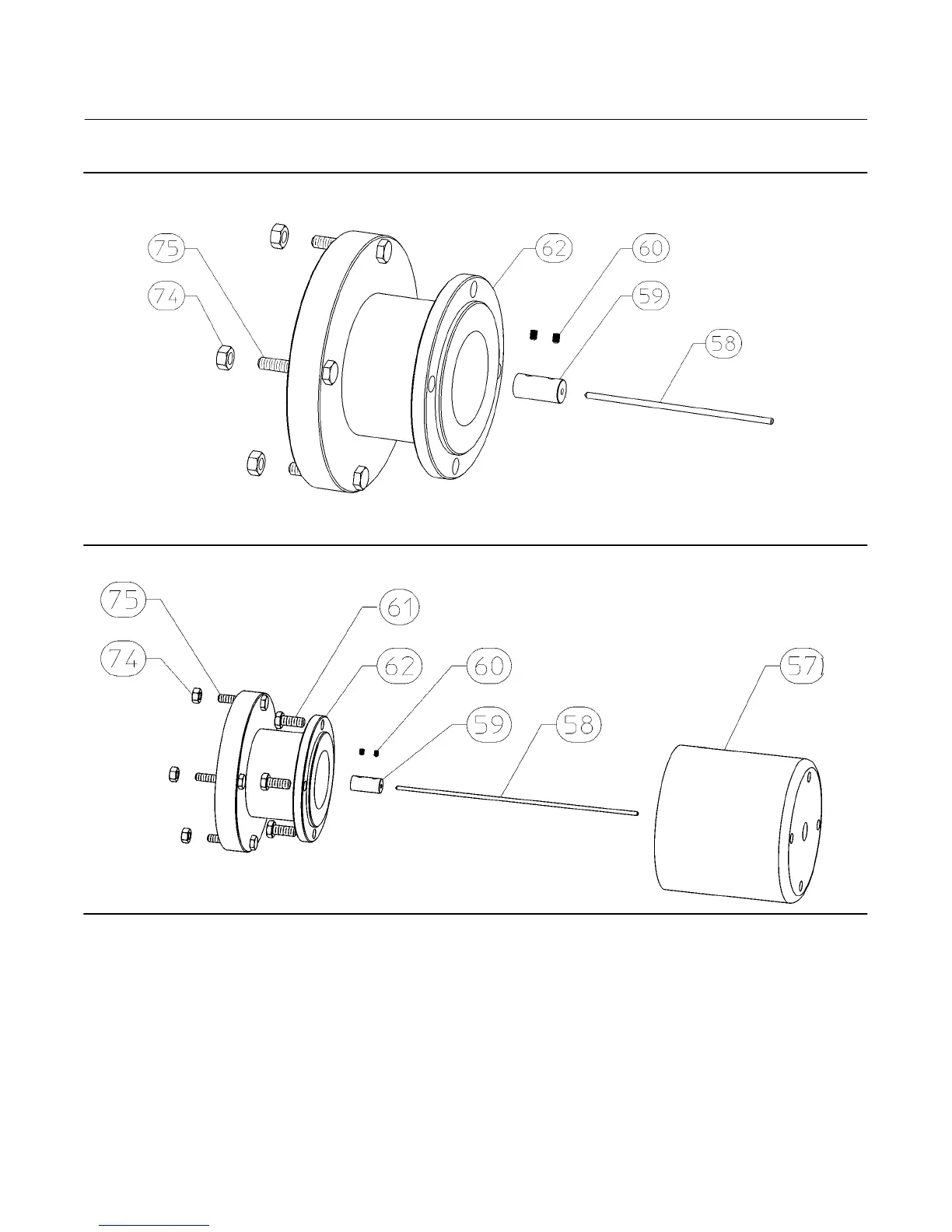

Figure 7‐6. Mounting Kit for Masoneilan 12200 and 12300 Sensor without Heat Insulator
29B8444‐A
Figure 7‐7. Mounting Kit for Masoneilan 12200 and 12300 Sensor with Heat Insulator
29B8445‐A
Key Description
12200 or 12300 without Heat Insulator
58 Shaft Extension N05500
59 Shaft Coupling, S30300
60 Hex Socket Screw (2 req'd)
62 Mounting Adaptor, A92024
74 Hex Nut, SST (4 req'd)
75 Hex Cap Screw, SST (4 req'd)
Key Description
12200 or 12300 with Heat Insulator
57 Heat Insulator, S30400
58 Shaft Extension, S31600
59 Shaft Coupling, S30300
61 Hex Cap Screw, SST (4 req'd)
60 Hex Socket Screw (2 req'd)
62 Mounting Adaptor, A92024
74 Hex Nut, SST (4 req'd)
75 Hex Cap Screw, SST (4 req'd)
78 Washer, plain (4 req'd) not shown
