Fisher FIELDVUE DVC2000

Parts
June 2017
Instruction Manual
D103176X012
51

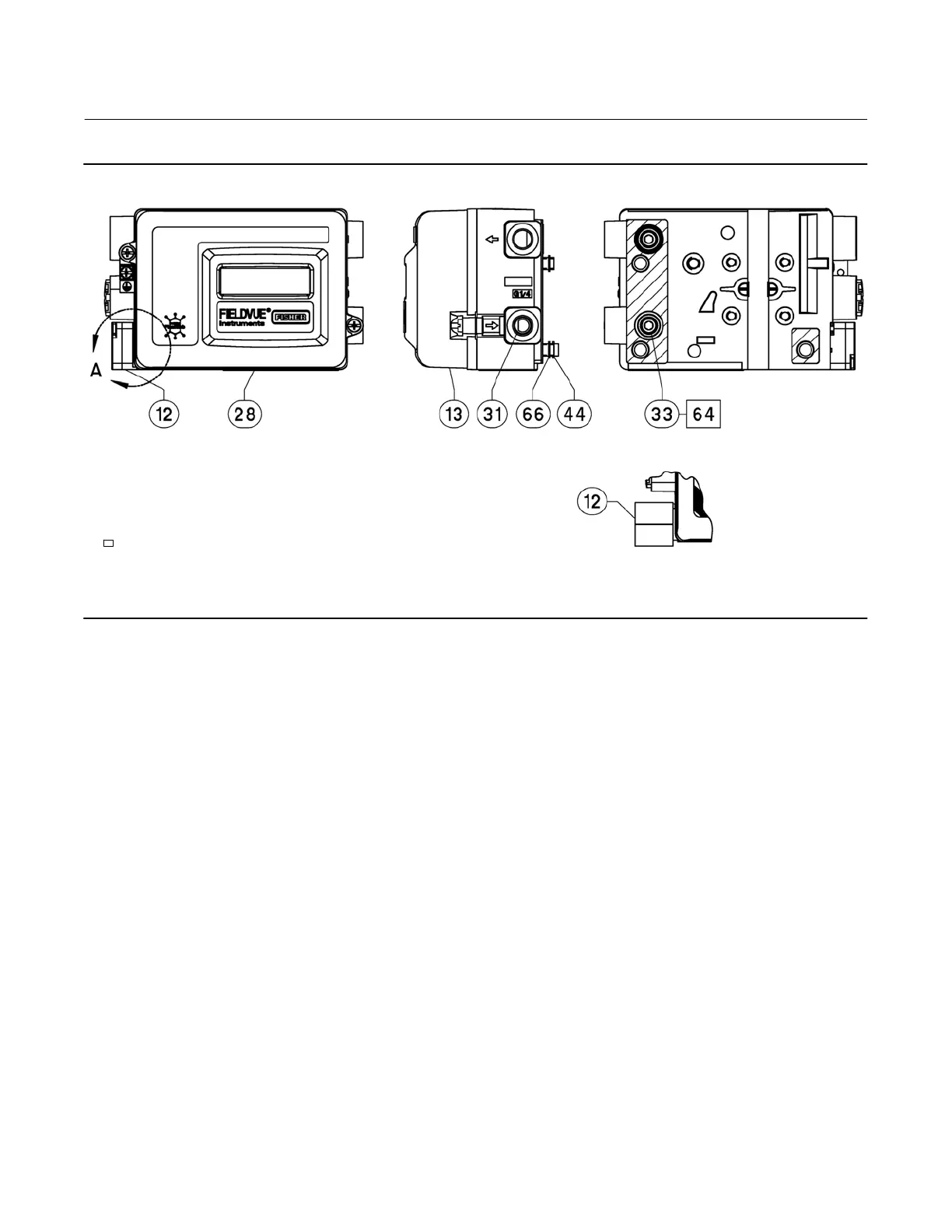

Figure 5‐1. FIELDVUE DVC2000 Digital Valve Controller Assembly, Housing A
APPLY LUBRICANT/SEALANT
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
VIEW A
PIPE AWAY VENT
GE13174-F, SHEET 1 OF 3
