Installation and maintenance instructions
Control equipment
Fitting cable trunking

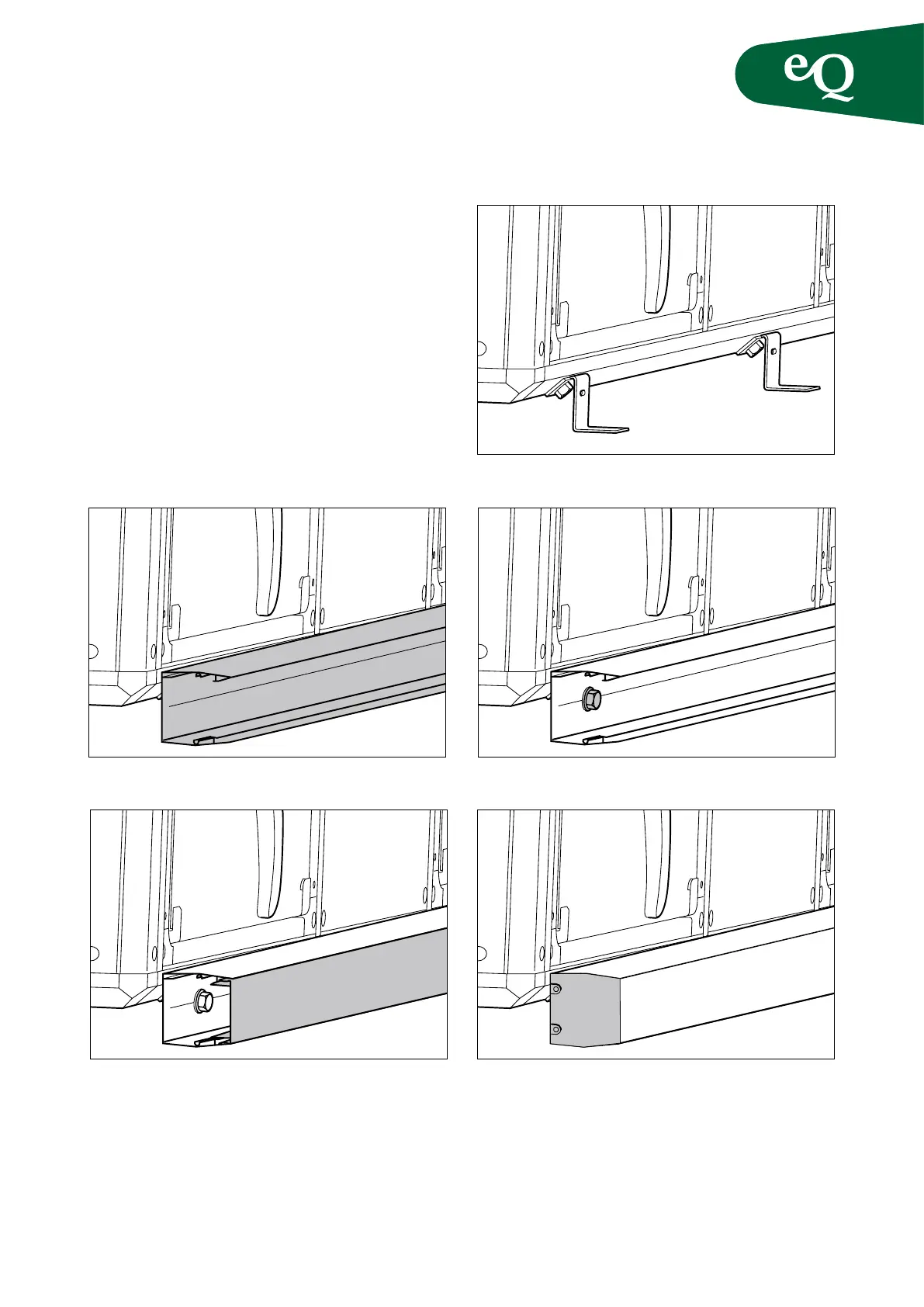

Image 1. Mount the brackets.
Image 3. Screw the cable trunking into place.
Image 5. Fit the end covers.
Image 2. Mount the cable trunking.
Image 4. Fit the front piece.
1. Mount brackets on the lower edge of the relevant block,
see image 1 below.
2. Mount the cable trunking.
3. Screw the cable trunking into place using self-tapping
screws in the internal centre slot in the cable trunking
opposite the bracket, see image 3.
