10Fläkt Woods 8666 GB 2010.06
Specifications are subject to alteration without notice
Installation and maintenance instructions
Control equipment
Connecting the energy analyser
Cable dimensions and currents, 0.55 – 15 kW
Outputs, power unit,
kW (3x400 VAC)
Maximum cross section of the
internal motor cable, mm
2
(A)
Maximum cross section of the
external electrical power supply,
mm
2
(A)
0,55-5,5 2,5 4 (max. 25 A)
7,5 2,5 16 (max. 63 A)
11-15 6 25 (max. 80 A)
Fuse protection for DX-cooling, electrical heating and ECONET is carried out separately.
Incoming phase Energy analyser
incoming
terminal block
Energy analyser
outgoing
terminal block
L1 (U) 3 1
L2 (V) 6 4
L3 (W) 9 7
43 42 41
9 6 3

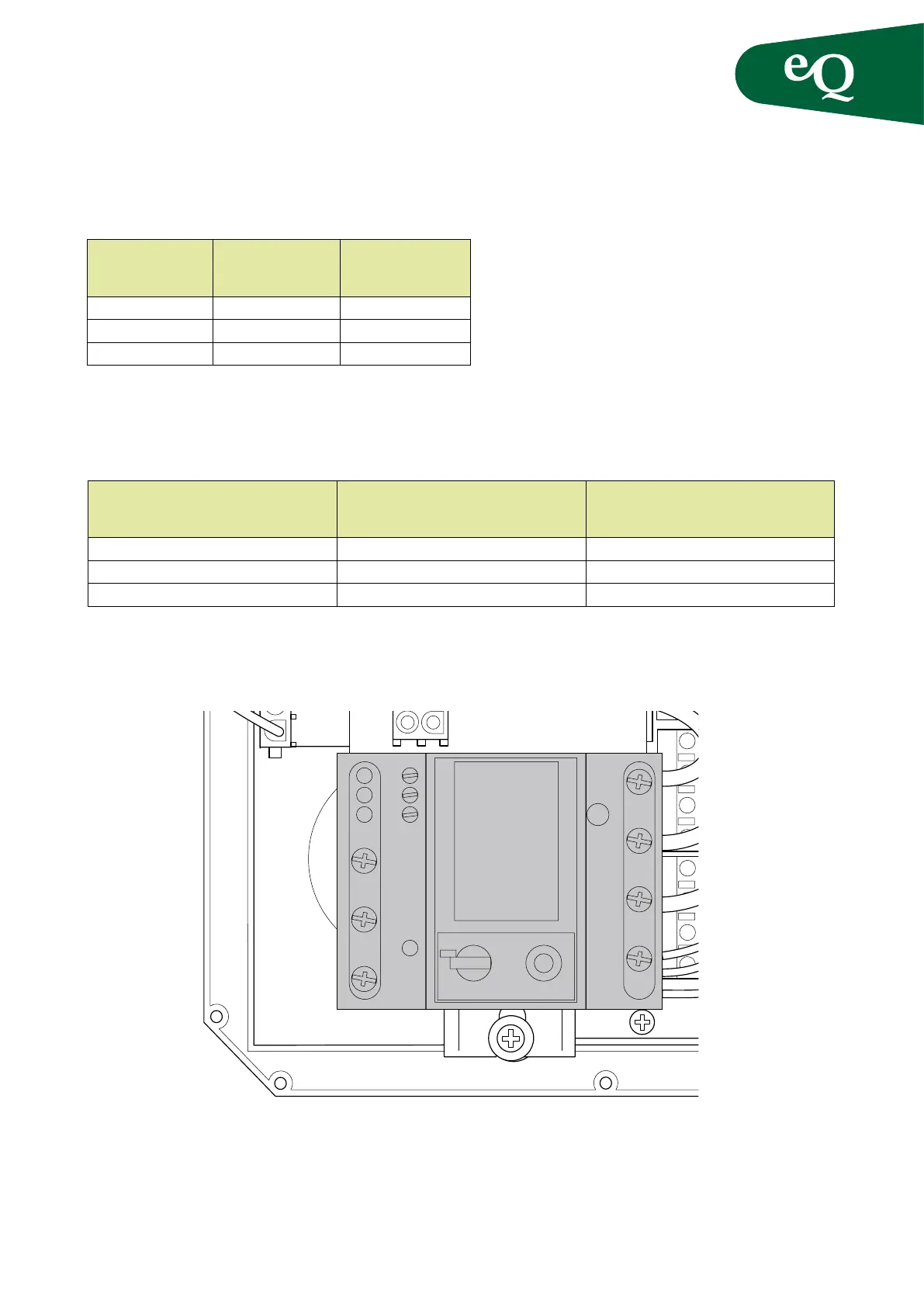

Fig. 8
Energy meters: Connecting L1 (U), L2 (V) and L3 (W).
Connect neutral (N) and earth (PE) to the specified terminal block.
7 4 1 11
