Installation and maintenance instructions
Control equipment
Fire protection unit and/or external stop

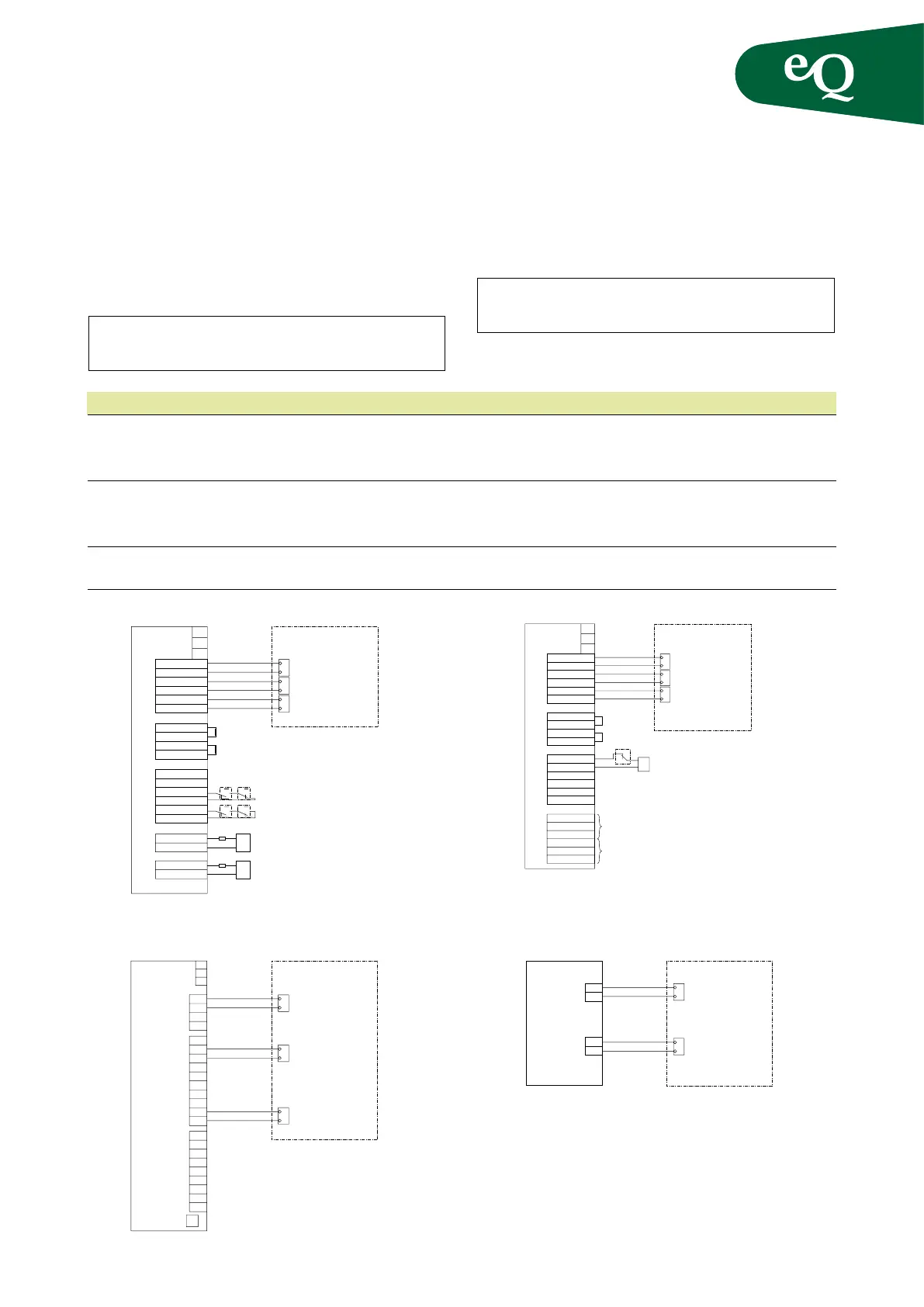

Connect the re protection unit and auxiliary equipment
to stop the unit according to the table below.
Access the following parameter to change the contact
function for the smoke/re alarm.
MAIN INDEX UNIT INPUTS
DIGITAL ALARMS FIRE ALARM
Access the following parameter to change the contact
function for the external stop.
MAIN INDEX UNIT INPUTS
DIGITAL INPUTS
Component Terminal block Comment
External smoke/fire alarm Fire Potential free input,
supplied design NC,
configurable
External stop (for example when Stop Potential free input,
exercising fire dampers) supplied design NC,
configurable
Power supply for the fire L1 - N 230 VAC, Max. 2A
protection unit
aa
a
a
a
a
a
Control panel
STOP
FIRE
SMOKE DETECTORS
MEASUREMENT DAMPER MOTOR
THERMOSTAT, DAMPER MOTOR
AUX 2
FCMA-2
PE
N
L
G1 (RED)
M1 (BLACK)
B1 (GREY)
G1 (RED)
M1 (BLACK)
B1 (GREY)
24 VAC
24 VAC
S1
S2
ALARM
ALARM
ALARM
ALARM
SERVICE
SERVICE
FAN CTRL.
FAN CTRL.
INTERLOCK
INTERLOCK
S4
S6
SMOKE DETECTORS
Control panel
STOP
FIRE
AUX 2
FCLA-128
L
N
P
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
ABAV-230 Control panel
FIRE
AUX 2
4
5
13
14
Fig. 39
Fig. 41
Fig. 40
Fig. 42
Control panel
STOP
FIRE
FIRE THERMOSTAT
FIRE THERMOSTAT
END POSITION SWITCH, OPEN POSITION
END POSITION SWITCH, CLOSED POSITION
MEASUREMENT DAMPER MOTOR
EXTERNAL FIRE ALARM
EXTERNAL INTERLOCKING
AUX 2
FCMA-2
PE
N
L
+2
-1
+2
-1
24 VAC
24 VAC
S1
S2
ALARM
ALARM
ALARM
ALARM
SERVICE
SERVICE
FAN CTRL.
FAN CTRL.
INTERLOCK
INTERLOCK
S4
S6
