Installation and maintenance instructions
Control equipment
23
Fan monitors GP3 and GP4 are supplied tted with quick-
t connectors. The length of the pressure hoses should not
exceed 5 metres. On delivery the contact function of the
controller is set to NO. Set the required alarm limit across
the lter using the knob on the sensor.
Hose connection: inner diameter 4 mm.
Filter monitors GP1 and GP2 are supplied tted with quick-
t connectors. The length of the pressure hoses should not
exceed 5 metres. On delivery the contact function of the con-
troller is set to NO. Set the required alarm limit across the
lter using the knob on the sensor.
Hose connection: inner diameter 4 mm.
Filter monitor
Terminal block:
Control panel
Junction box
Filter supply air AUX1 GP1-2
Filter extract air AUX1 GP1-2
Prefilter supply air AUX1 GP1-2
Prefilter extract air AUX1 GP1-2
Filter monitors
Fan monitors
Fan monitor
Terminal block:
Control panel
Junction box
Supply air AUX2 GP3-4
Extract air AUX2 GP3-4
AUX2
AUX1

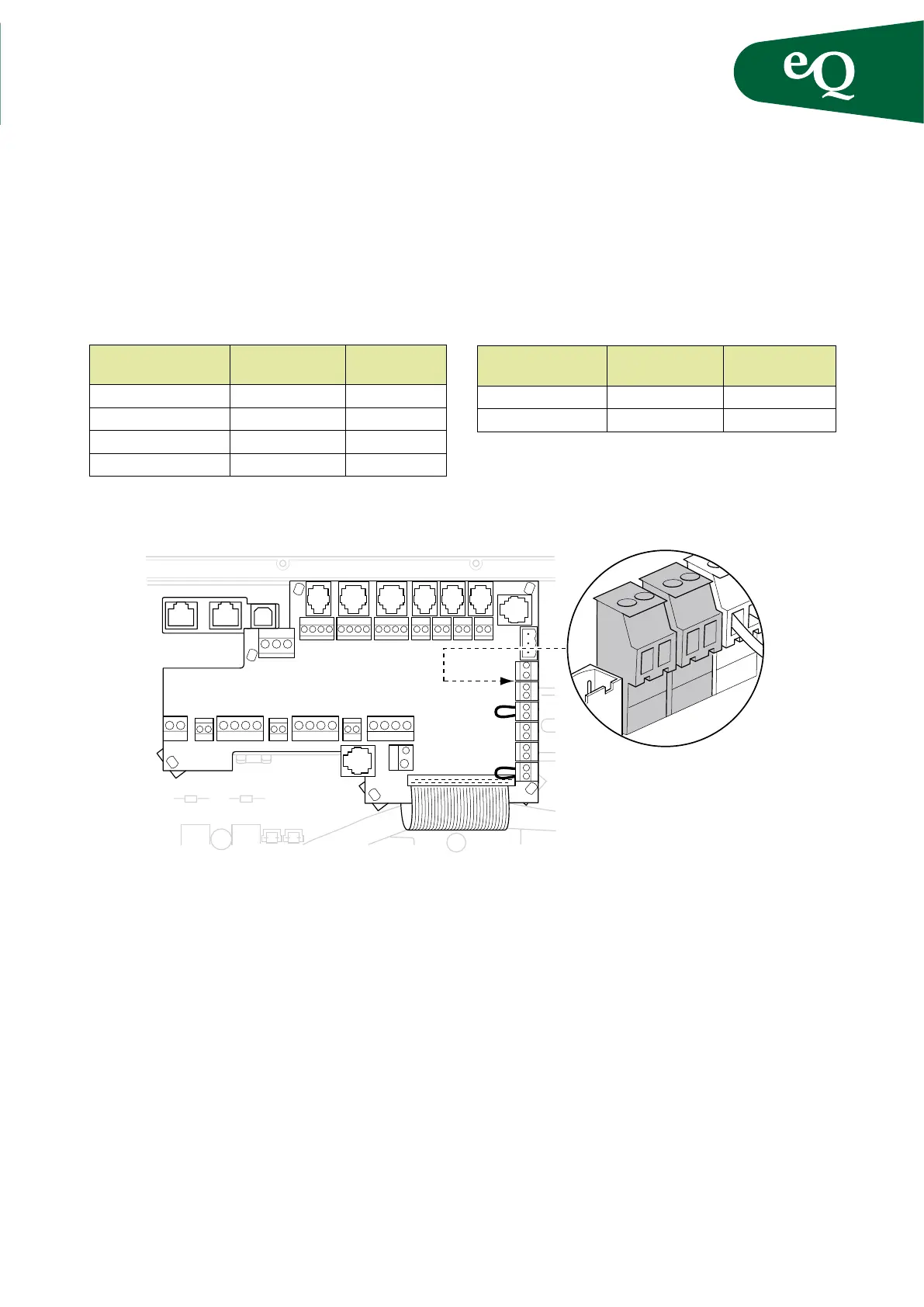

Fig. 20
