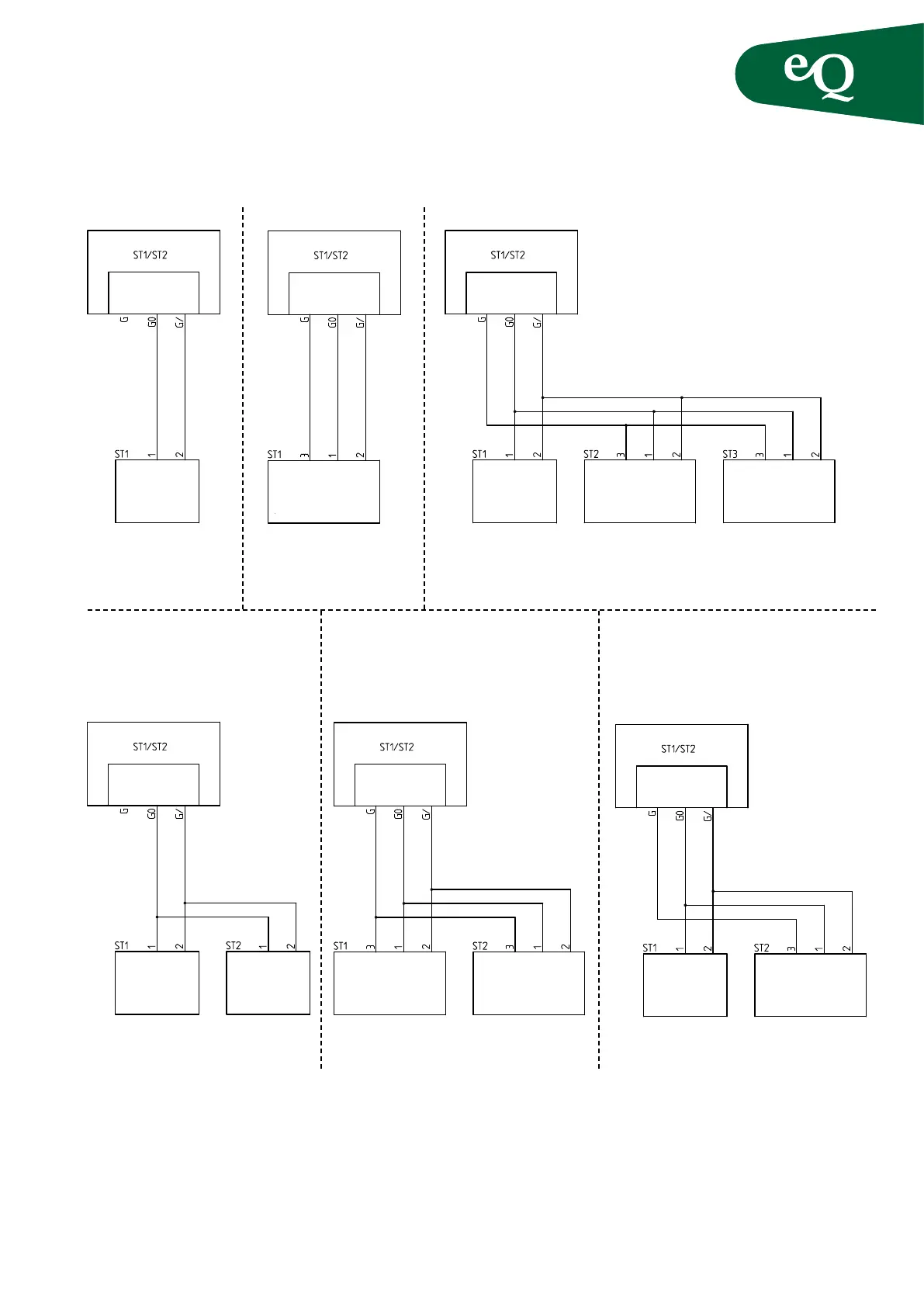

Installation and maintenance instructions
Control equipment
Only outdoor air actuator
with spring return
Outdoor/extract/exhaust air actuator
with spring return
Outdoor/extract/exhaust
air actuator on/off
Outdoor/extract/exhaust
air actuator spring return/on/off
Extract/exhaust air actuator
on/off
Outdoor/extract/exhaust/return
air actuator spring return/on/off
eQ
eQ eQ
eQ
eQ
eQ
Outdoor
Outdoor
Extract/
exhaust
Extract/exhaust
Extract/exhaust
Outdoor
Outdoor
OutdoorExtract/exhaust Extract/exhaust
Return air
Only for night time heating via return air
