Installation and maintenance instructions
Control equipment
35
ECONET
®
Connect Econet
®
via Modbus RTU. There are connections
in the control panel and junction box. See the Econet
®
documentation for further information.
D sub pin on
ECONET
®
Terminal block,
control panel
Function
3/2 Modbus + RxD+/TxD+
5 Modbus ref GND
8/7 Modbus – RxD-/TxD-
NOTE!
Check the jumper for communication in the control
panel when connecting via the junction box, see page 36.
aa
Conguration in the controller is carried out under:
MAIN INDEX CONFIGURATION CONFIGURATION 1
REF + -
MODBUS

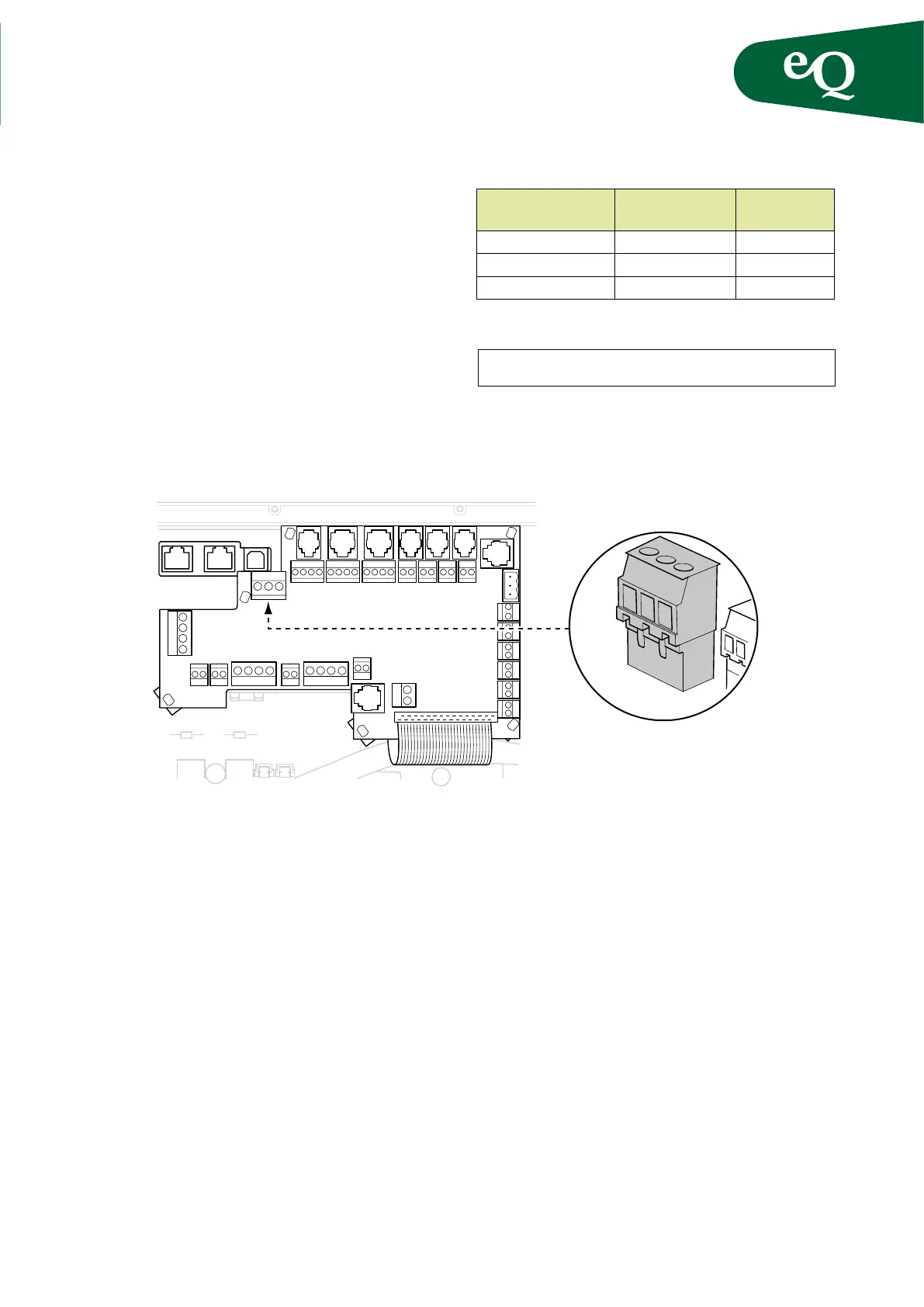

Fig. 36
