7.2 Commissioning, volume level and operating temperature
Note:Ifadifferentlllevelisrequiredthantheself-establishedminimumlevelafterstart(operationalreadyandinstalledtop-up),
thevesselshouldbelledtoreecttheminimumrequiredlevelneededfortheactualsystemtemperature,aftercompleting
thecommissioningprocedureonthecontrolunit.Forbetterunderstanding,studythediagramsbelowandtheparagraphon
maintenance,vesseldrainingandre-llinglaterinthisdocument.
*
*
*
*

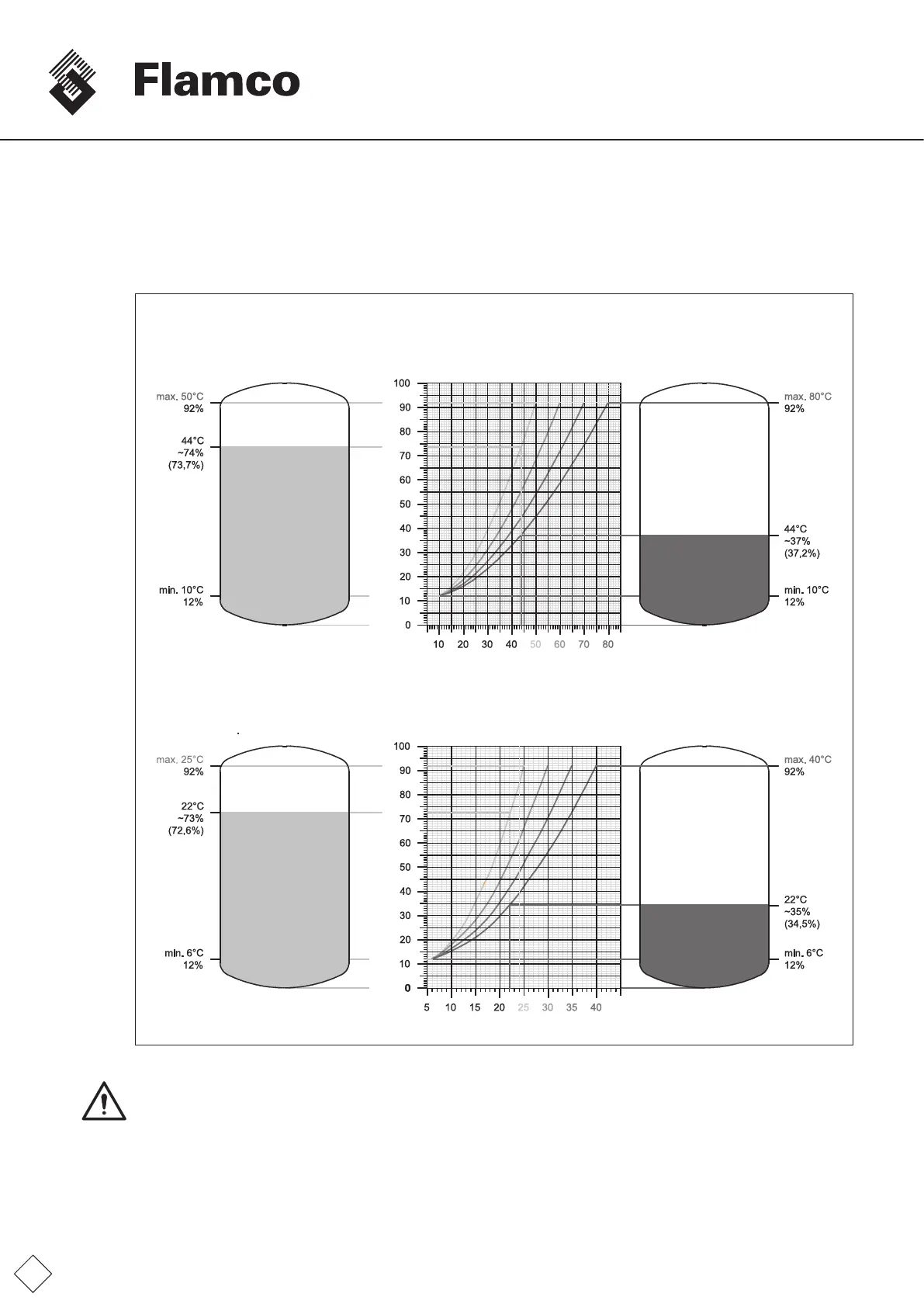

Example 1
Max.designtemp.:  50°C
Max.lllevel:   92%
Waterfeed,top-up:  12%
Min.designtemp.:  10°C
Example 3
Max.designtemp.:  25°C
Max.lllevel:   92%
Waterfeed,top-up:  12%
Min.designtemp.:  6°C
Actualtemperature[°C]
Actualtemperature[°C]
Vesseltargetvolume[%](controlunitdisplay) Vesseltargetvolume[%](controlunitdisplay)
Example 2
Max.designtemp.:  80°C
Max.lllevel:   92%
Waterfeed,top-up:  12%
Min.designtemp.:  10°C
Example 4
Max.designtemp.:  40°C
Max.lllevel:   92%
Waterfeed,top-up:  12%
Min.designtemp.:  6°C
Note:ForFlamcomatStartervessels(referenceC),handlesamaximumllinglevelof77%.
Fig. FM.037.V01.15
