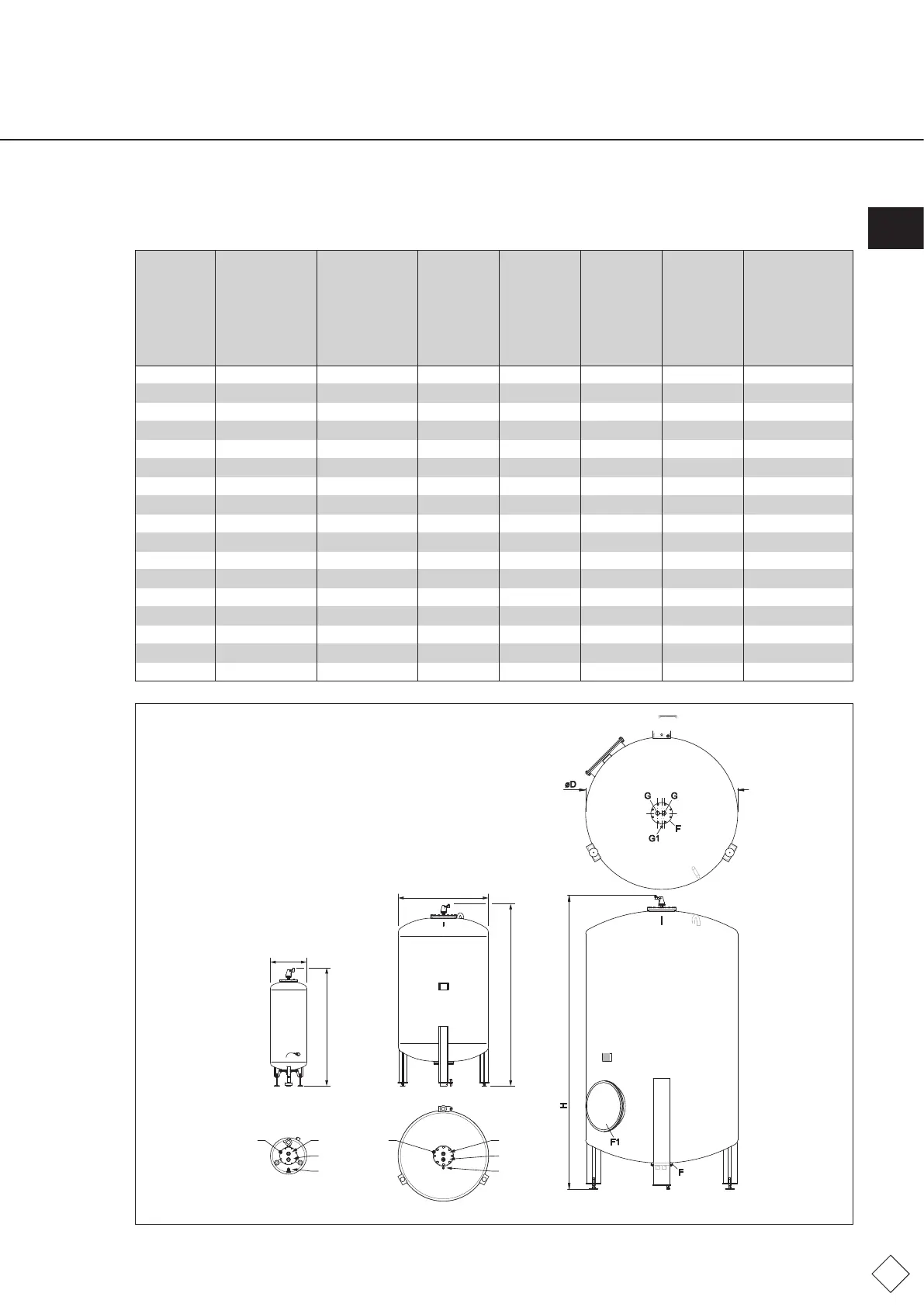

Appendix 2. Technical data, specications, hydraulic equipment
Vessels: volume, dimensions and weights
Nominal
capacity
[litres]
Vessel
diameter
D
(Characteristic C)
[mm]
Maximum
height
H
(Characteristic C)
[mm]
Vessel
connector
feed
return
G
[G; inch]
Condensate
drain
G1
[G; inch]
Vessel
ange
F
[DN]
Vessel
ange
F1
[DN]
Deadweight
(as delivered,
without packaging)
(Characteristic C)
[kg]
100 484(484) 1050(904) 1½" ½" 165 35(27)
200 484(600) 1560(1081) 1½" ½" 165 31(42)
300 600(600) 1596(1451) 1½" ½" 165 41(56)
400 790(790) 1437(1293) 1½" ½" 165 62(76)
500 790 1587 1½" ½" 165 70
600 790(790) 1737(1653) 1½" ½" 165 77(97)
800 790 2144 1½" ½" 165 92
1000 790 2493 1½" ½" 165 106
1200 1000 2210 1½" ½" 165 291
1600 1000 2710 1½" ½" 165 346
2000 1200 2440 1½" ½" 165 431
2800 1200 3040 1½" ½" 165 516
3500 1200 3840 1½" ½" 165 626
5000 1500 3570 1½" ½" 165 1241
6500 1800 3500 1½" ½" 165 500 1711
8000 1900 3650 1½" ½" 165 500 1831
10000 2000 4050 1½" ½" 165 500 2026
ØD
ØD
H
G1½"F
G1½"
G1"
G1½"F
G1½"
G1"
H
200 - 1000 litres
1200 - 5000 litres
View
from below.
View
from below.
6500 - 10000 litres
Fig. FM.042.V01.15
