40

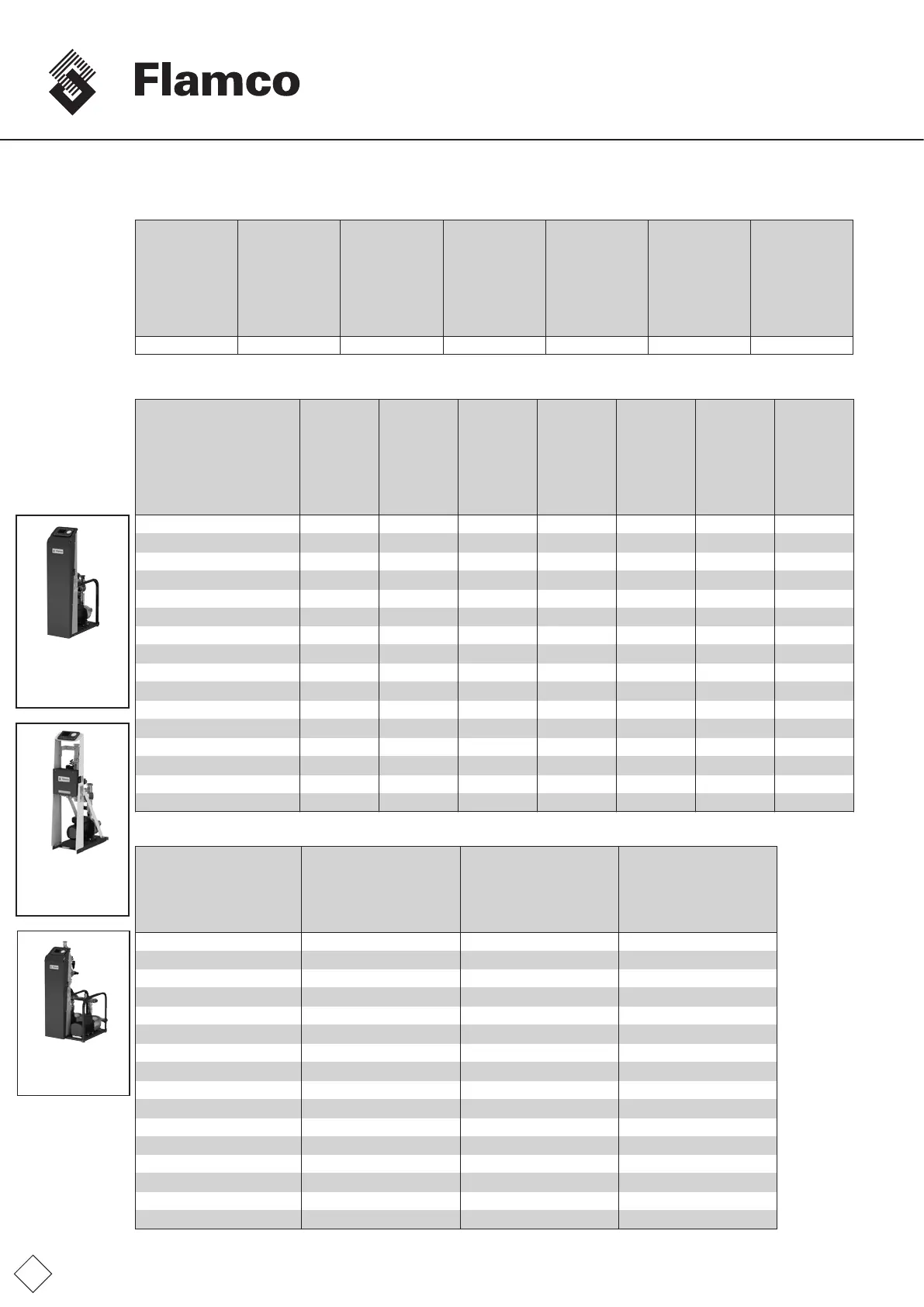

Vessel: operational characteristics
Nominal capacity
[litres]
Permissible
positive
operating pres-
sure
[bar]
Positive
test pressure
[bar]
Temperature
min.
(design)
[°C]
Temperature
max.
(design)
[°C]
Permissible
permanent
temperature
at the
diaphragm
min.
[°C]
Permissible
permanent
temperature
at the
diaphragm
max.
[°C]
100 - 10000 3 4,72 0 120 0 70
Pump module: dimensions and weights
Type Height
[mm]
Length
[mm]
Width
[mm]
Connection
Connection
array (vessel)
[G, inch]
Connection
system
[G, inch]
Connection
top-up
[Rp, inch]
Dead weight
(as delivered
condition
without
packaging)
[kg]
MP M-2-50 (MMG3) 922 506 227 1"M 1"F ½" 22
MP 2-3-50 (M02G3) 922 540 227 1"M 1"F ½" 28
MP 10-1-50 (M10G3) 922 513 227 1"M 1"F ½" 35
MP 20-2-50 (M20G3) 922 553 227 1"M 1"F ½" 35
MP 60-1-50 (M60G3) 922 561 227 1"M 1"F ½" 53
MP 80-1-50 (M80G3) 937 593 299 1"M 1"F ½" 68
MP 100-1-50 (M100) 1030 610 595 1½"F 1½"F ½" 67
MP 130-1-50 (M130) 1190 610 595 1½"F 1½"F ½" 75
DP M-2-50 (DMG3) 942 506 267 1"M 1"F ½" 29
DP 2-3-50 (D02G3) 974 603 452 1"M 1"F ½" 45
DP 10-1-50 (D10G3) 974 583 452 1"M 1"F ½" 61
DP 20-2-50 (D20G3) 974 620 446 1"M 1"F ½" 61
DP 60-1-50 (D60G3) 974 594 444 1"M 1"F ½" 61
DP 80-1-50 (D80G3) 975 594 515 1"M 1"F ½" 115
DP 100-1-50 (D100) 1030 910 580 1½"F 1½"F ½" 134
DP 130-1-50 (D130) 1190 910 580 1½"F 1½"F ½" 153
Control module external pressure retention, operational characteristics
Type Permissible positive
operating pressure
[bar]
Permissible
media temperature
min. / max.
[°C]
Permissible
environmental temperature
min. / max.
[°C]
MP M-2-50 (MMG3) 6 3 / 70 3 / 40
MP 2-3-50 (M02G3) 10 3 / 70 3 / 40
MP 10-1-50 (M10G3) 10 3 / 70 3 / 50
MP 20-2-50 (M20G3) 10 3 / 70 3 / 40
MP 60-1-50 (M60G3) 10 3 / 70 3 / 50
MP 80-1-50 (M80G3) 16 3 / 70 3 / 50
MP 100-1-50 (M100) 16 3 / 70 3 / 50
MP 130-1-50 (M130) 16 3 / 70 3 / 50
DP M-2-50 (DMG3) 6 3 / 70 3 / 40
DP 2-3-50 (D02G3) 10 3 / 70 3 / 40
DP 10-1-50 (D10G3) 10 3 / 70 3 / 50
DP 20-2-50 (D20G3) 10 3 / 70 3 / 40
DP 60-1-50 (D60G3) 10 3 / 70 3 / 50
DP 80-1-50 (D80G3) 16 3 / 70 3 / 50
DP 100-1-50 (D100) 16 3 / 70 3 / 50
DP 130-1-50 (D130) 16 3 / 70 3 / 50
Voorbeeld:
MP 2-3-50 G3
Fig. FM.043.V01.15
Voorbeeld:
MP 2-3-50 Starter
Voorbeeld:
DP 10-1-50 G3
Fig. FM.044.V01.15
