FOM16 Installation Description
FOM16-V2.0-20021114
-39-

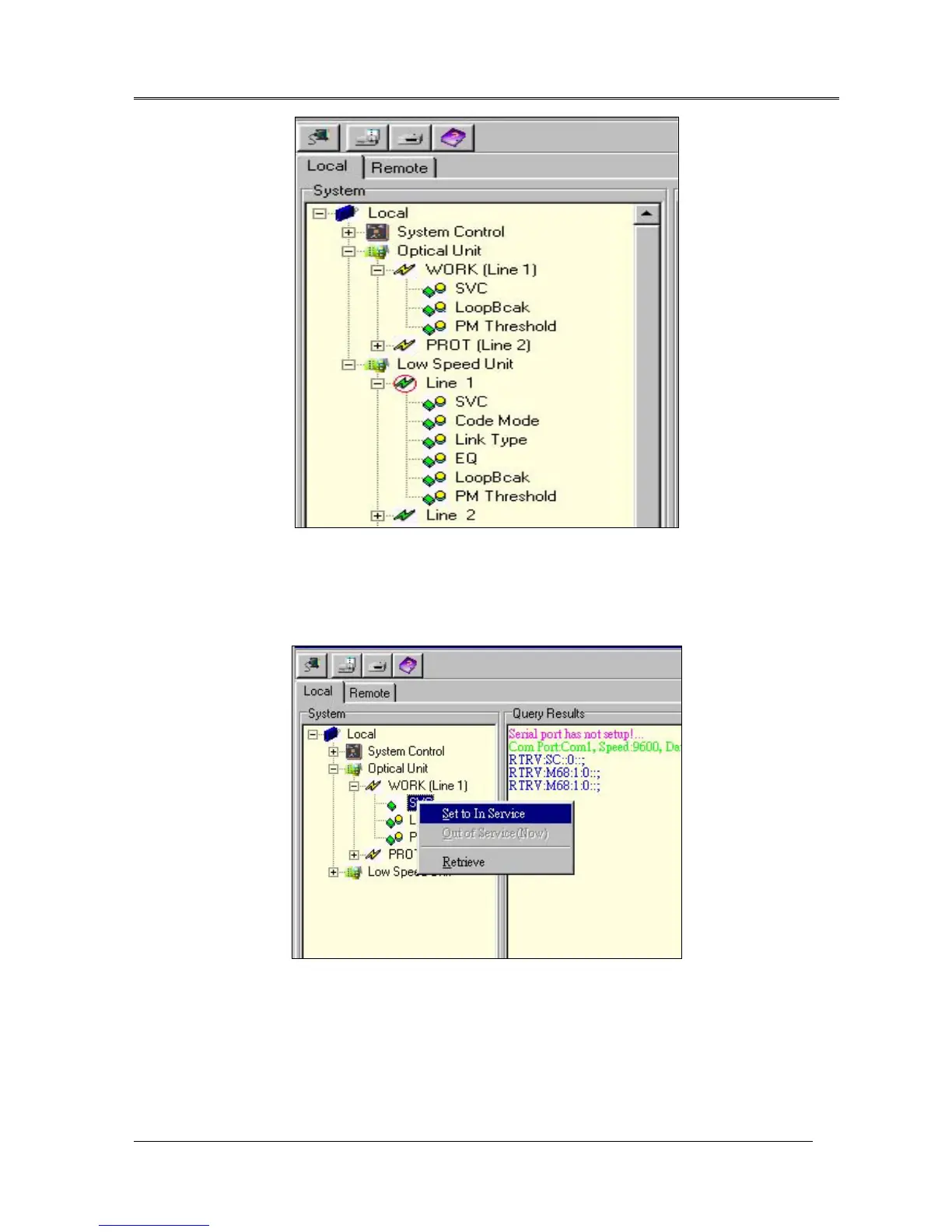

Fig.22 Optical and Low speed unit control window
Each node provides some options for SVC (service setting), code mode, loopback setting, and
Performance threshold setting. When the SVC is clicked, the popup menu is shown in Fig.23. SVC
provides in-service, out-of-service, and retrieve options.
Fig.23 SVC command popup menu
Another command is the loopback command. Loopback command provides local loopback, remote
loopback, and retrieve options. It is shown in Fig.24.
