Introduction
5
5.1.4
Research
&
development
1
2
3
4

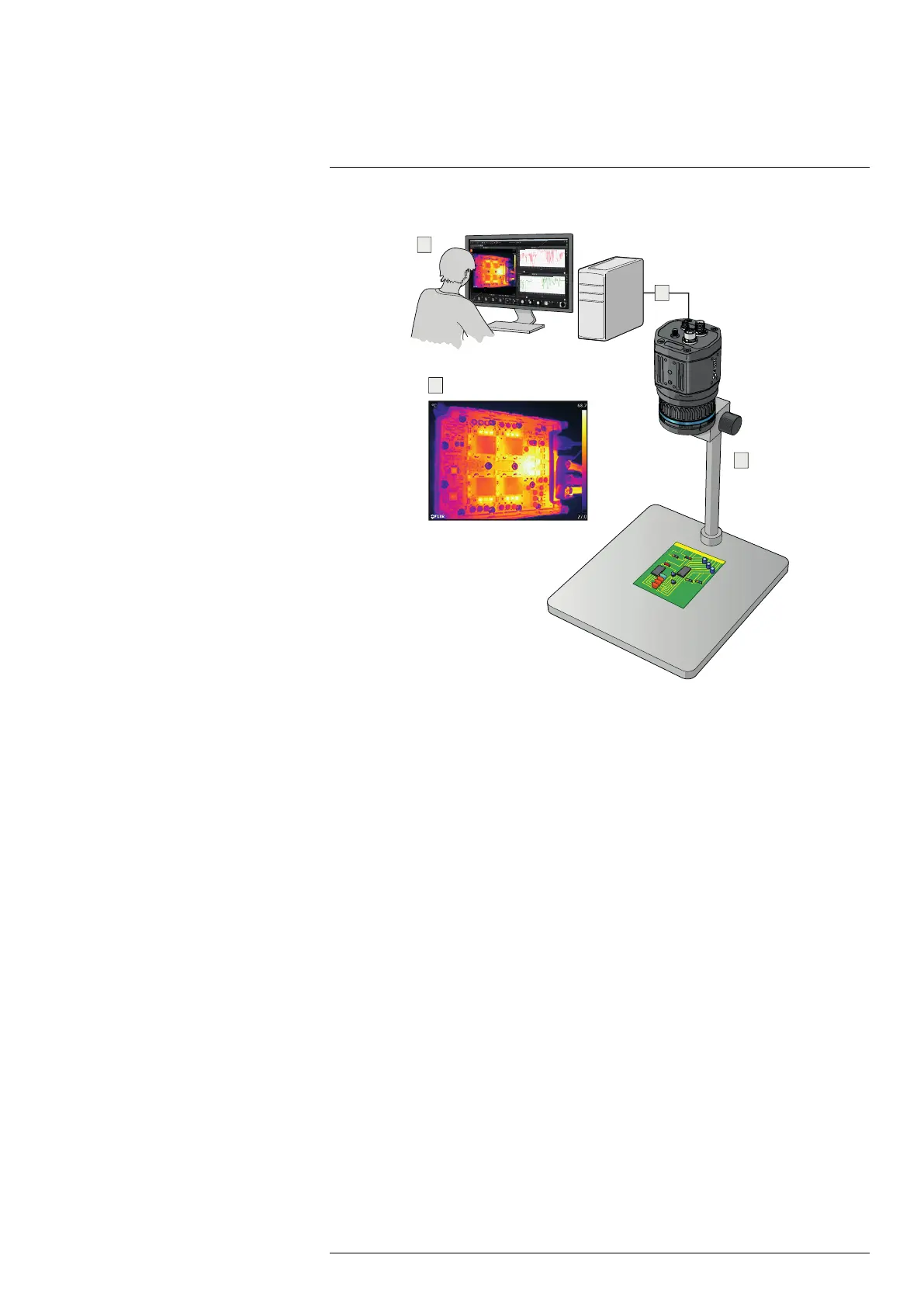

Figure
5.5
Checking
heat
dissipation
on
PCB
during
development
1.
Computer
running
FLIR
science
software,
e.g.,
FLIR
Research
Studio
.
2.
CA
T
6
Ethernet
cable.
3.
Laboratory
setup
with
a
FLIR
A400/A500/A700
Advanced
Streaming
camera.
4.
Example
thermal
image.
#T810409;
r.
AH/78915/78915;
en-US
12
15
17
