Pin configurations
11
11.3 RS232/RS485 connector

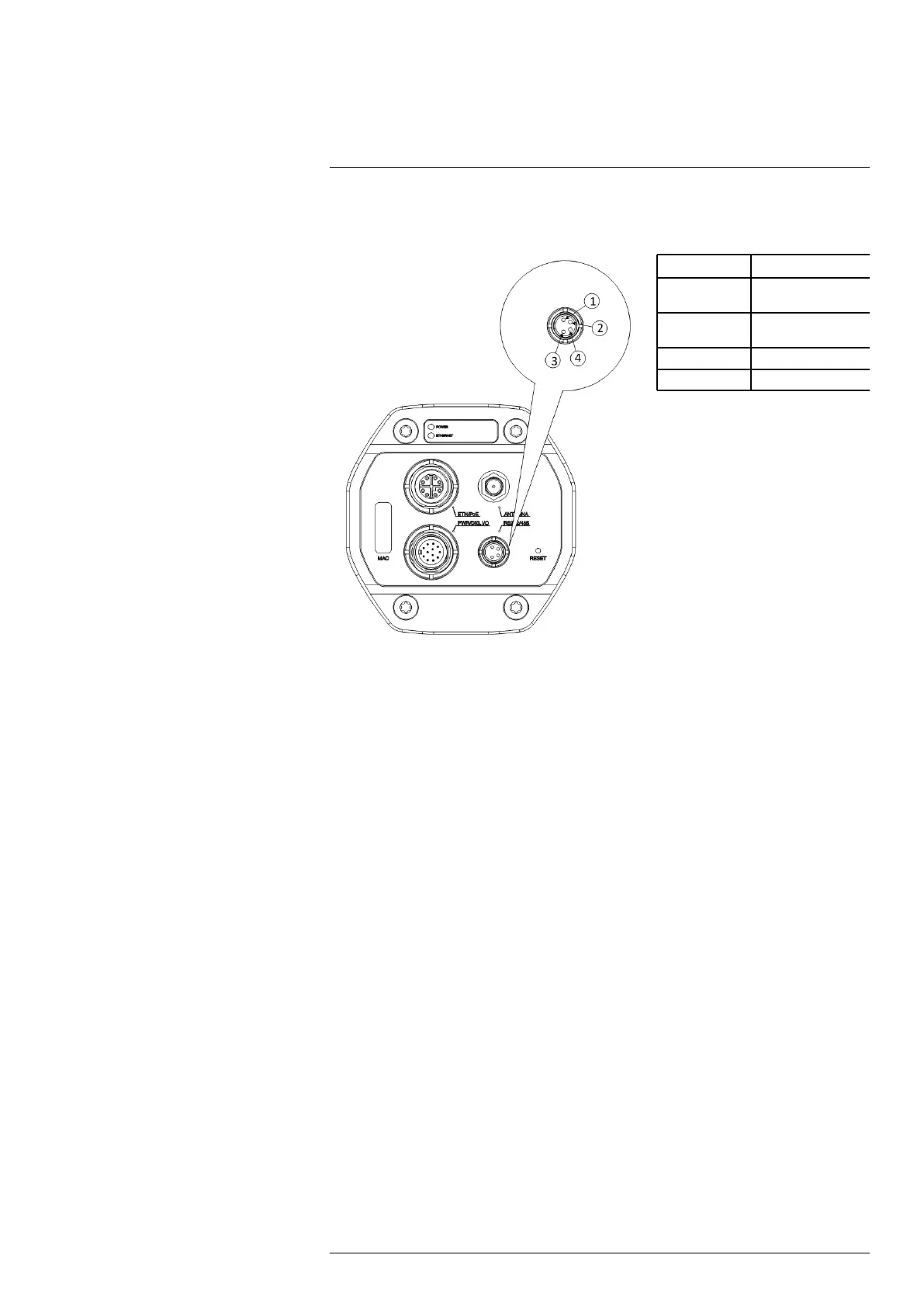

Figure 11.5 Male A-coded M8 RS232/RS485 connector
Pin Configuration
1
RS232_TXD alt
RS485A
2
RS232_RXD alt
RS485B
3
Chassie GND
4
Not Connected
#T810409; r. AH/78915/78915; en-US
