Pin configurations
11

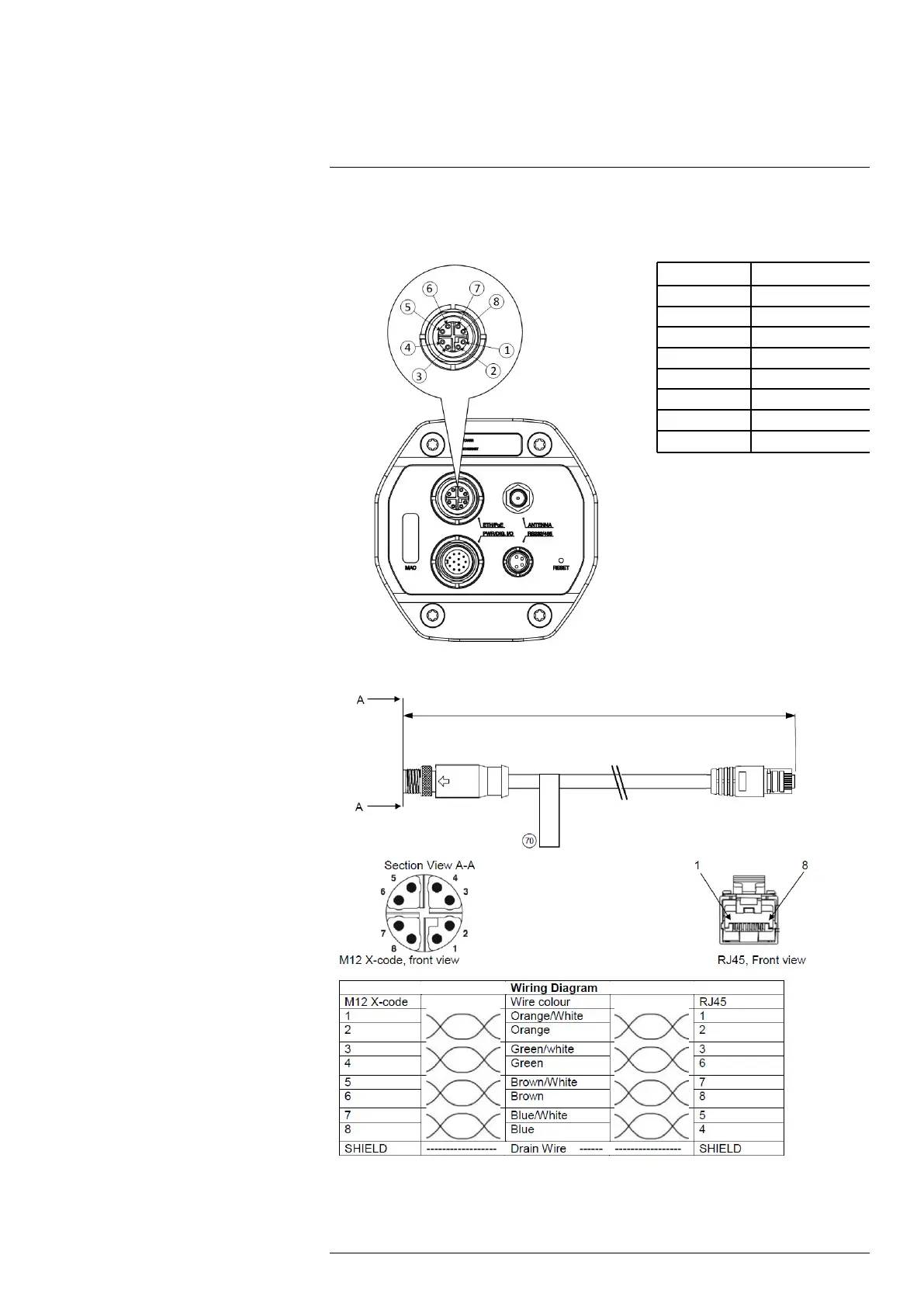

11.1 Ethernet connector and cable
Figure 11.1 Female X-coded M12 Ethernet connector
Pin Configuration
1 DA+
2 DA-
3 DB+
4 DB-
5
DD+
6 DD-
7
DC-
8
DC+
Figure 11.2 Ethernet cable M12 to RJ45
#T810409; r. AH/78915/78915; en-US
39
