Camera web interface
10

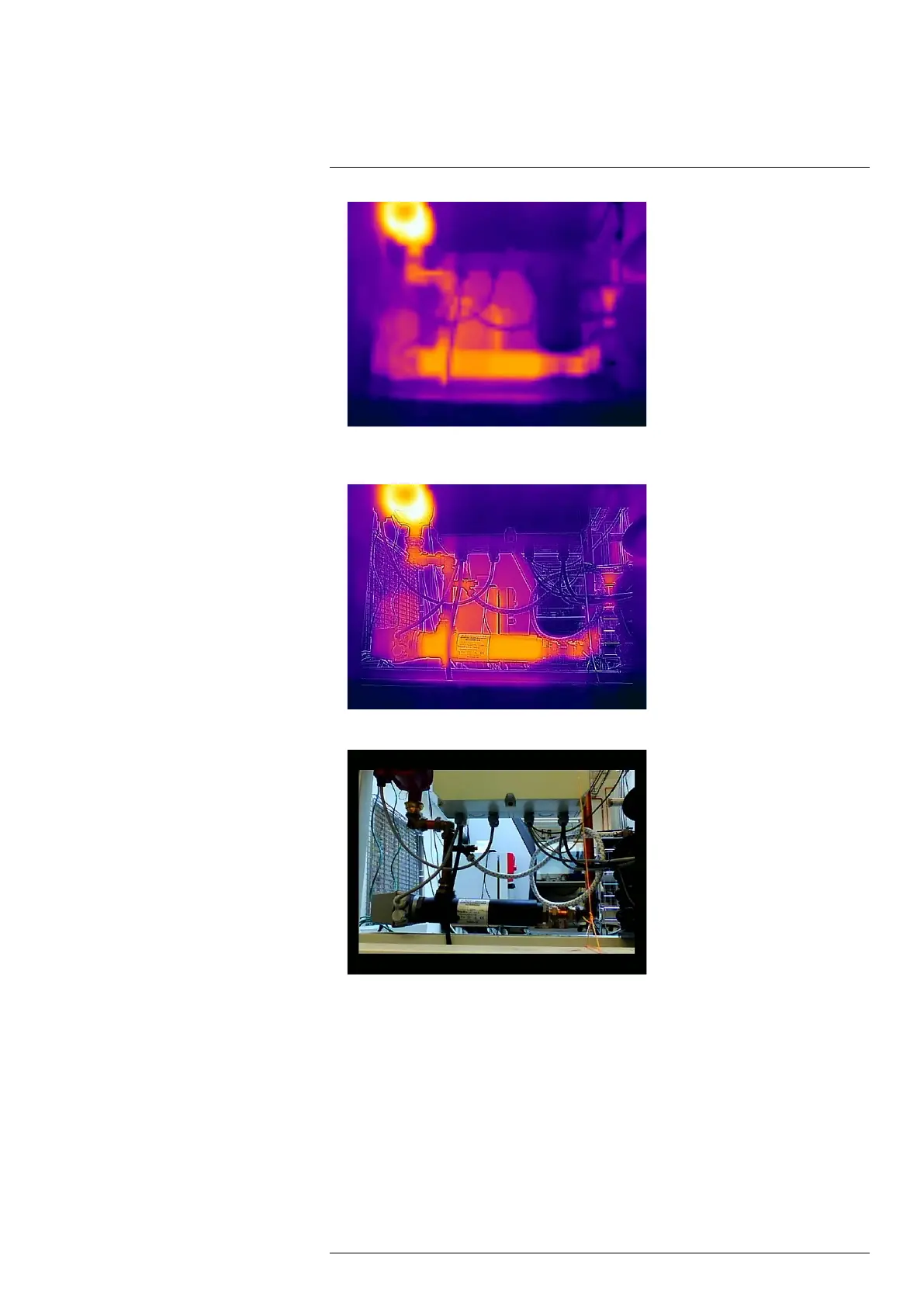

• MSX (Multi Spectral Dynamic Imaging): The camera displays the thermal image
where details from the visual image have been added.
• Visual: The camera displays the visual image captured by the visual camera.
• FSX (Flexible Scene Enhancement): The camera displays the thermal image with en-
hanced image details. This image mode is useful when higher contrast is required, for
example when the camera is used in a surveillance application.
To select the image mode, follow this procedure:
1. On the toolbar and in the Data presentation modes section, click Image mode.
2. Select one of the available image modes.
10.4.5 Colorizing the image
The camera can colorize the image in different ways. You can select different color pa-
lettes or apply color alarms (isotherms).
#T810409; r. AH/78915/78915; en-US
26
