Thermographic
measurement
techniques
32
32.2.1.1.1
Method
1:
Direct
method
Follow
this
procedure:
1.
Look
for
possible
reflection
sources,
considering
that
the
incident
angle
=
reflection
an-
gle
(a
=
b).

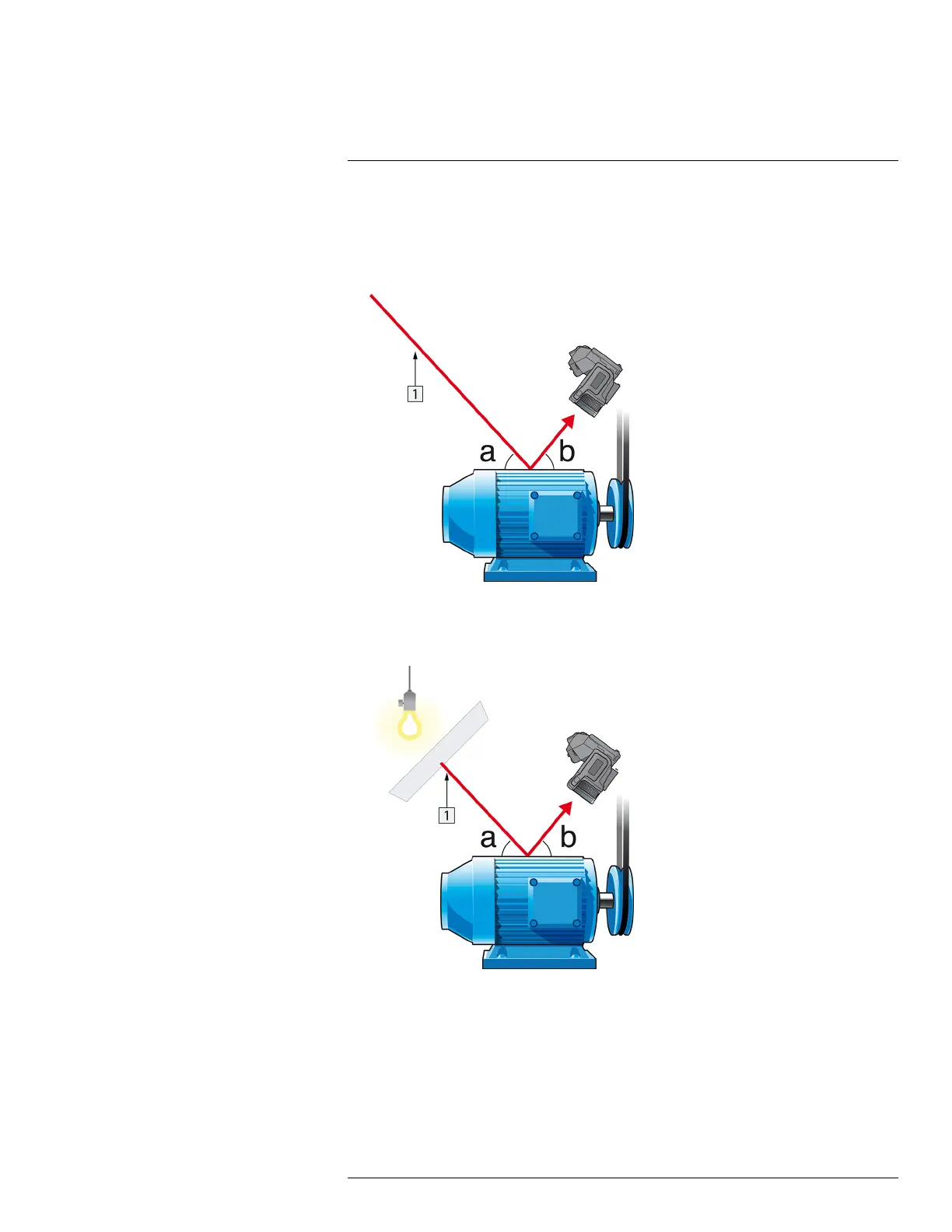

Figure
32.1
1
=
R
eflection
source
2.
If
the
reflection
source
is
a
spot
source,
modify
the
source
by
obstructing
it
using
a
piece
if
cardboard.
Figure
32.2
1
=
R
eflection
source
#T810190;
r
.
AI/41890/41890;
en-US
229
240
242
