Camera parts

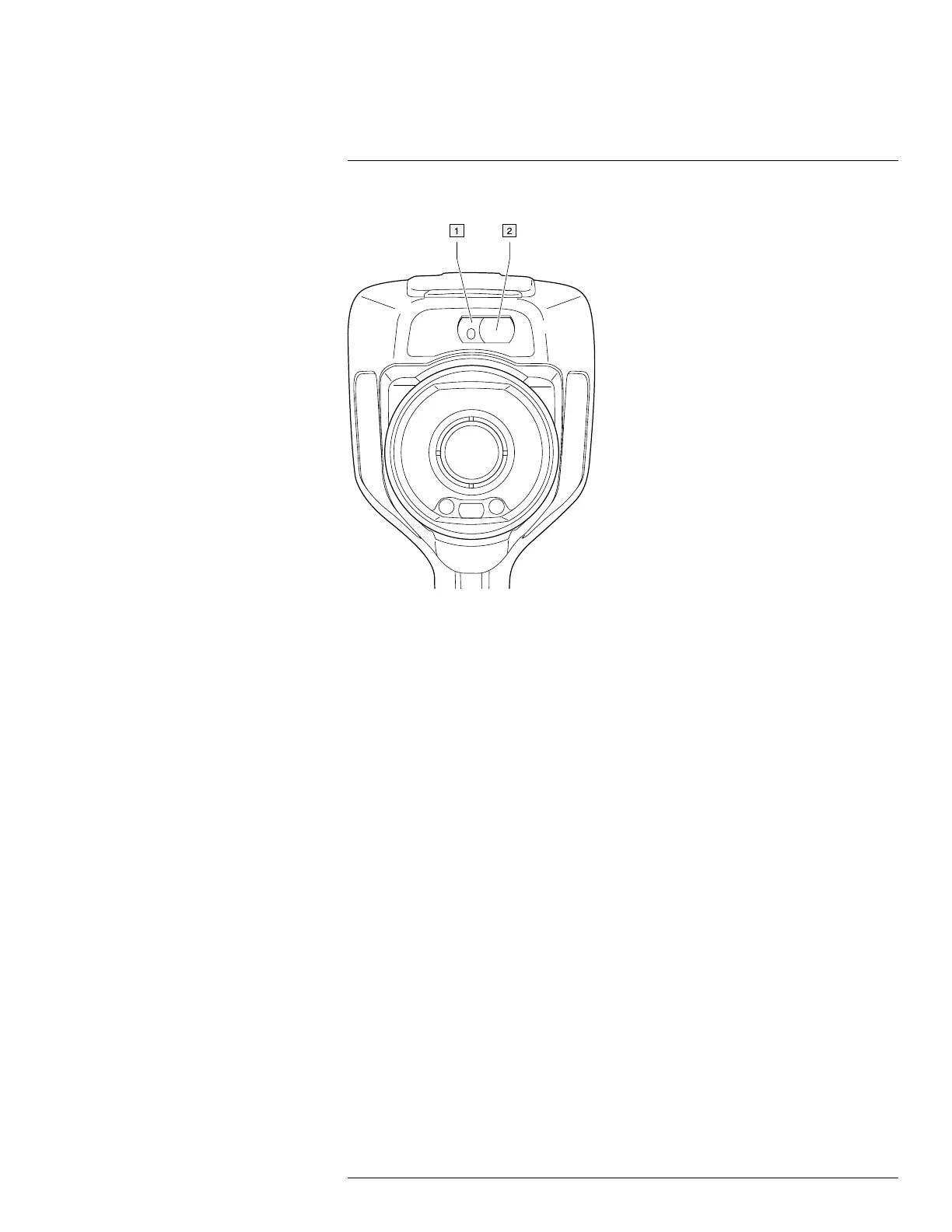

7.3.2 Laser transmitter and receiver

1. Laser transmitter.

2. Laser receiver.

7.3.3 Difference in position

This figure shows the difference in position between the laser transmitter and the optical

center of the infrared lens.

#T810190; r. AI/41890/41890; en-US
