Screen elements
8

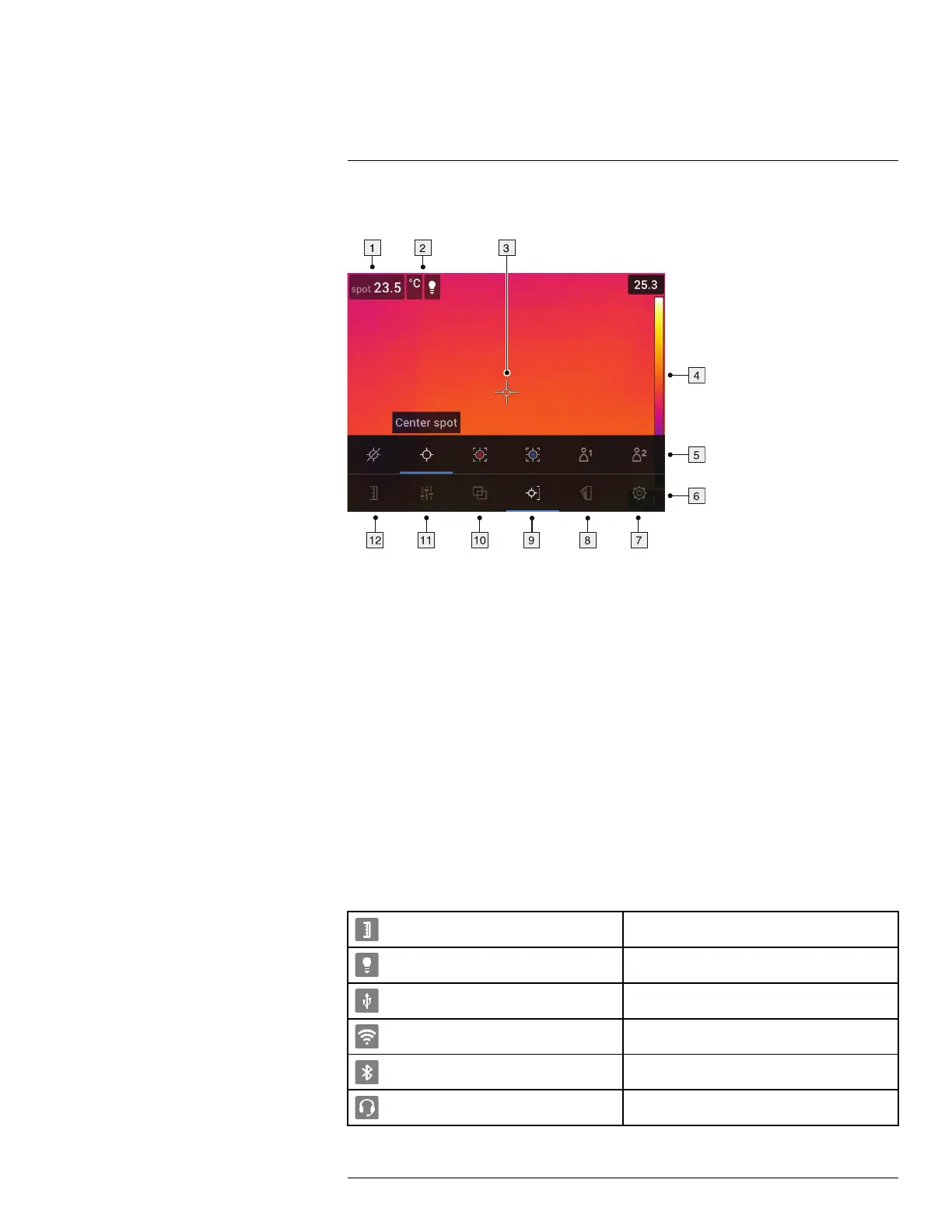

8.1 Figure
8.2 Explanation
1. Result table.
2. Status icons.
3. Measurement tool (e.g., spotmeter).
4. Temperature scale.
5. Submenu.
6. Main menu.
7. Settings button.
8. Color button.
9. Measurement button.
10. Image mode button.
11. Measurement parameters button.
12. Temperature scale button.
Note To display the menu system, tap the screen or push the navigation pad.
8.3 Status icons
Manual adjustment mode is enabled.
The camera lamp is turned on.
The camera is connected to a device using USB.
Wi-Fi connectivity indicator.
Bluetooth connectivity indicator.
A Bluetooth headset is connected.
