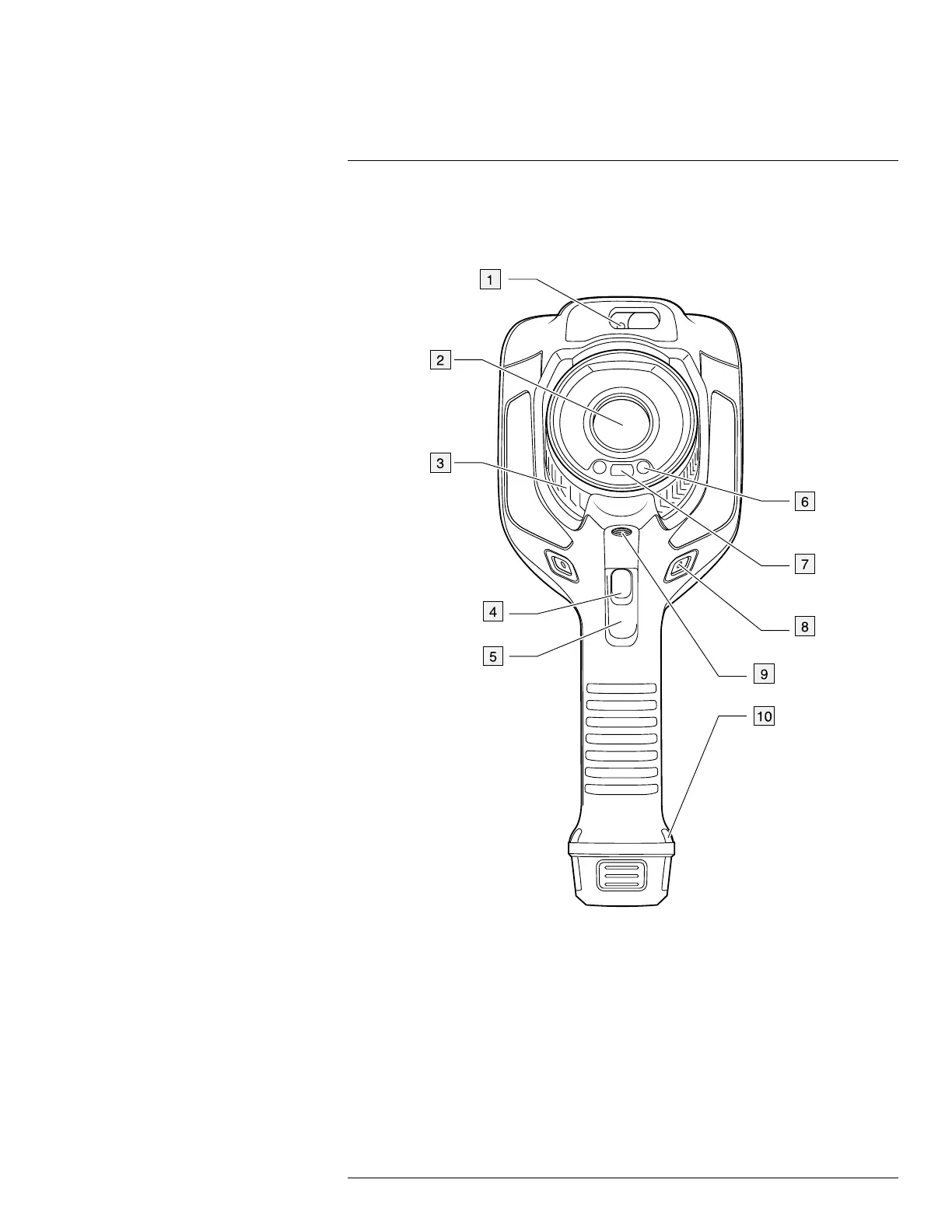

Camera
parts
7
7.1
View
from
the
front
7.1.1
Figure
7.1.2
Explanation
1.
Laser
distance
meter
.
2.
Infrared
lens.
3.
F
ocus
ring.
4.
Autof
ocus
button.
5.
T
rigger.
6.
Lamp
for
the
digital
camera
(left
and
right
sides).
7.
Digital
camera.
8.
Attachment
point
for
the
hand
strap
bracket
(left
and
right
sides).
9.
T
ripod
mount.
#T810190;
r
.
AI/41890/41890;
en-US
17
28
30
