Achieving a good image13

13.5 Changing the color palettes

13.5.1 General

You can change the color palette that the camera uses to display different temperatures. A

different palette can make it easier to analyze an image.

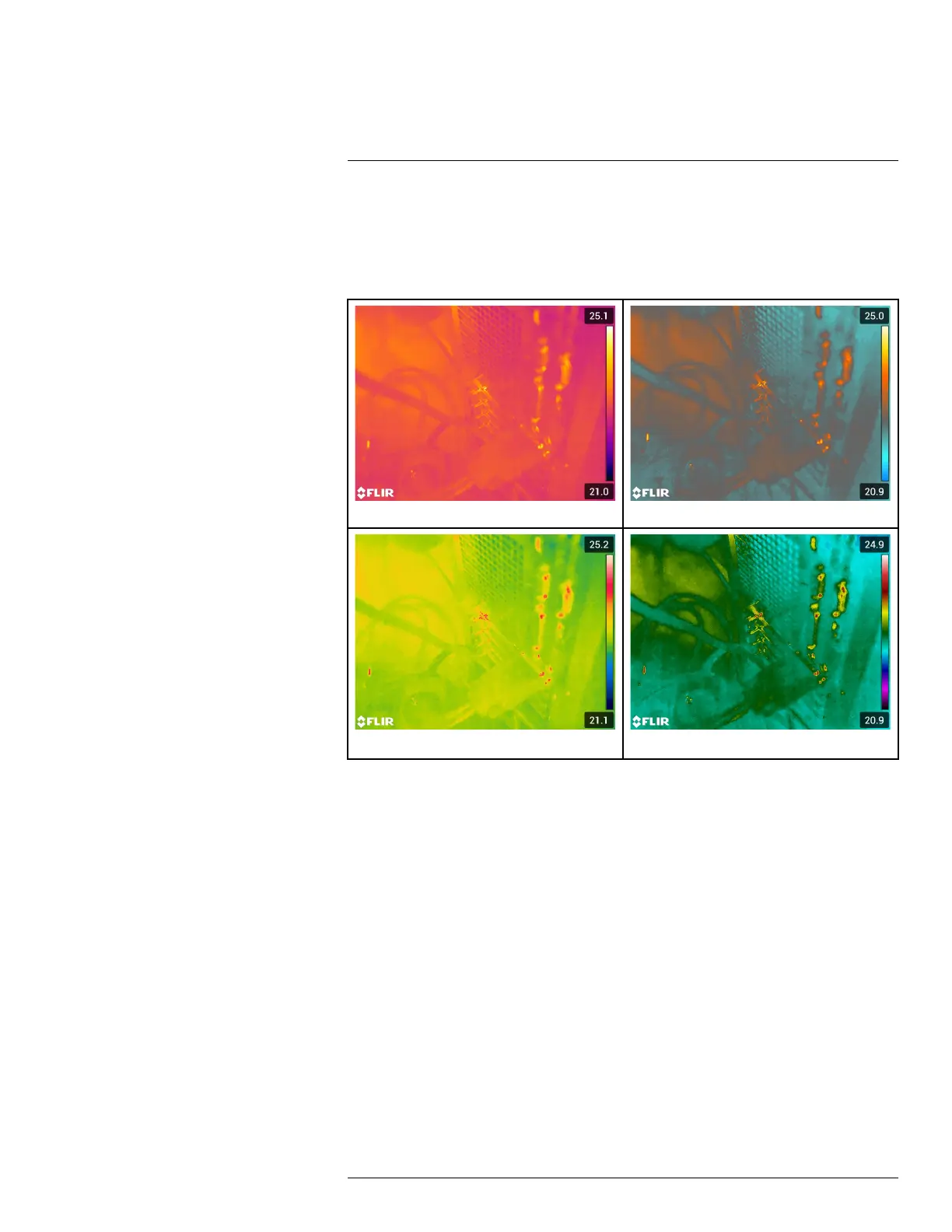

Iron Arctic

Rainbow Rainbow high contrast

#T810190; r. AI/41890/41890; en-US

Default Chapter5
