Working with measurement tools15

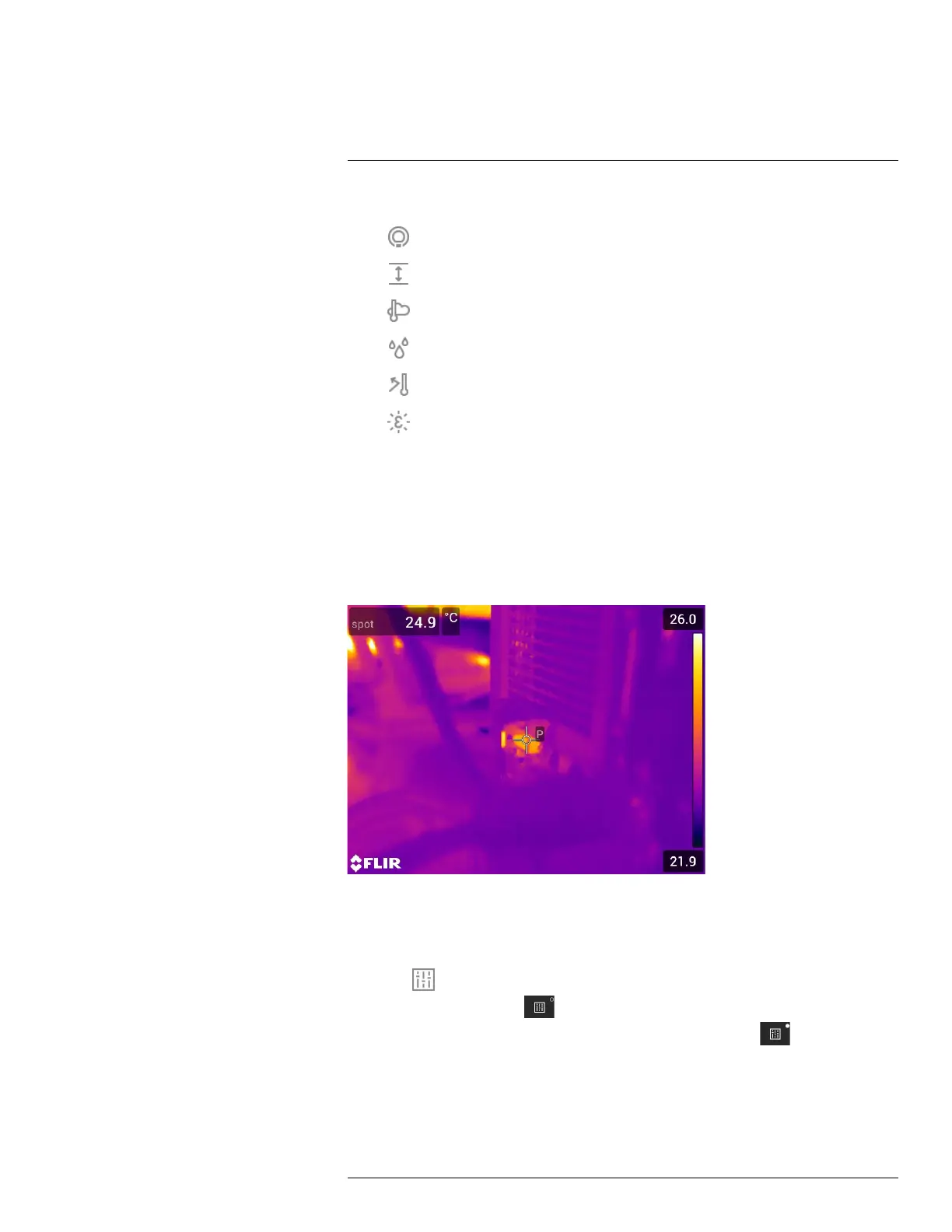

3. Use the navigation pad to select one or more of the global measurement parameters:
•
(External IR window compensation).
•
(Object distance).
•
(Atmospheric temperature).
•
(Relative humidity).
•
(Reflected temperature).
•
(Emissivity).
4. Push the navigation pad to display a dialog box.
5. Use the navigation pad to change the parameter.
6. Push the navigation pad to confirm and exit the menu mode.
15.5.4.2 Changing local parameters
You can change the local parameters for a measurement tool.
A P next to the measurement tool on the screen indicates that local parameters have been
activated for the tool.
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Select
(Use local parameters).
4. Push the navigation pad.
(icon with unfilled indicator) is displayed.
5. Push the navigation pad to activate the use of local parameters.
(icon with filled
indicator) is displayed together with a submenu.
6. Use the navigation pad to select one or more of the local measurement parameters.
7. Push the navigation pad to display a dialog box.
8. Use the navigation pad to change the parameter.
9. Push the navigation pad. This closes the dialog box.
#T810190; r. AI/41890/41890; en-US
73
