4
operator to see in total darkness, through smoke, and other low visibility,
low contrast situations. The SeaFLIR II-C model is equipped with a 1.8X
optical extender giving it an increased standoff capability. The CCD
camera provides visible light imagery under normal and low light
conditions. The Laser Pointer provides IR illumination that can be
viewed with image-intensified night vision goggles. The stabilized
Gimbal system provides stable video during host platform vibration and
motion. The SGA performance characteristics are identified in Table 1-1.
U2J15
U2J3
U2J16 U2J7 U2J10
U2J12 U2J13 U2J14
U2J2
U2J1
C03-008
Control Electronics Unit (CEU)
Hand Control Unit
(HCU)
O/| MODE SYM
TRACKER
POSITION
Stabilized Gimbal Assembly
(SGA)
CCD
Camera
Lens
Laser Pointer
(Optional)
FLIR
Camera
Lens

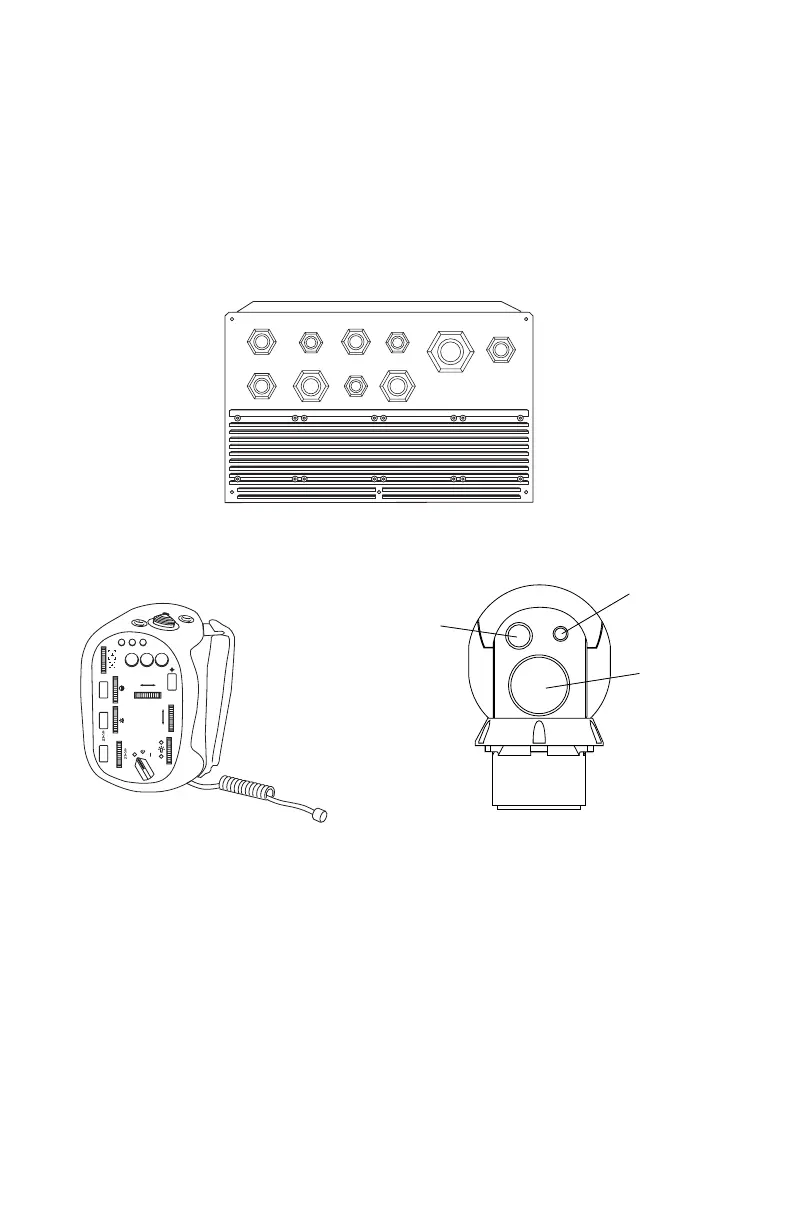

Figure 1-1. SeaFLIR II Imaging System Units
