3.9.1 Basic Radar Bearing Indicators
RAD:OFF-LINE - The radar system is off line (Figure 3-33) and no
radar information is being provided to the SeaFLIR II System.
RAD:INVALID - The radar data input (Figure 3-34) is invalid. The
selected radar bearing data format ($RATTM or $RARSD) is incorrect,
radar input is referenced to true north, or an incorrect baud rate has been
selected.
RAD:ON-LINE - The radar data input is valid. The selected radar
bearing data format ($RATTM or $RARSD) is correct.
* RAD:ON_LINE SINGL - Single Shot Mode
* RAD:ON_LINE CONT - Continuous Mode
RAD:SLAVE – Valid target data is available and the SeaFLIR II
System is slaved to Radar

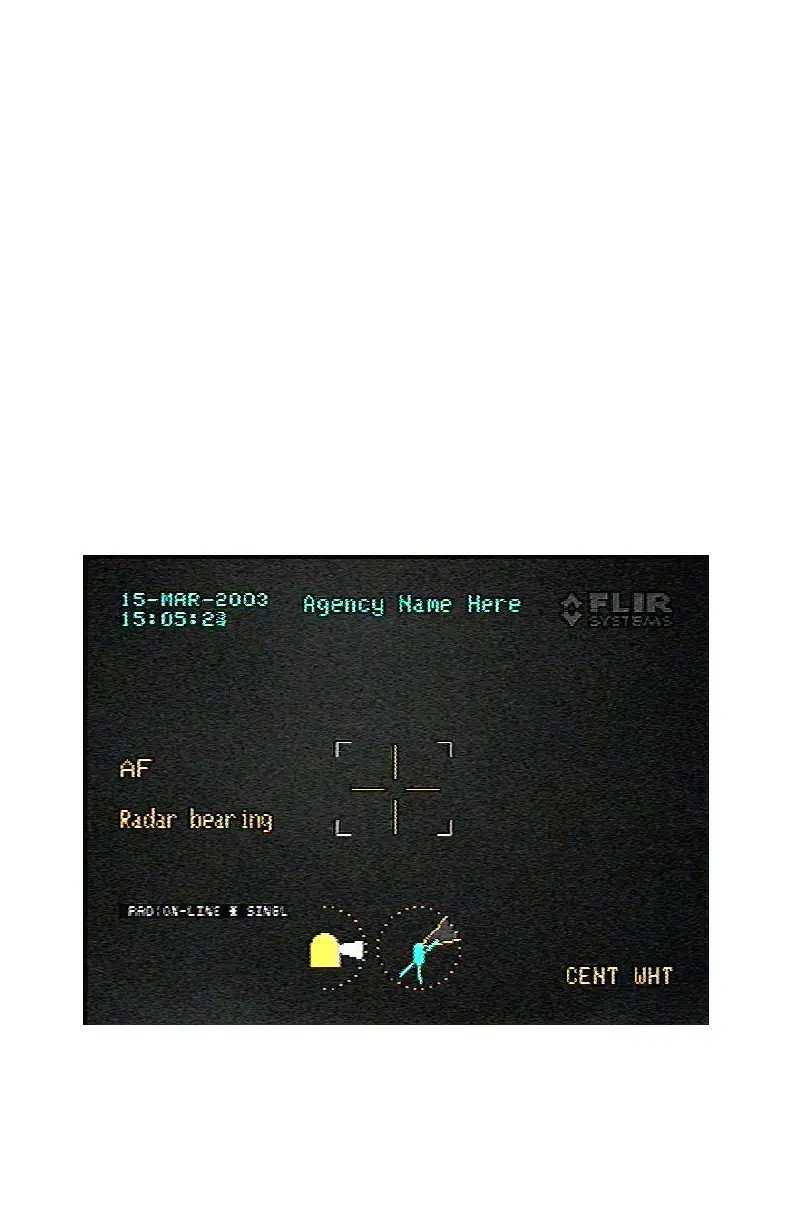

Figure 3-33. Radar Off-Line Display
