23
3.1.17 Auto Level Switch
This switch turns the auto level on and off. When used with the CCD
camera both Level and Gain are activated simultaneously.
3.1.18 Tracker Window Control
This control is used to manually adjust the size of the tracker window.
3.1.19 SHIFT Switch
Pressing the SHIFT switch will cause SHIFT to appear on the left side of
the display (Figure 3-3). Pressing a shifted function switch immediately
after pressing the SHIFT Switch will cause the system to perform the
shifted function (Table 3-1). Pressing the SHIFT Switch, a second time
without pressing a shifted function switch will cancel the SHIFT mode.

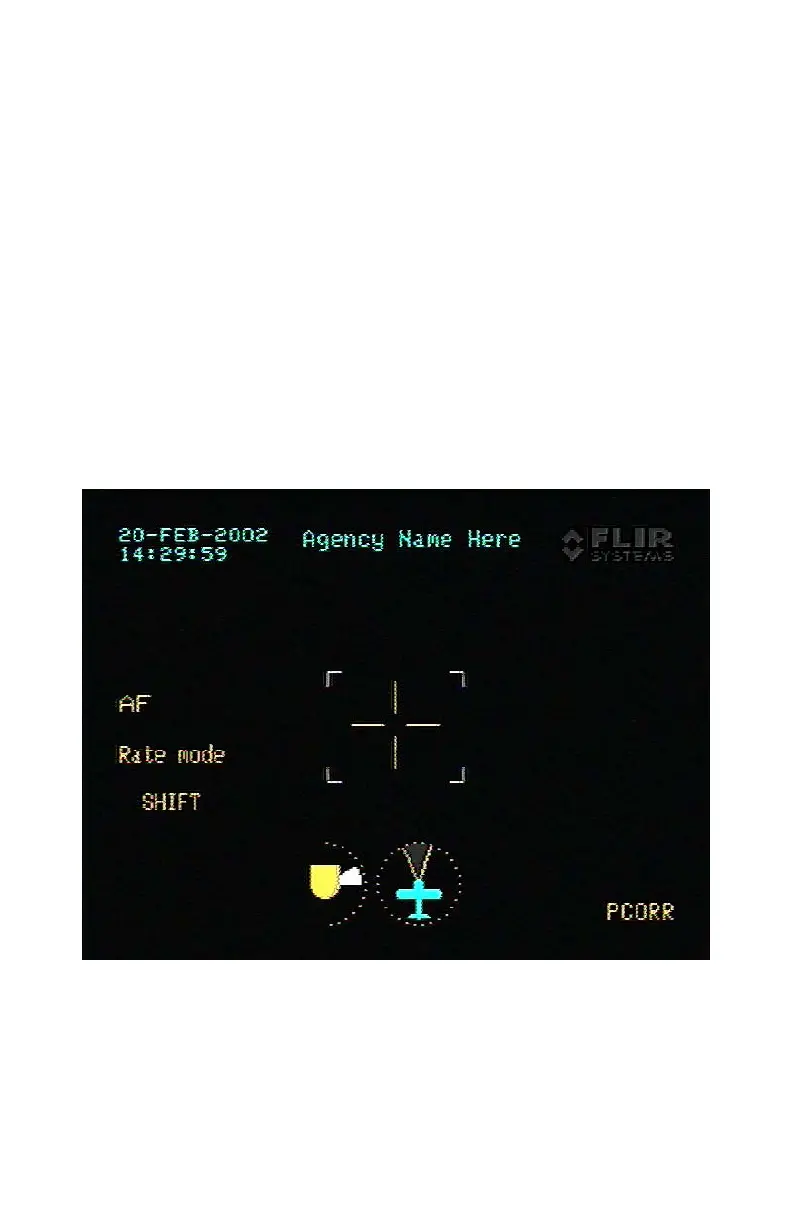

Figure 3-3. SHIFT Display
