3.2.5.1 GPS Select Menu
The GPS selection is accomplished through the GPS device Select
Menu (Figure 3-19). The default position of the GPS device is none.
However, if the host platform has a GPS device that will provide an input
to the SeaFLIR II Imaging System, use this menu to identify the make
and model of GPS device.
When no data is being provided from a GPS device, and a GPS device is
selected, the display will appear similar to that shown in Figure 3-20.
When GPS data is available, the display will appear similar to that shown
in Figure 3-21.
When GPS data is stale (over 3 seconds old), the GPS data display will
turn red and the display will appear similar to that shown in Figure 3-22.
The GPS devices supported at the time of the writing of this document
are identified in Figure 3-19. If your device is not identified, contact FLIR
customer service for assistance (978) 901-8000.

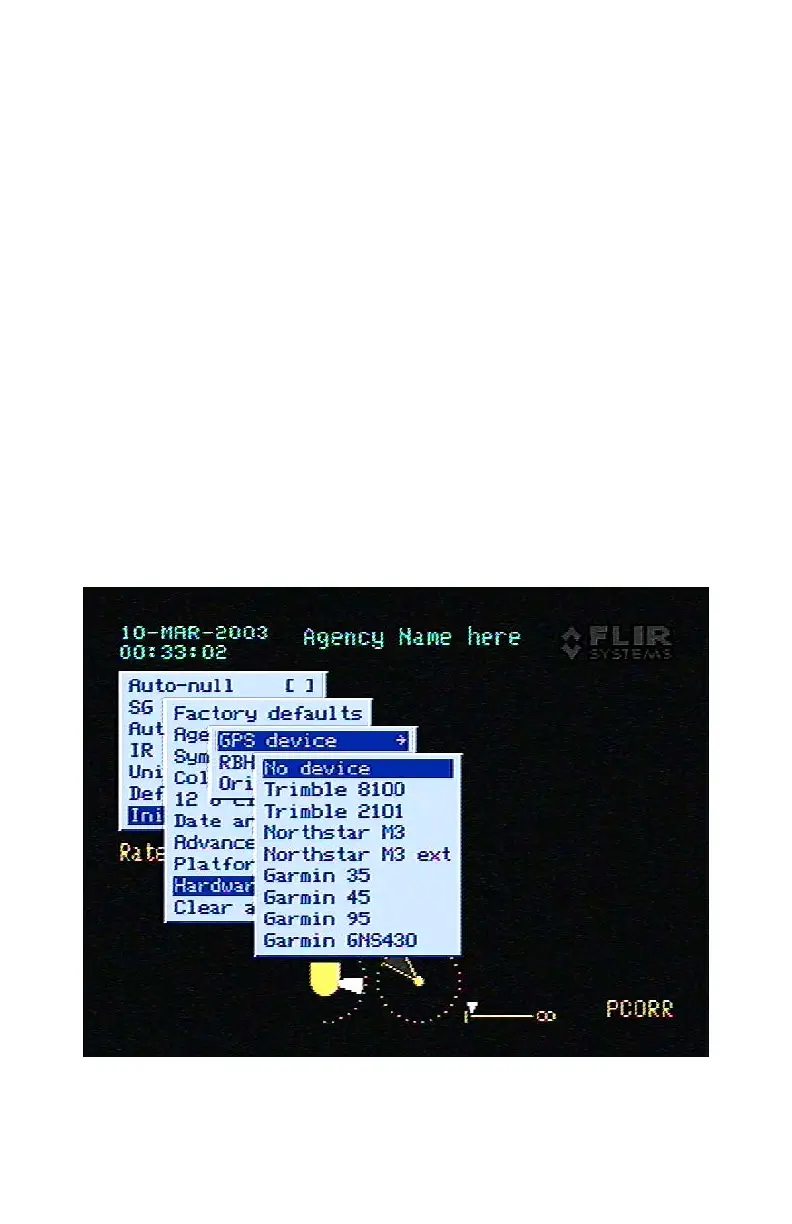

Figure 3-19. GPS Device Select Menu
