61
operator in the lower left area of the display. After selecting the SCAN
width, operator repeats “SHIFT” function to store selection.

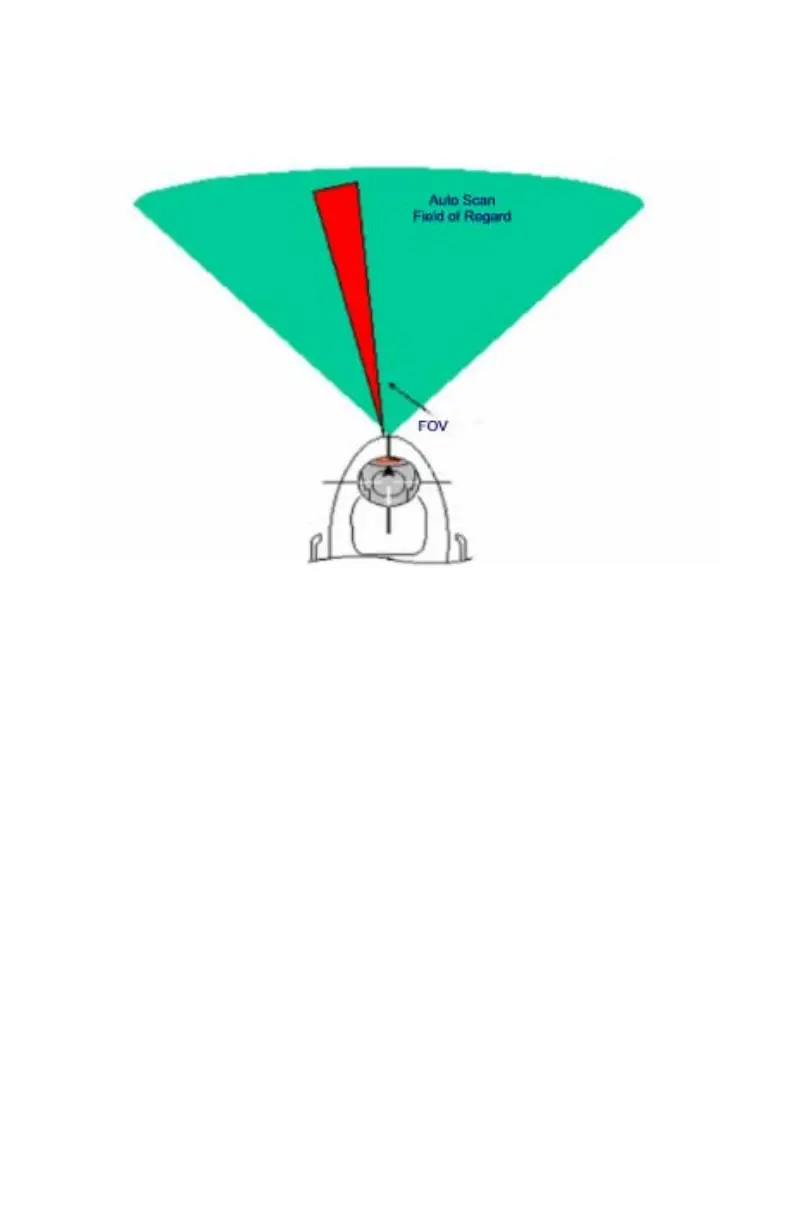

Figure 3-37. Auto-Scan Field of Regard
3.11.1 SCAN and Slew Rate
The SCAN speed control sets the scan speed for the Auto-Scan mode.
Rotate the SCAN speed control down to slow the scan speed or up to
increase the scan speed.
3.12 Viewing on the Display Monitor
NOTE:
Depending on how long the system has been operating, it
may take up to ten minutes for an IR image to appear on the
display after switching the HCU Power Switch to the ON
position and selecting the IR camera.
Several pieces of information are presented on the display to aid the
operator. Operating information including Date and time, operating
mode, GPS data, azimuth and elevation indicators as well as focus and
zoom when in use.
