3.2.5 Hardware Configuration Menu
The Hardware configuration Menu (Figure 3-18) is used to identify to the
SeaFLIR II Imaging System the GPS device installed, configure the
SeaFLIR II Imaging System to receive the host platform’s National
Maritime Electronics Association (NMEA) radar inputs for the Radar
Bearing Mode of operation.
GPS device Æ – Selects menu to identify host platform’s GPS device
and configure system for correct GPS input.
RBH device Æ – Selects menu to identify host platform’s NMEA device
and configure the SeaFLIR II Imaging System for the correct radar
inputs.
Orientation Æ – Used by the user to select gimbal orientation for the
platform the SeaFLIR II Imaging System is installed on. Set Ball up for
surface vessel. Set Ball down for aircraft.

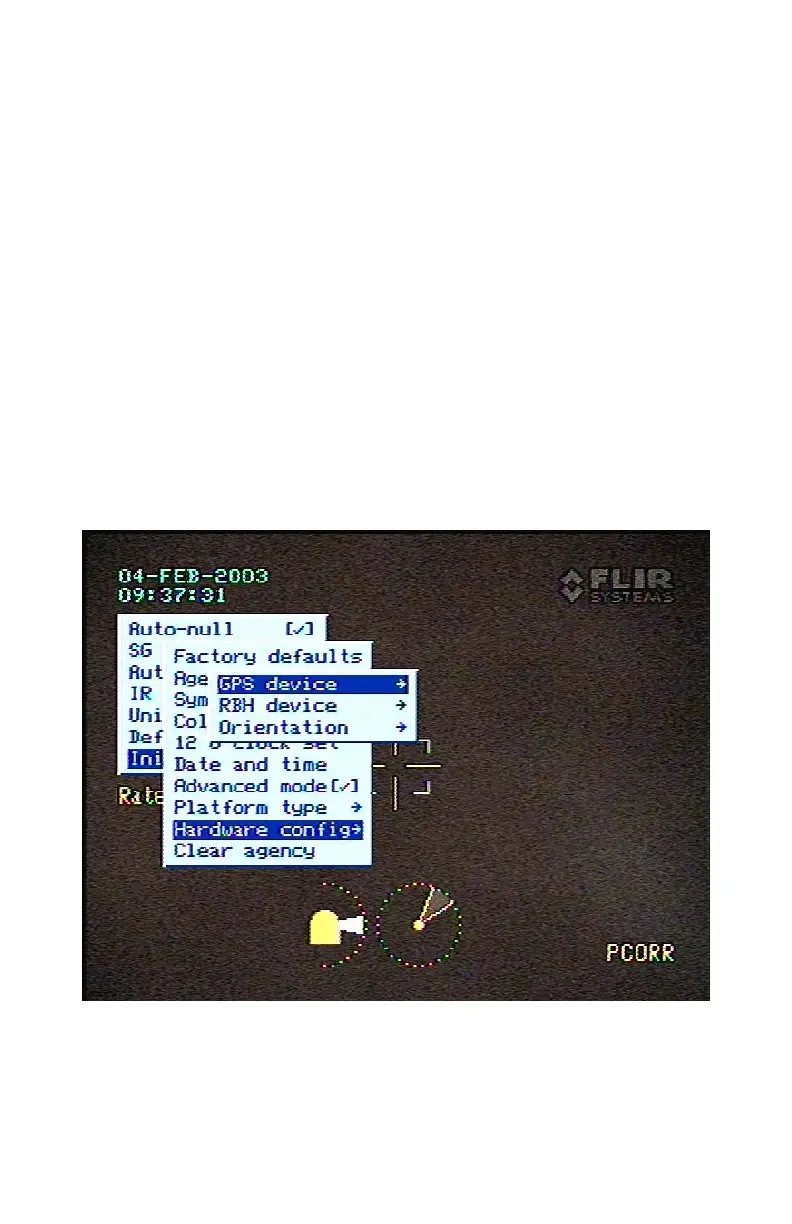

Figure 3-18. Hardware configuration Menu
