STRADA PAL – MAINTENANCE MANUAL
56/149
8.2.6 Replacing the cable passage
8.2.6.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.2.6.2 Replacement
A. Cut the cables ties (1).
B. Lift the cables to remove then from the cable guide.
C. Remove the 2 screws and the 2 washers (2).
D. Remove the cable passage (3).

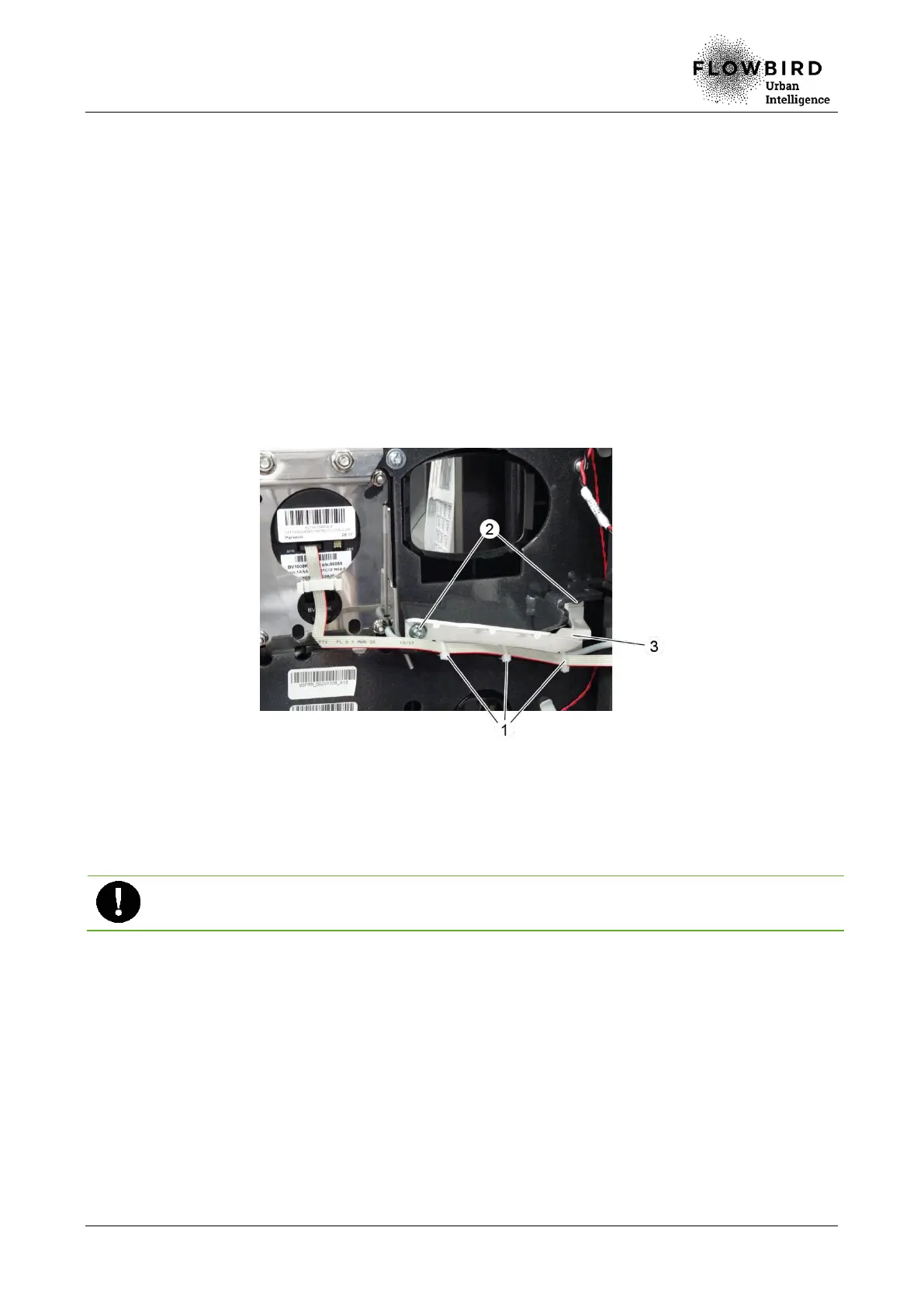

Replacing the cable passage
8.2.6.3 Installation
A. Repeat the previous steps in reverse.
Put the cables tie through the holes intended to the cable passage and then cut the extra
cables tie.
8.2.6.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
