8.3.4 Replacing the maintenance door e-lock
8.3.4.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
C. Remove the maintenance rack
8.3.4.2 Replacement

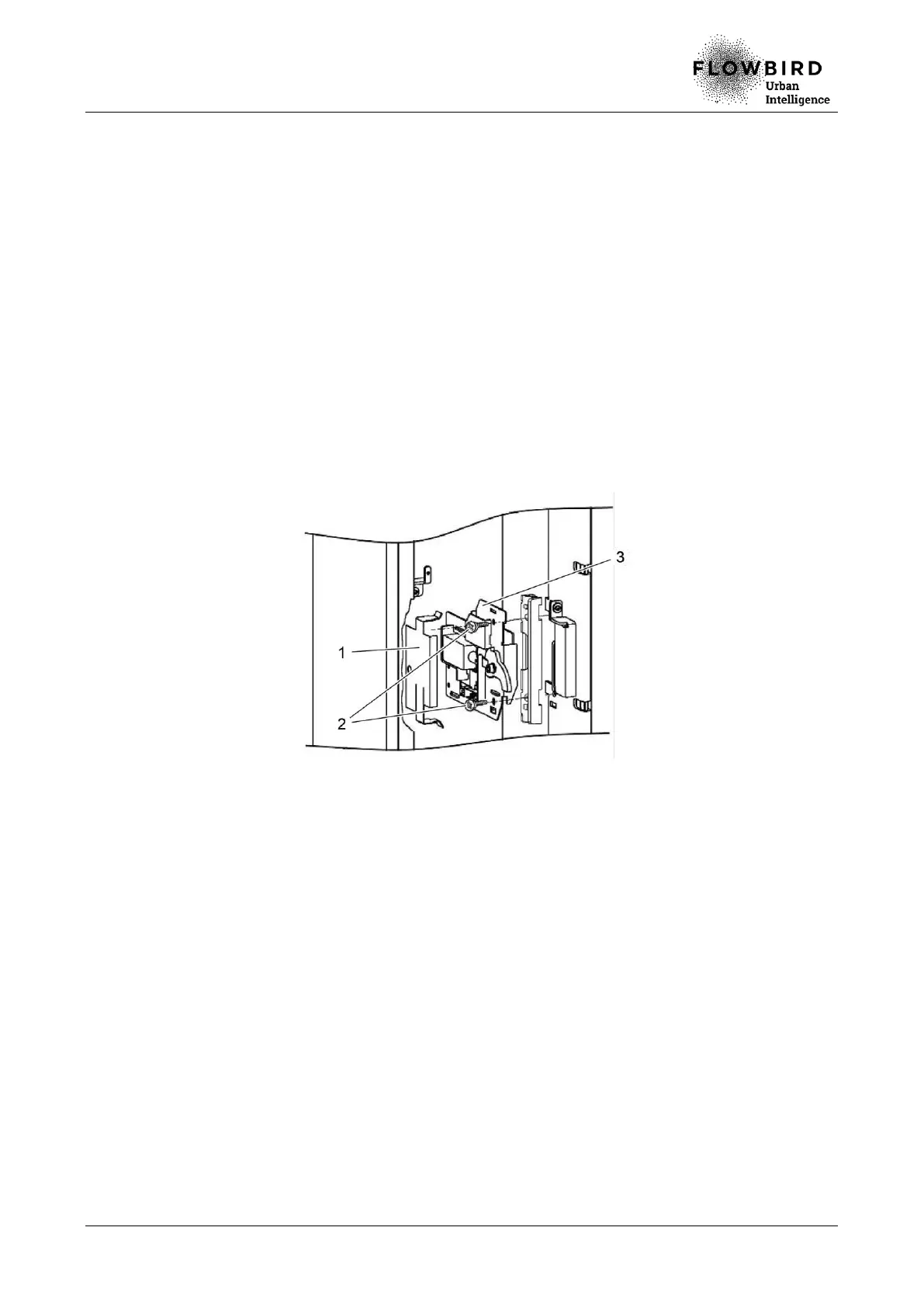

A. Unclip the locking cover (1) of the lock system: start by removing the lower part,
then the upper part.
B. Unplug the strands from the e-lock.
C. Loosen the 2 fixing screws (2).
D. Remove the e-lock (3).
Replacing the maintenance door e-lock
8.3.4.3 Installation
A. Repeat the previous steps in reverse.
8.3.4.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
