8.3.5 Replacing the protective flap of the maintenance door e-lock
8.3.5.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.3.5.2 Replacement
A. Disassemble the maintenance door e-lock

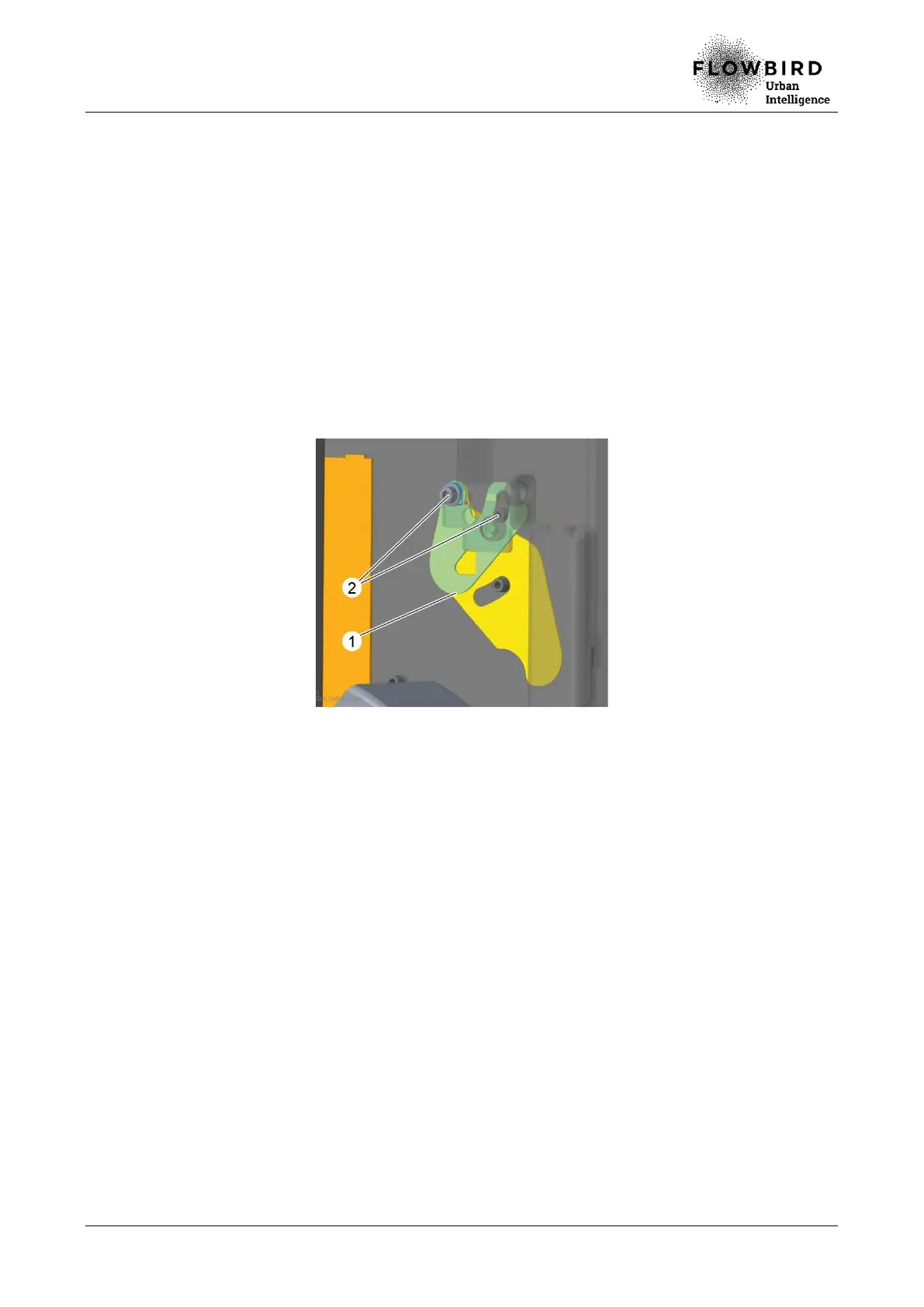

B. Loosen the 2 screws (2) that hold both parts of the protective flap (1).
C. Remove both parts of the protective flap (keep the counter spring and the 2 shims
for reassembly).
Replacing the maintenance door e-lock
8.3.5.3 Installation
A. Repeat the previous steps in reverse.
8.3.5.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
