8.4.5 Replacing the mains charger board
8.4.5.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.4.5.2 Replacement
A. Remove the main board
B. Unplug the power supply cable of the mains charger board (1).
C. Unclip the 3 clips of the mains charger board that hold it on the main board.

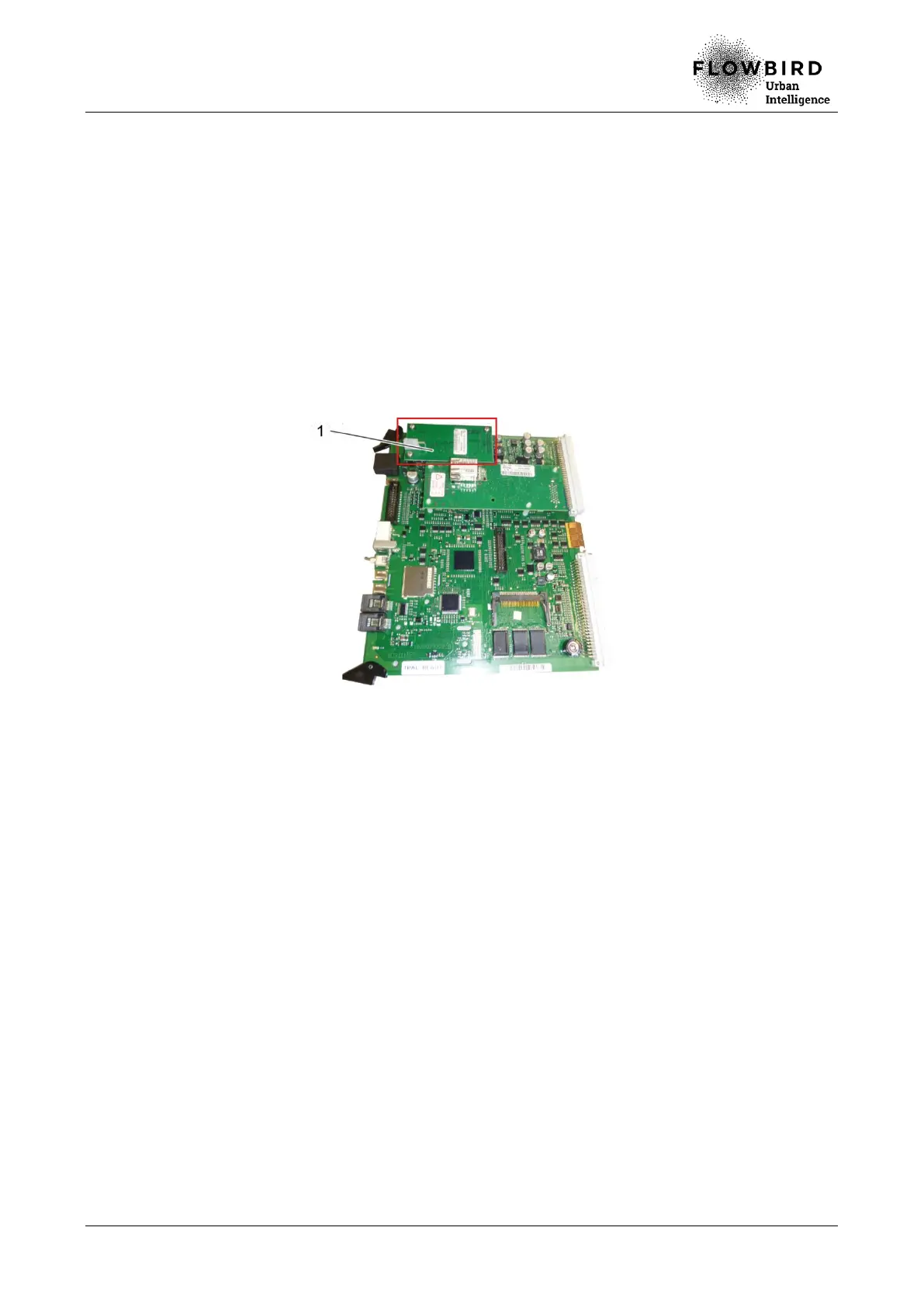

Replacing the mains charger board
8.4.5.3 Installation
A. Repeat the previous steps in reverse.
8.4.5.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
