Logix
®
3200MD+ Digital Positioners FCD LGENIM0110-0 05/16
flowserve.com 27
20.5 Connections for Intrinsically Safe
Operation
See section 17 HAZARDOUS AREA CERTIFICATIONS for
entity parameters and control drawing reference.
21 STARTUP
21.1 Quick Start Instructions
Once the positioner is installed, adjusting the DIP switch
settings and performing a Quick-Cal function will typically
get the positioner working properly. This simple procedure
takes only seconds for most valves.
1 Using the Configuration Switches, select the desired
configuration.
2 Hold the Quick-Cal button for 3 seconds. This will
initiate a stroke calibration.
After the stroke calibration is complete, the positioner is
ready for control.
CAUTION: During the QUICK-CAL operation the valve
may stroke unexpectedly. Notify proper personnel that the
valve will stroke, and make sure the valve is properly
isolated.

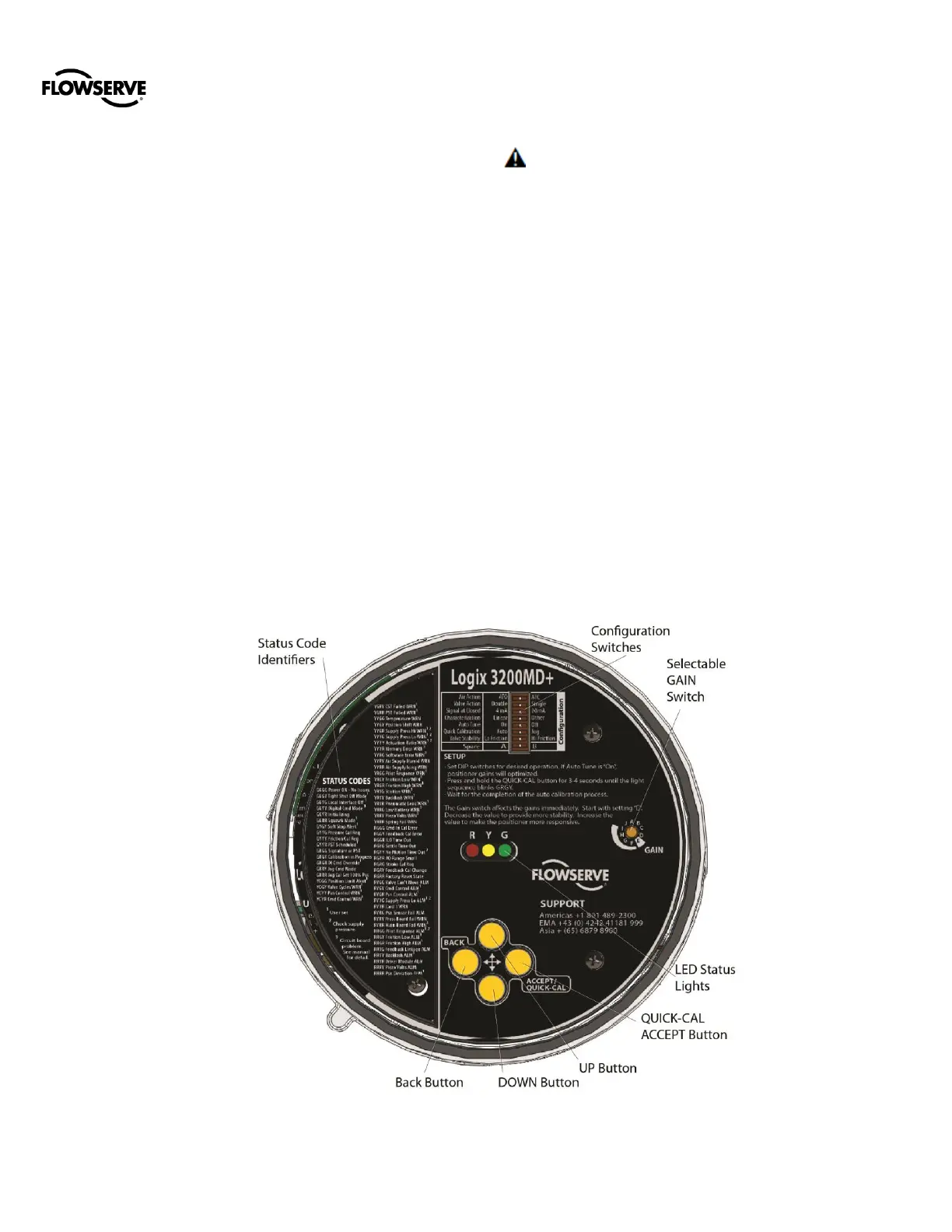

21.2 Local User Interface Overview
The Logix
®
3200MD+ local user interface allows the user to
calibrate, configure the basic operation, and tune the
response of the positioner without additional tools or
configurators. See Error! Reference source not
found.25.
Configuration Switches (8) – Used to set basic
configuration. See explanations in section 0
Configuration Switch Settings.
Interface Buttons – Used to calibrate the positioner,
perform special functions and navigate the display menu.
o ►QUICK-CAL / ACCEPT
o ▲Up
o ▼Down
o ◄Back
Selectable GAIN Switch (Rotary) – Used to manually
fine-tune the performance.
LED Indicators (Red, Yellow, and Green) – Indicate
status, alarms and warnings.
