Chapter 3: Operation
Connect the Hyperion Tissue Imager to Helios
26 Hyperion Imaging System: User Guide

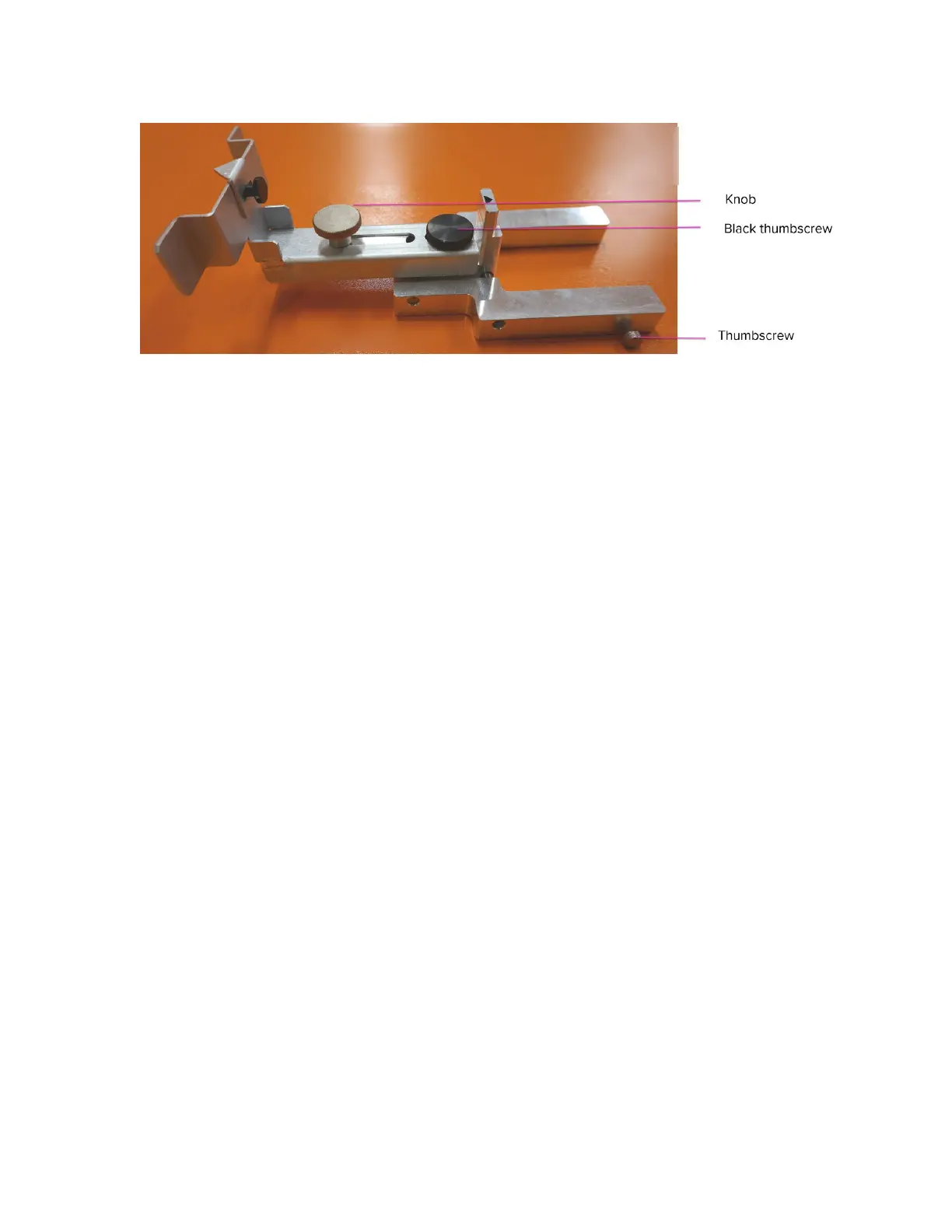

6 Carefully slide the alignment tool onto the heater guide pins of Helios, ensuring that the
back of the tool is flush against the Torch Assembly. Secure the tool in position with one
hand and tighten the right-side thumbscrew.
