Chapter 3: Operation
Connect the Hyperion Tissue Imager to Helios
30 Hyperion Imaging System: User Guide

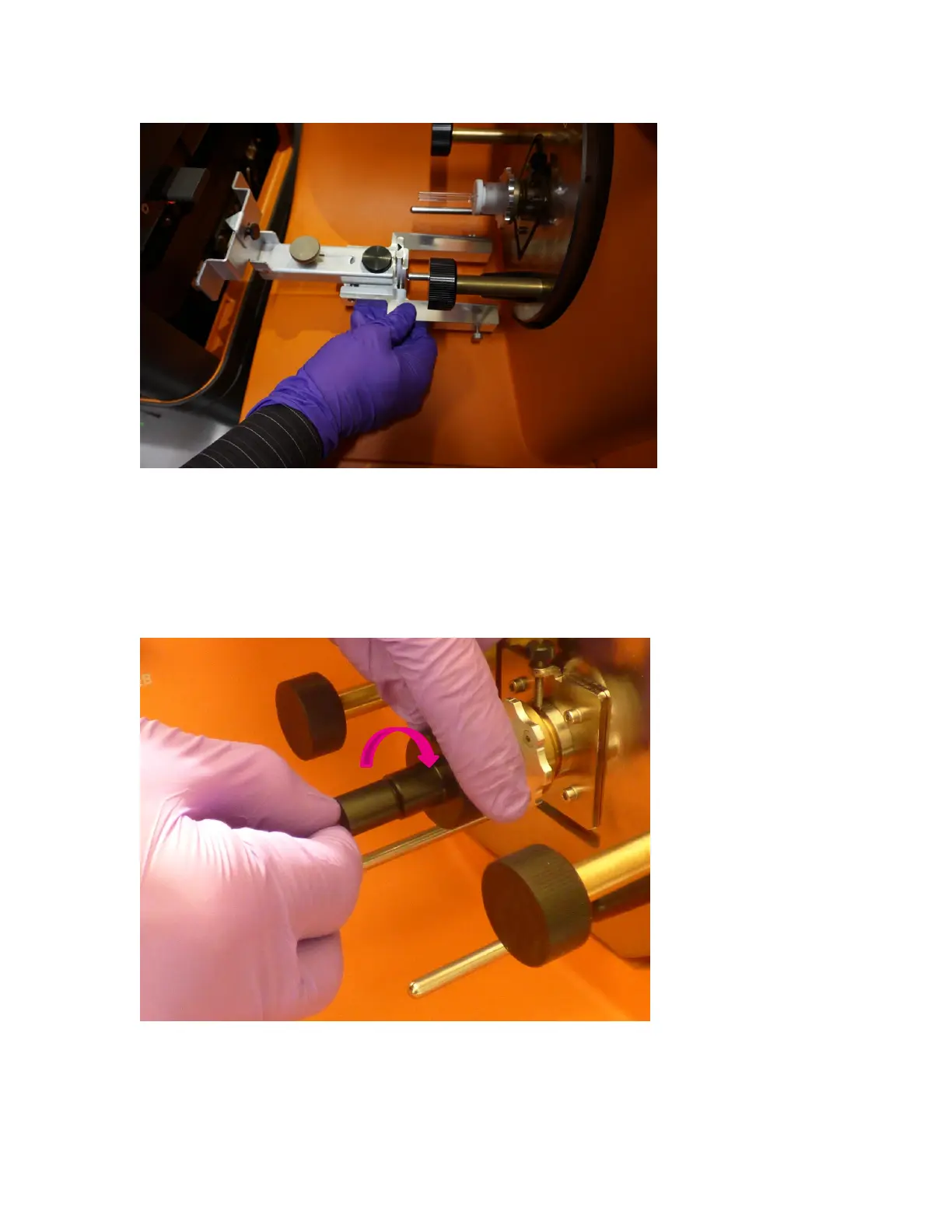

16 Position the Hyperion Tissue Imager in front of Helios so that the Helios Injector aligns
with the connection opening in the ablation chamber on the Hyperion Tissue Imager.
17 Slide the Injector fitting over the back end of the injector in Helios. Grip the back nut
with one hand while tightening the Injector fitting in the clockwise direction.
NOTE Do not grip the coupling tube. Gripping the tube may result in damage.
18 Lower the instrument to the ground using the wheel retraction switch so that it is ready
for operation. The alignment should be both vertical and horizontal so that the output of
the ablation chamber lines up with the coupling tube and Injector.
