Chapter 3: Operation
Connect the Hyperion Tissue Imager to Helios
Hyperion Imaging System User Guide
31

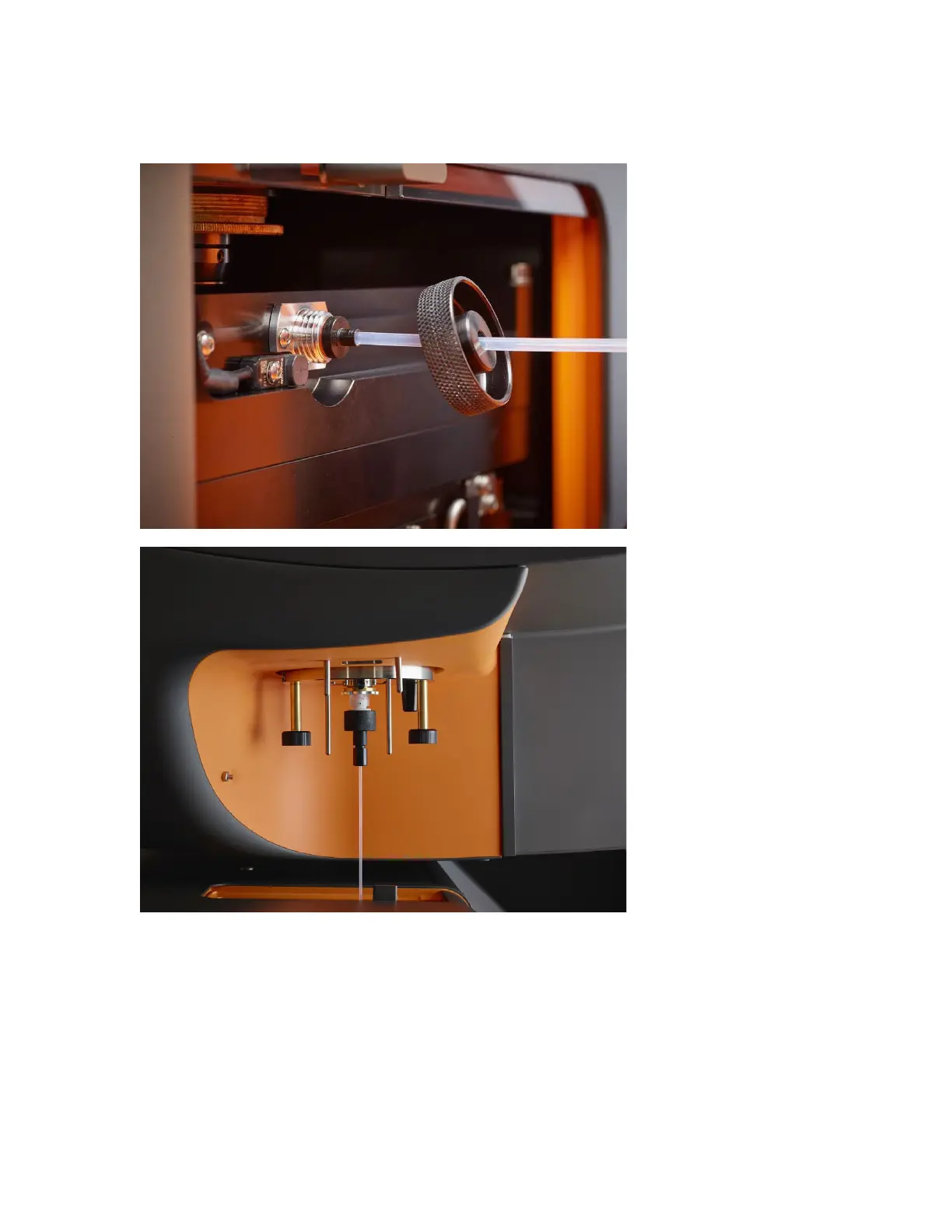

19 Insert the coupling tube end into the coupling attachment in the ablation chamber.
IMPORTANT The tube must be as straight as possible. If the tube is not straight then
raise the instrument up using the wheel retraction switch so that the castors are
exposed, and adjust the instrument position. Check that the tube is fully inserted. Lower
the instrument back to the ground for operation. Check that the tube is correctly
positioned as straight as possible.
