Chapter 4: Maintenance
Periodic Maintenance
Hyperion Imaging System User Guide
51

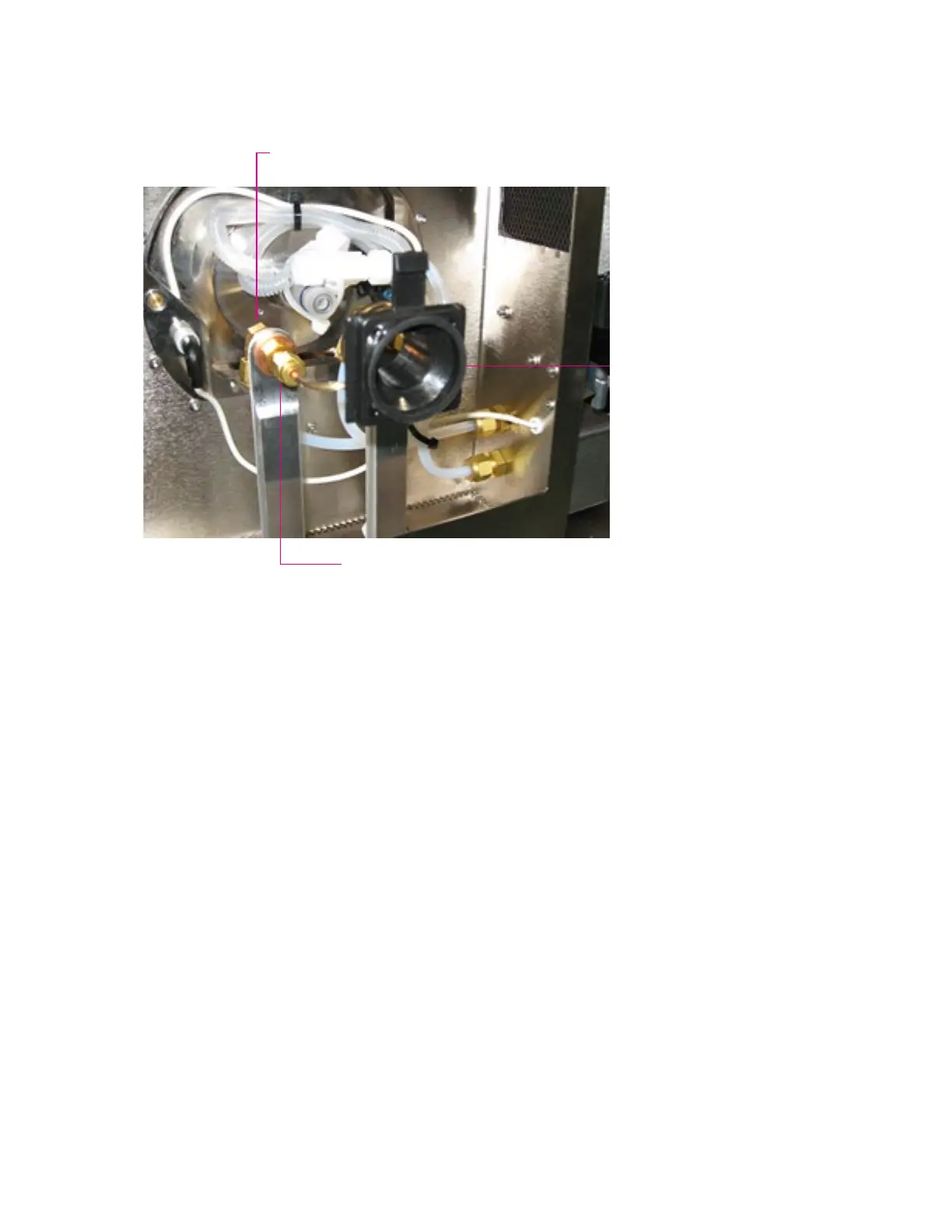

Nut s to loosen
Nut s to apply
counterforce
Load coil core
8 Remove the load coil core. Examine the new load coil and make sure that the coils are
equally spaced. Also ensure that the arms of the coil are straight and aligned.
9 Replace the front shield and fasten the four clips.
10 Reinstall the torch assembly. Check the alignment of the torch with the load coil (refer to
the appropriate steps in the cleaning and maintenance section if necessary). See the
Helios User Guide (PN 400250) for the Z-alignment Adjustment procedure.
