Fluke 120B Series User Manual

Industrial ScopeMeter®
Scope and Meter Mode
33
Vertical Cursors
Use vertical cursors to measure the time difference “t”
between the cursors and the voltage difference between
the two markers.
To use the cursors for a time measurement:
1. Push 3 to select CURSOR ON.
2. Push 1 to select . Observe that two vertical
cursor lines are shown on the screen. Markers (-)
identify the point where the cursors cross the
waveform.
3. Push 2 to select the left cursor.
4. Use
WX to move the position of the left cursor on the
waveform.
5. Push 2 to select the right cursor.
6. Use
WX to move the position of the right cursor on
the waveform.

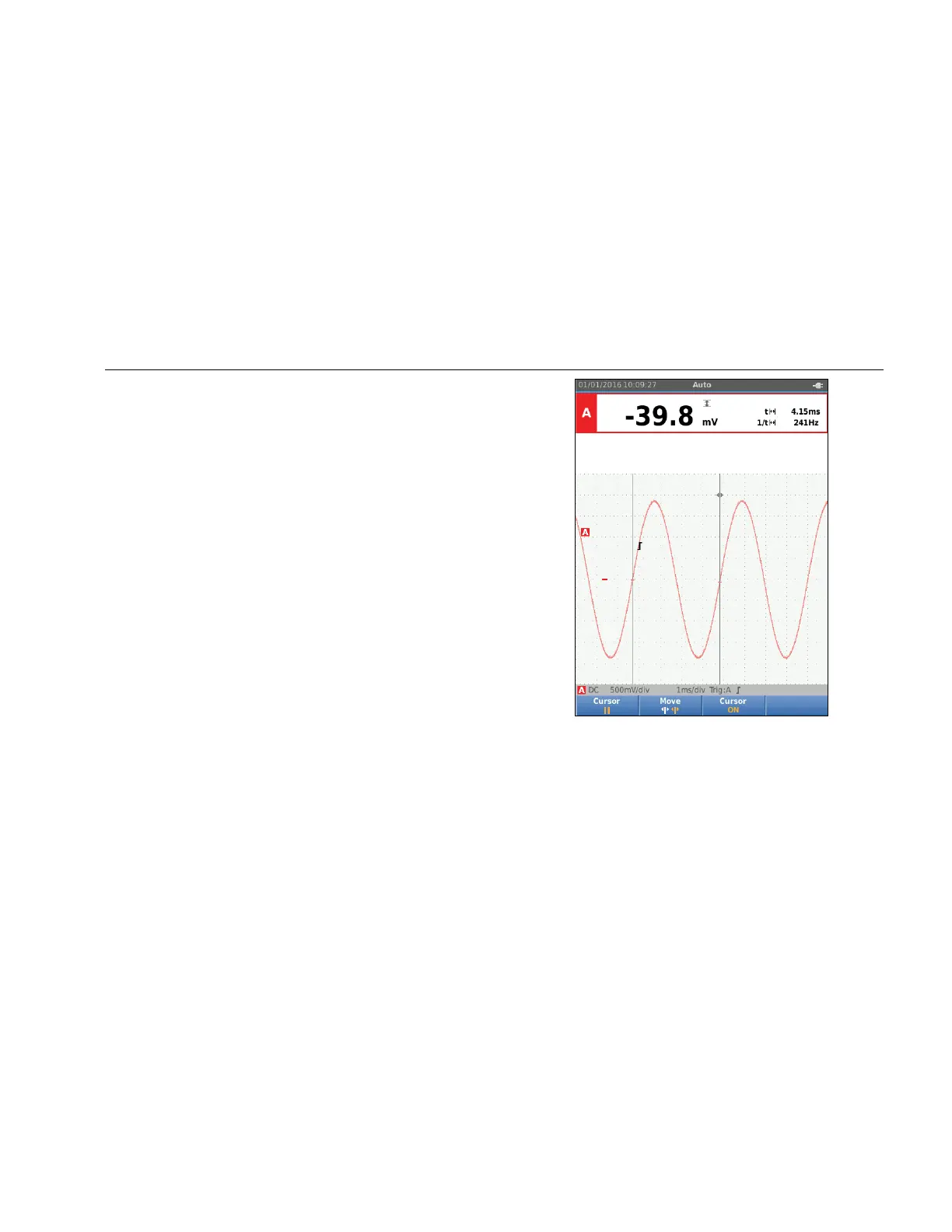

hxv24.eps
